ENGINE
2.4

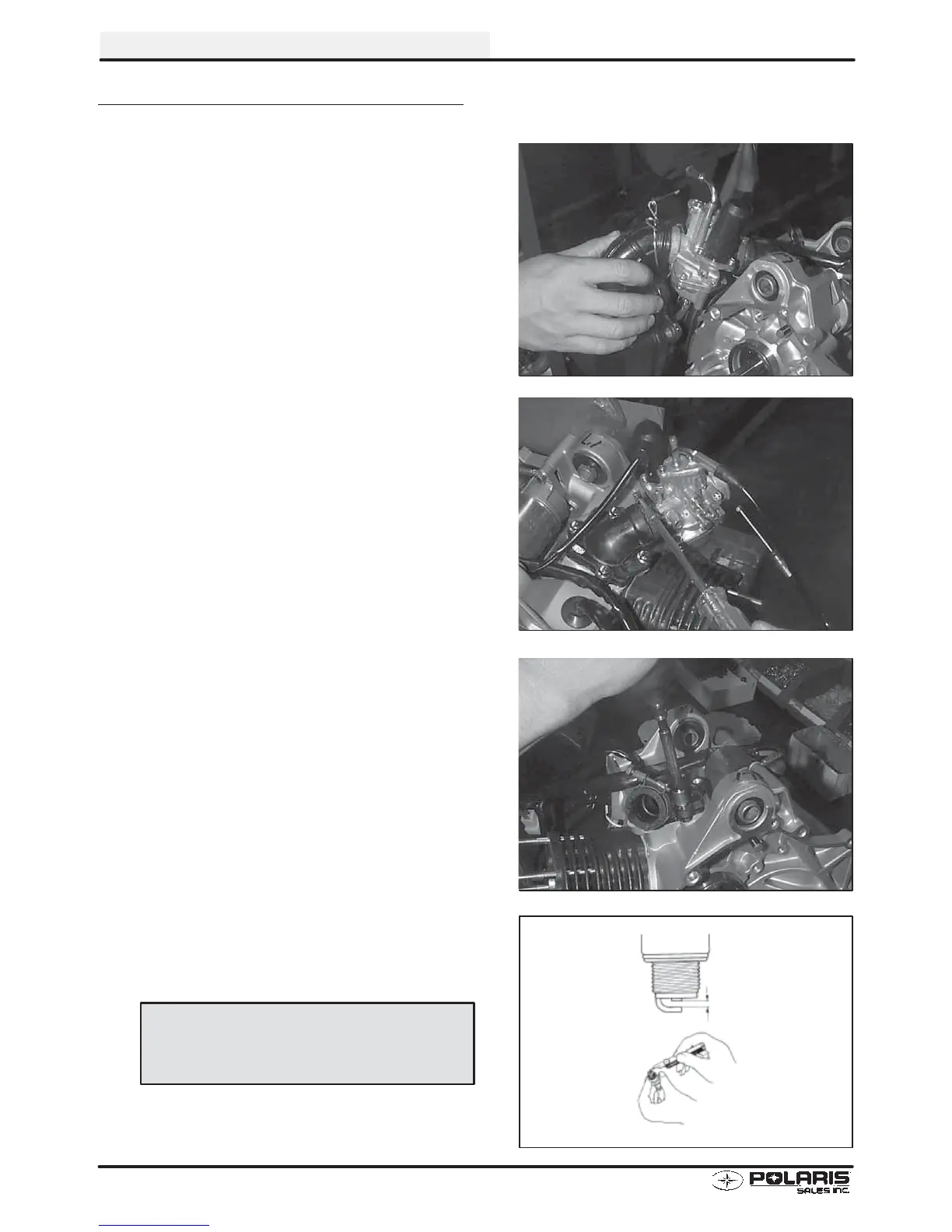

ENGINE DISASSEMBLY, CONT.
Inlet and Fuel System
5. Slide air box-to-carburetor air clip out of the way and
remove air duct.
6. Loosen carburetor adaptor screw and remove
carburetor.
7. Remove bolts securing the intake manifold.
Remove intake manifold and reed valve.
NOTE:Remove any remaining gasket material from the
reed valve housing and crankcase. Always replace the
reed valve gasket when removing.
NOTE:Check the condition of the reed. If petals look
damaged in any way, replace.
Muffler, Cylinder and Cylinder Head
8. Remove spark plug. Check the electrode for carbon
and wear. Spark plug gap should be .024-.028″
(.6-.7 mm).
Spark Plug Gap:
024-.028I (.6-.7 mm)
