ENGINE
2.22
ENGINE ASSEMBLY

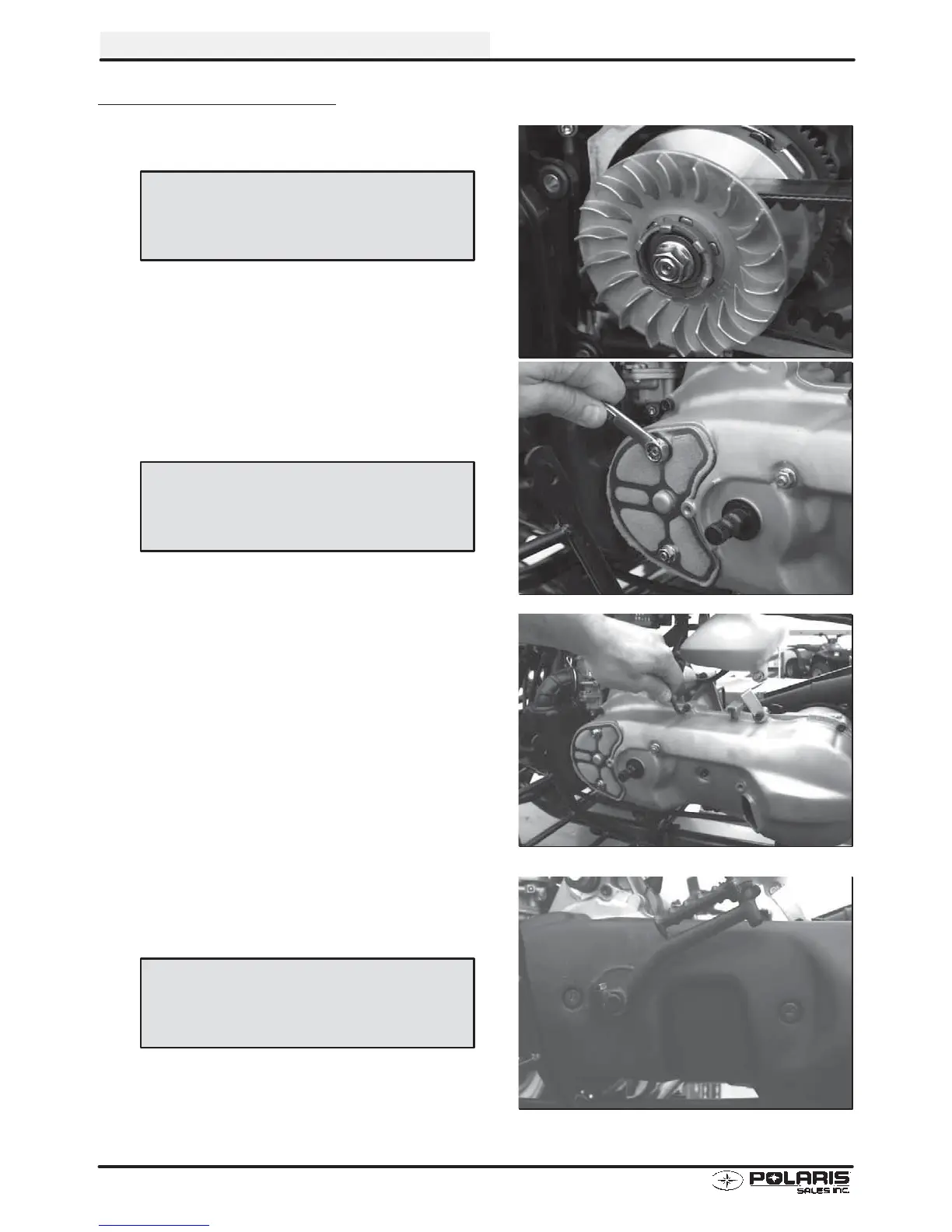

18. Install drive clutch bolt and torque to specification.
19. Install new gasket, bolts, grommets, protectors,
filter and install carburetor tube bracket and
crankcase cover (Sportsman 90 and Scrambler 90).
Torque cover bolts to specification.
20. Install new gasket, bolts grommets, protectors,
filter, and install carburetor tube bracket and cover
(Scrambler 50). Torque cover bolts to specification.
Drive Clutch Nut Torque:
29 ft.lbs. (39 Nm)
Transmission Cover Bolt Torque:
84 in.lbs. (9.5 Nm)
Transmission Cover Bolt Torque:
84 in.lbs. (9.5 Nm)
