BODY / STEERING / SUSPENSION
4.11

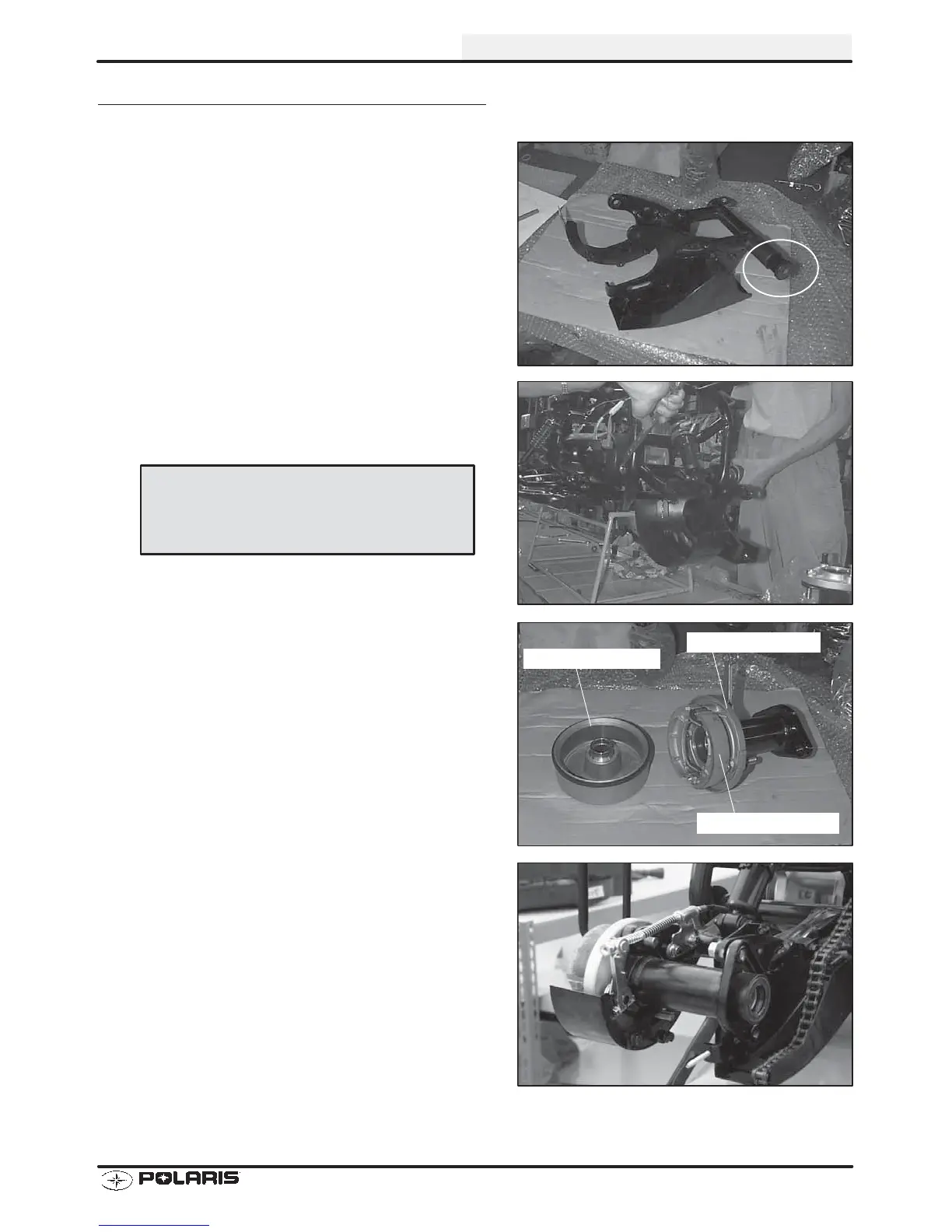

REAR BRAKE AND AXLE, CONT.
1. Apply grease to the swing arm spacer tube. The
swing arm assembly must be mounted first.
NOTE:
The swing arm assembly includes chain protec-
tor.
2. Install the swing arm to the frame and tighten the
mounting bolt to specification. Install rear shock
and spring. Tighten shock mounting bolts to
specification.
3. Inspect the protective rubber gasket on the rear
brake drum for damage. Replace if needed.
Mount the rear brake plate, shoes, and springs on
the bearing carrier. Install the brake drum.
4. Install the rear axle bearing carrier and rear brake
assembly on swing arm.
Swing Arm Mounting Bolt Torque:
26-30 ft.lbs. (36-40 Nm)
Rear Shock Mounting Bolt Torque:
25 ft.lbs. (35 Nm)
Rear Brake Plate
Rear Brake Shoes
Rear Brake Drum
