BODY / STEERING / SUSPENSION

4.12

REAR BRAKE AND AXLE, CONT.

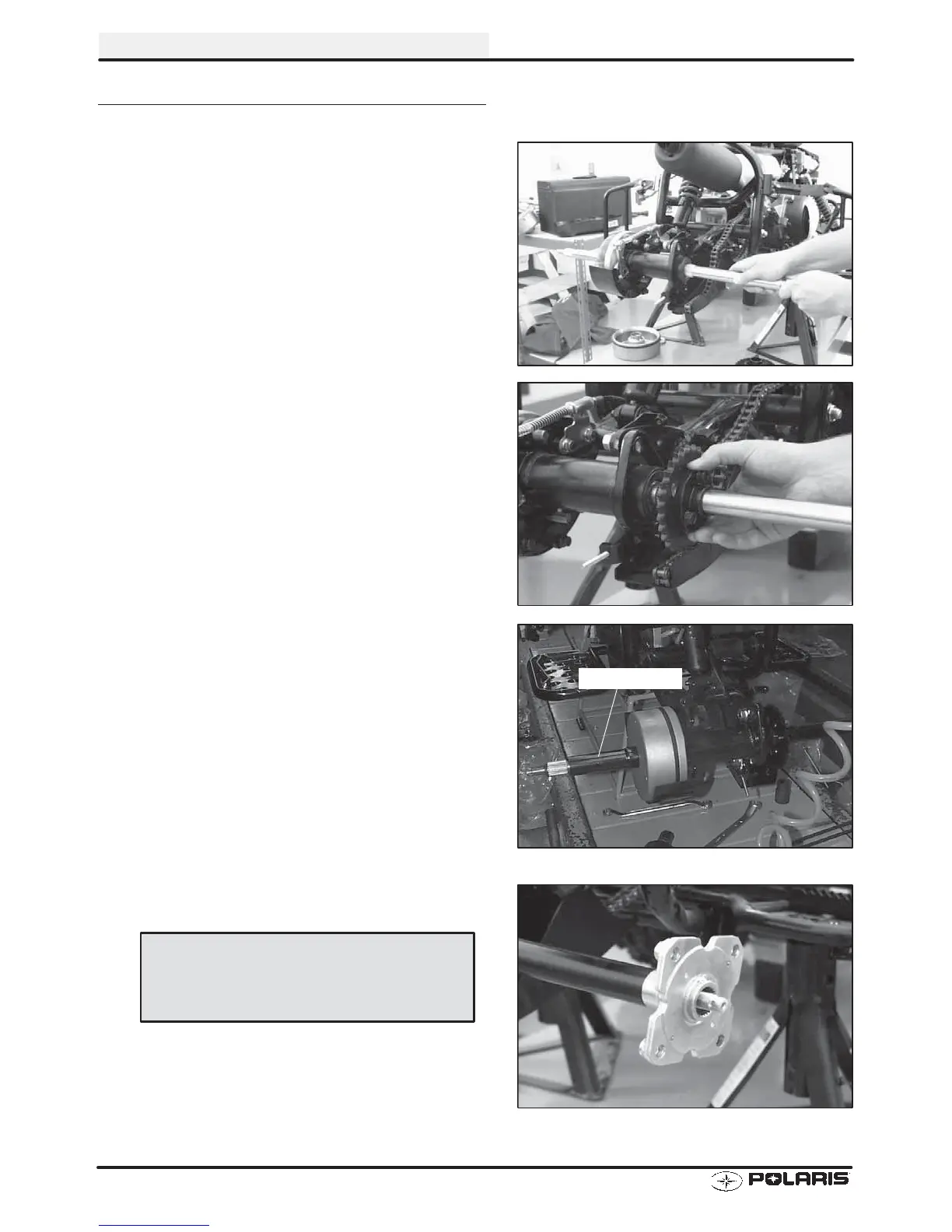

5. Install rear axle. Tighten the bolts until snug. The

rear axle bearing carrier needs to be adjusted for

chain tension. Do not tighten to specified torque at

this time.

6. Install the drive sprocket on the rear wheel axle.

7. Install the right and left spacer tube on the rear

wheel axle.

8. Install the wheel hub and tighten axle nut to

specification.

Spacer Tube

Axle Nut Torque:

78-81 ft.lbs. (108-112 Nm)
