BODY / STEERING / SUSPENSION
4.13
REAR BRAKE AND AXLE, CONT.

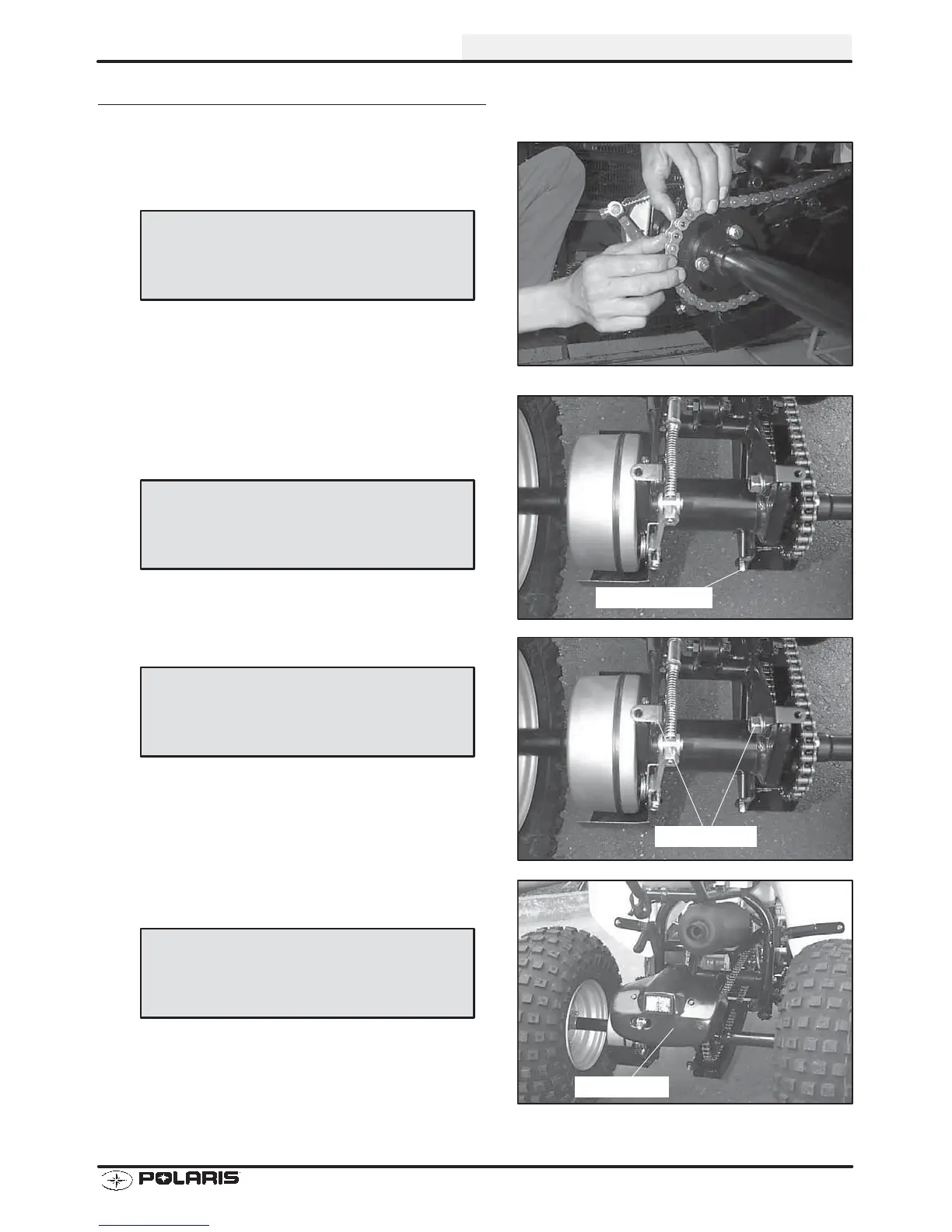

9. Install rear brake cable on brake arm.
10. Install chain on drive sprocket and tighten
sprocket bolts to specification.
11. Set the chain tension to specification by loosening
the lock nuts on the chain adjuster. Turn the
adjuster until the chain tension is set. Tighten the
adjuster nuts.
12. Tighten all bearing carrier bolts to specification.
13. Install the rear cover. Torque bolts to
specification.
Sprocket Bolt Torque:
18 ft.lbs. (25 Nm)
Chain Adjuster
Chain Tension Specification:
.40-.80″ (10-20 mm) slack
Chain Tensioner Nut Torque:
84 in.lbs. (10 Nm)
Carrier Bolts
Carrier Bolts
Bearing Carrier Bolt Torque:
43 ft.lbs. (60 Nm)
Rear Cover
Rear Cover Bolt Torque:
84 in.lbs. (10Nm)
