THE PERFECT FIT
IQ Rear Suspension Adjustments
Rear Torsion Spring Tension
To adjust rear torsion spring tension, rotate the three-position cam
using the engine spark plug tool. Different rate torsion springs are
available i f a firmer ride is desired. Contact your dealer for more
information.
The following information is provided only as a guideline to be used
for initial suspension set-up. Your set-up may vary based on your
desired riding style.
1 - Turn the knob toward the “S” for a softer ride
Turn the knob toward the “H” for a stiffer ride

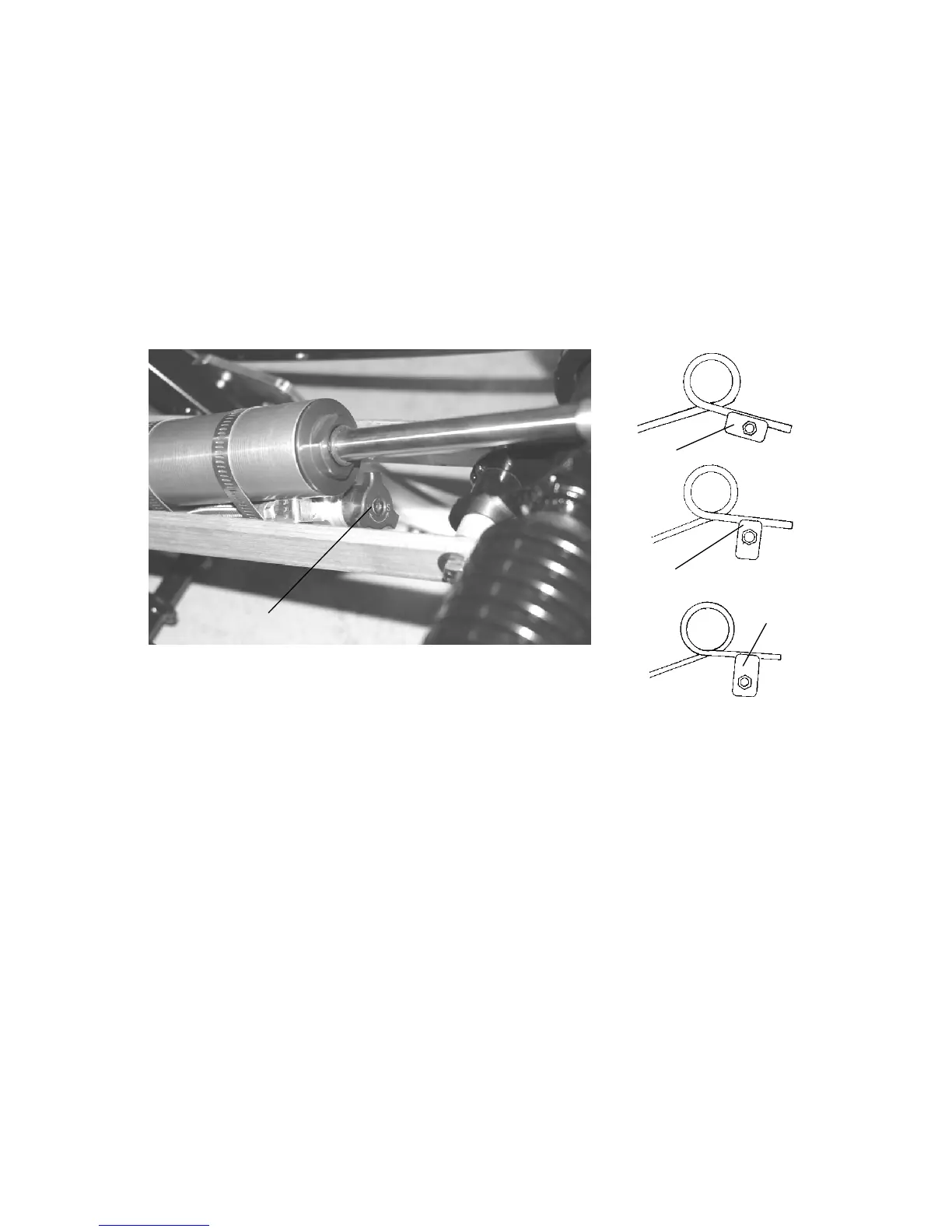

2a -Soft Tension - long end of cam to front
2b -Medium tension - short end of cam up
2c -Firm tension - long end of cam up
2b
2a
2c
1
