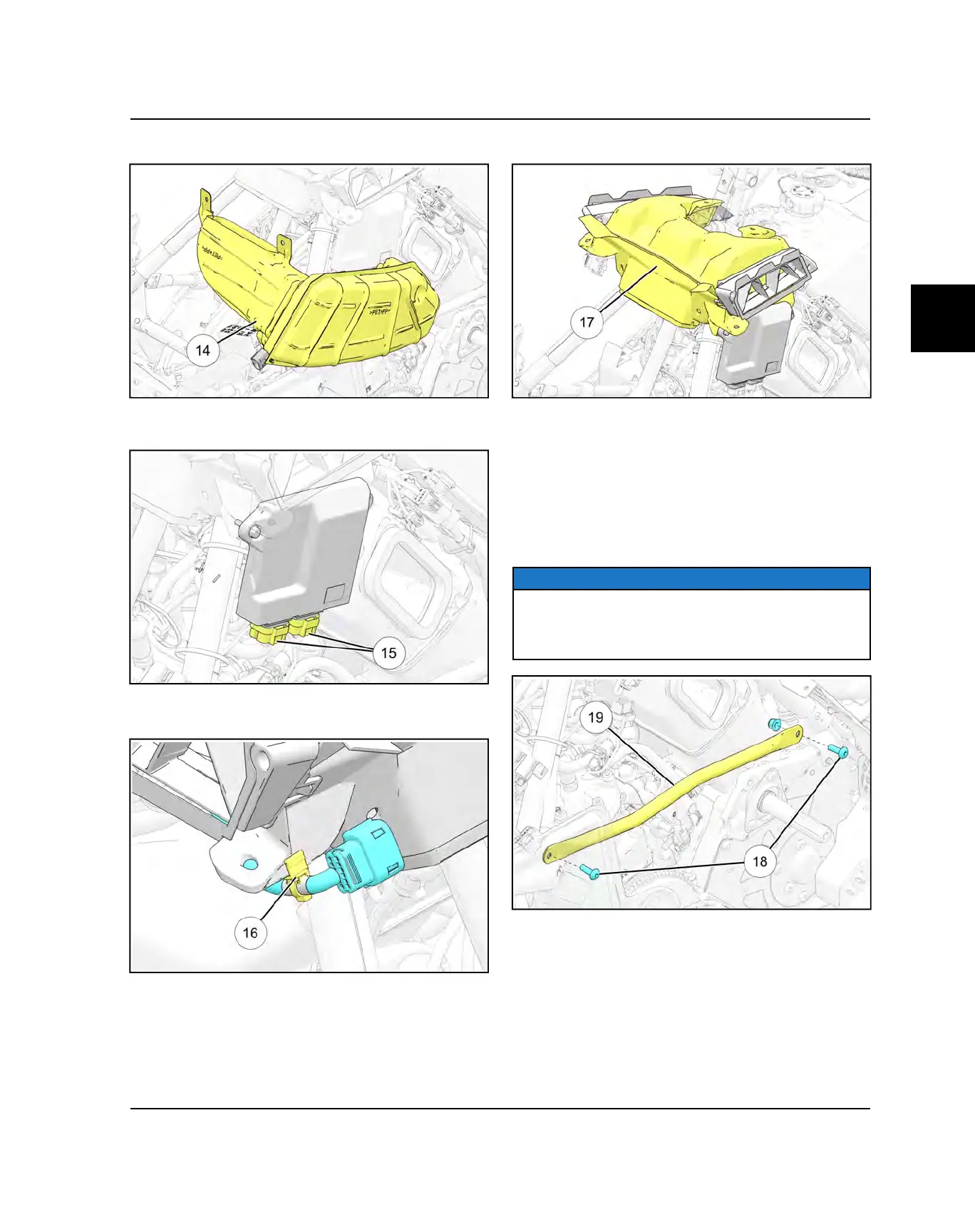

19.Carefully remove the intake tube assembly
g
.
20.Disconnect the ECU connectors
h
from the wiring
harness.
21.Remove the edge clip
j
retaining the wiring harness
to the intake plenum.
22.Carefully remove the intake plenum assembly
k
.
23.Remove the drive belt, drive clutch and driven clutch.
See the following procedures for removal:
• Drive Belt Removal page 2.24
• Drive Clutch Removal page 7.14
• Driven Clutch Removal page 7.26
24.Remove the fasteners
l
retaining the PTO side
cross brace
1(
. Remove the PTO side cross brace.
NOTICE
The PTO side chassis cross brace can either be
removed completely or remove the back bolt only and
swing the tube forward. This makes air box removal
much easier.
