50.The throttle body may remain installed on the engine.
If the throttle body removal is required, remove the
following components:
• Coolant hoses from the throttle body
• Zip tie and routing clips securing the fuel injector
harness to the throttle body
• Loosen the two gear clamps

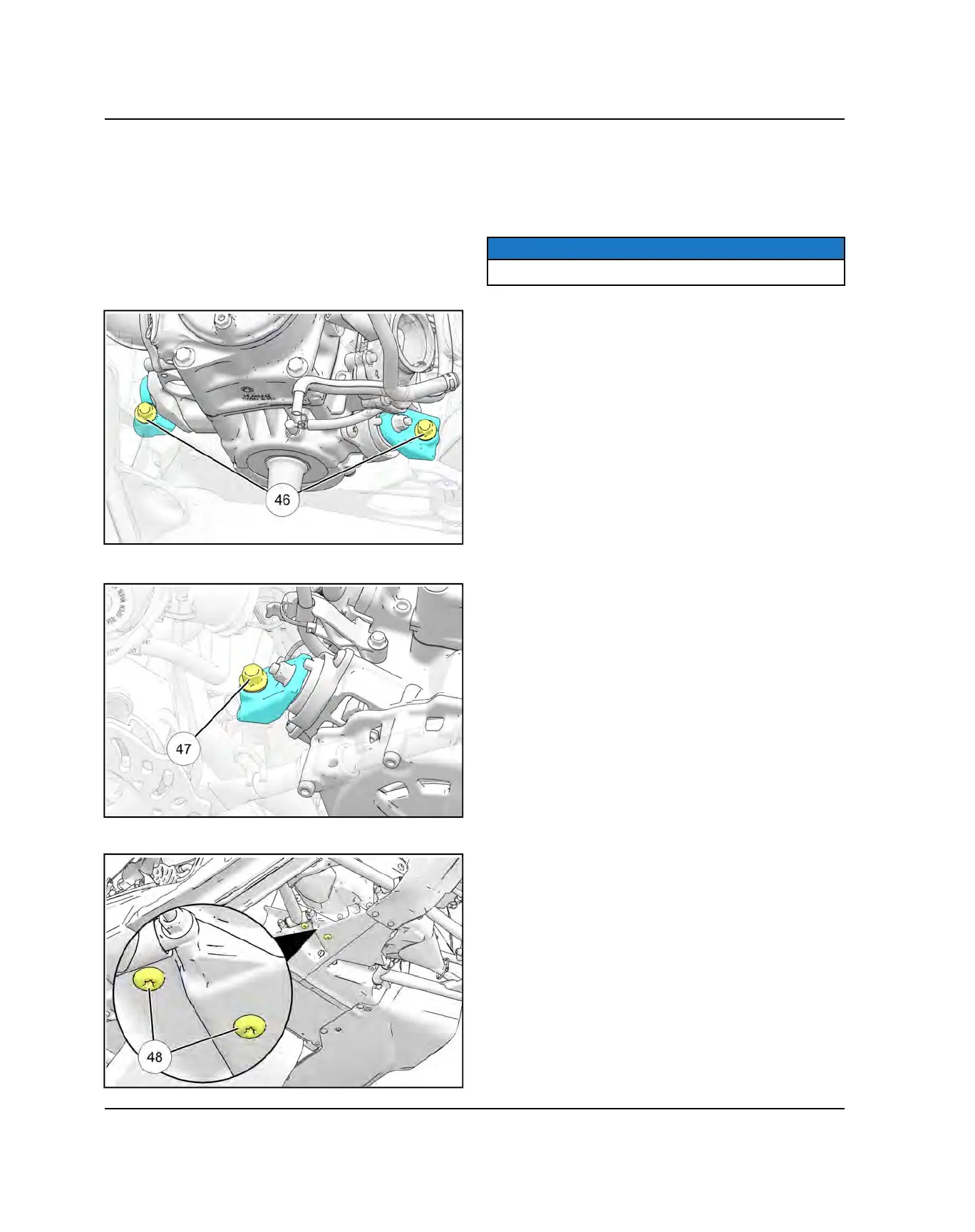

51.Remove the left side engine mounting bolts
4^
.
52.Remove the right rear engine mounting bolt
4&
.
53.
54.Lift oil pump out of bracket as it needs to come out
with the engine.
55.The engine can now be removed by lifting the intake
side of the engine up. Pull the engine up and back
slightly and remove it on the PTO side of the chassis.
NOTICE
Have an assistant help lift the engine.
