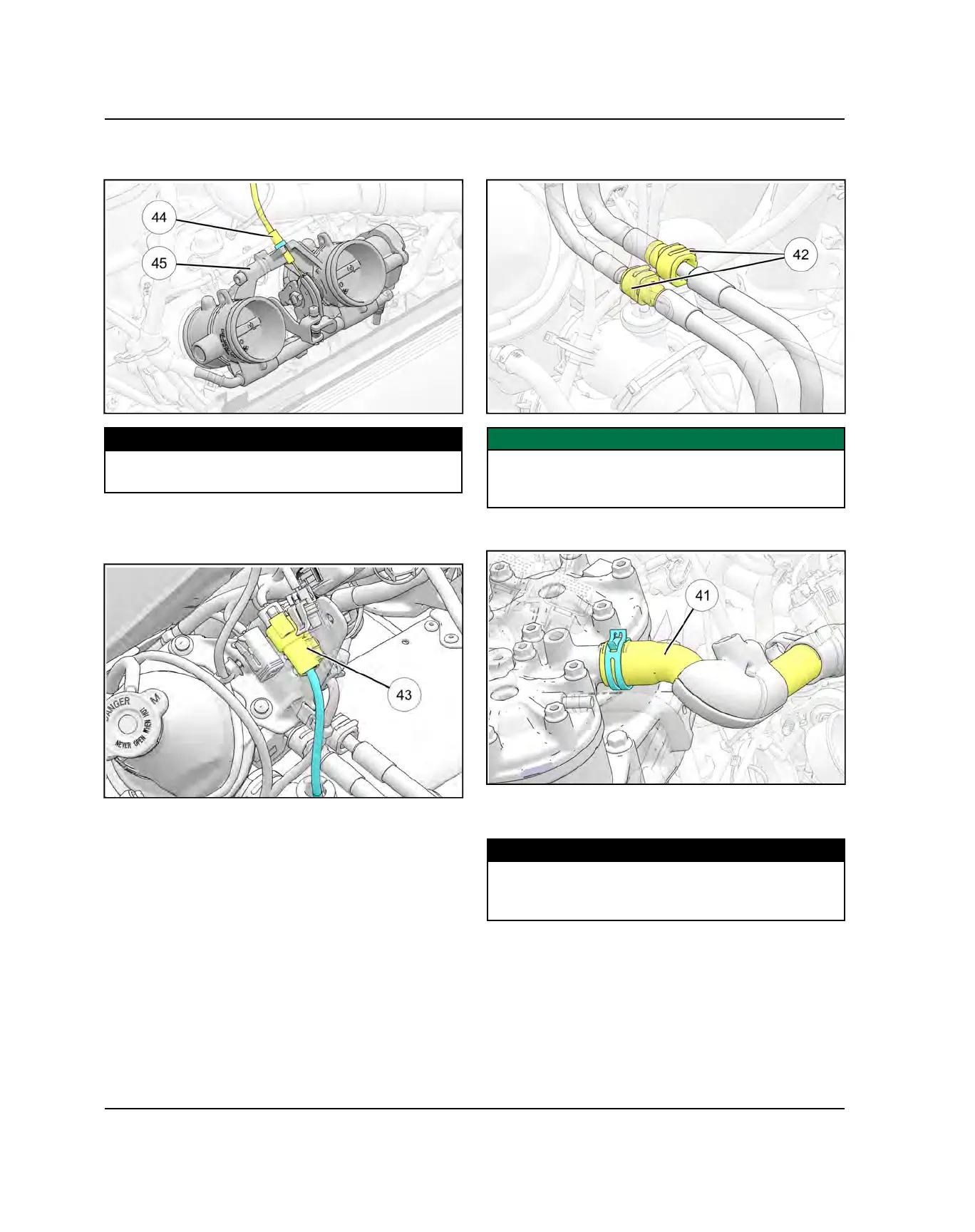

9. Connect the throttle cable
4$
and secure the cable
onto the throttle body
4%
.
TORQUE
Throttle Cable Lock Nut:
44 in-lbs (5 N·m)
10.Connect the TPS sensor connector
4#
to the wiring
harness and install on the connector placement
bracket.
11. Connect the fuel lines
4@
on the mag side of the
engine by latching the disconnect locks on the lines.
IMPORTANT
Perform a push/pull test on the fuel line connections
with at least 5 lbs. of force. Connections should NOT
disengage during push/pull test.
12.Install the coolant hose
4!
onto the cylinder head.
13.If the water pump cover was removed, install it at this
time.
TORQUE
Water Pump Cover Fasteners:
9 ft-lbs (12 N·m)
Torque in sequence page 3.50
14.Install the coolant line(s) on the water pump housing
cover.
15.If the vehicle is equipped with electric start install the
starter motor, pinion / pinion bracket assembly, and
flex drive. See Starter Motor / Flex Drive Installation
page 10.92.
