16.If removed, install the exhaust manifold.
TORQUE
Exhaust Manifold Fasteners:
First Pass: 11 ft-lbs (15 N·m)
Second Pass: 22 ft-lbs (30 N·m)
Torque in sequence page 3.50

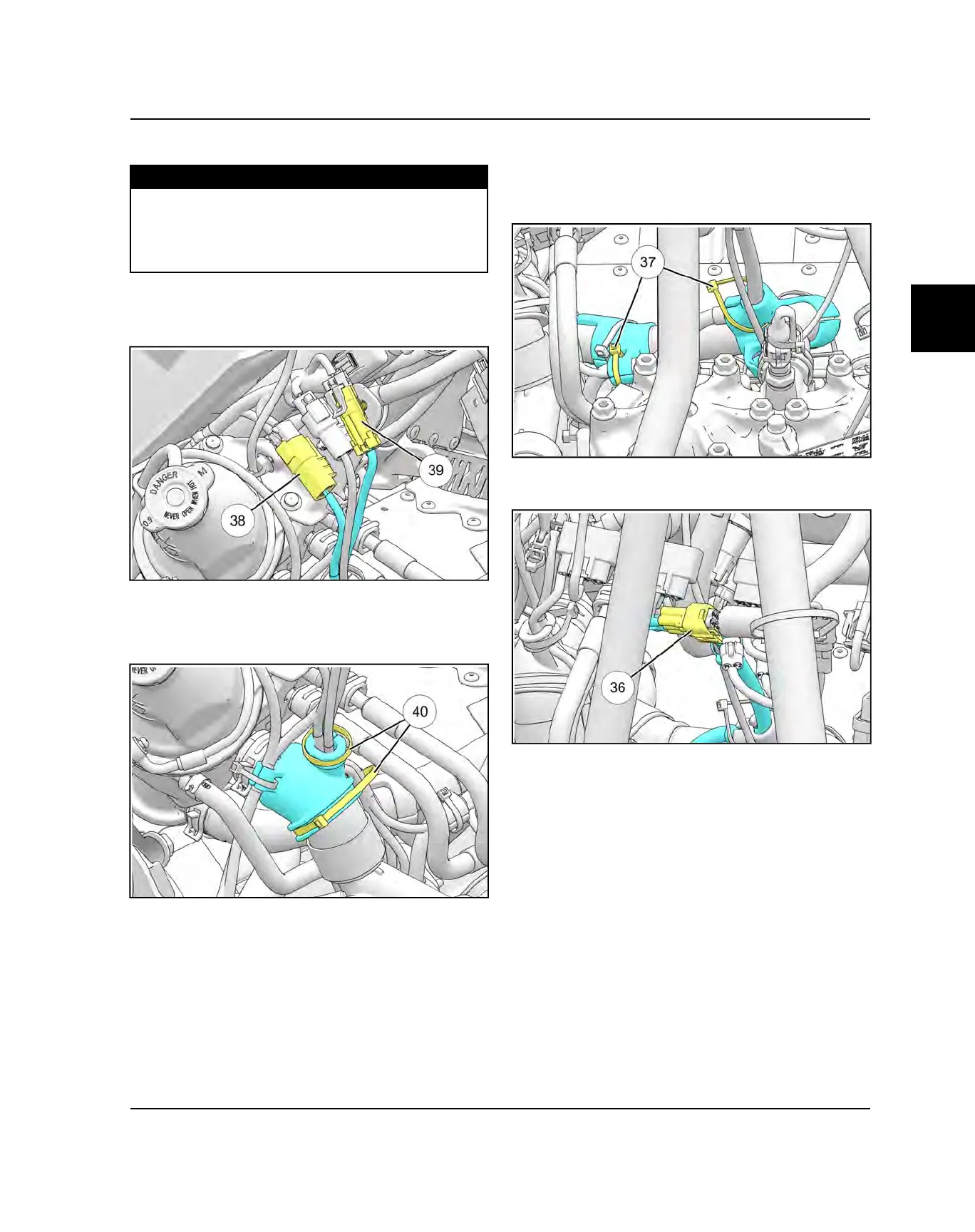

17.Connect the fuel injector harness
3*
and oil pump
connector
3(
to the wiring harness. Install the
connectors on the connector placement bracket.
18.Route the fuel injector harness, oil pump jumper
harness, and TPS harness into and along the side of
the wire support securing the harness with new cable
ties
4)
.
19.Route and secure the stator harness and fuel injector
harness in the stator wire support. Continue to route
the stator harness and secure in the throttle cable /
hose support. Secure the wiring in the supports with
new cable ties
3&
.
20.Connect the stator connector
3^
to the wiring
harness.
