9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
3.149

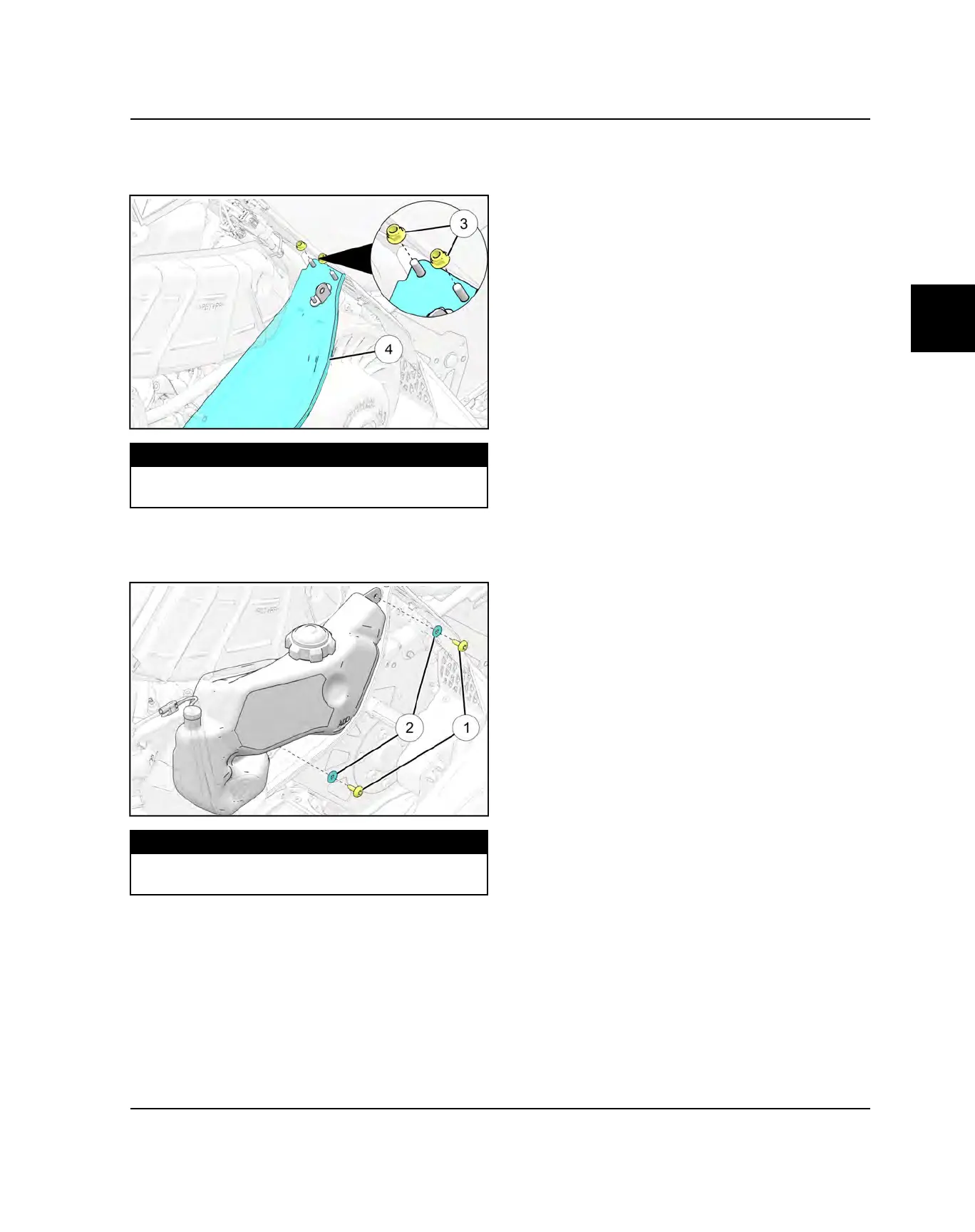

15.Slide the front of the clutch guard
r
into the body
work. Install the fasteners
e
at the rear of the clutch
guard.
TORQUE
Clutch Guard Nuts:
8 ft-lbs (10 N·m)
16.Re-install oil tank and align mounting hole. Install
washers
w
and oil tank mounting fasteners
q
.
Torque fasteners to specification.
TORQUE
Oil Tank Mounting Fasteners:
7 ft-lbs (9 N·m)
17.Install the driven clutch and drive belt. See the
following procedures for installation:
• Driven Clutch Installation
• Drive Belt Installation
18.Install the console. See Console Installation page
9.25.
19.Install the hood and side panels.
ENGINE / COOLING / EXHAUST
