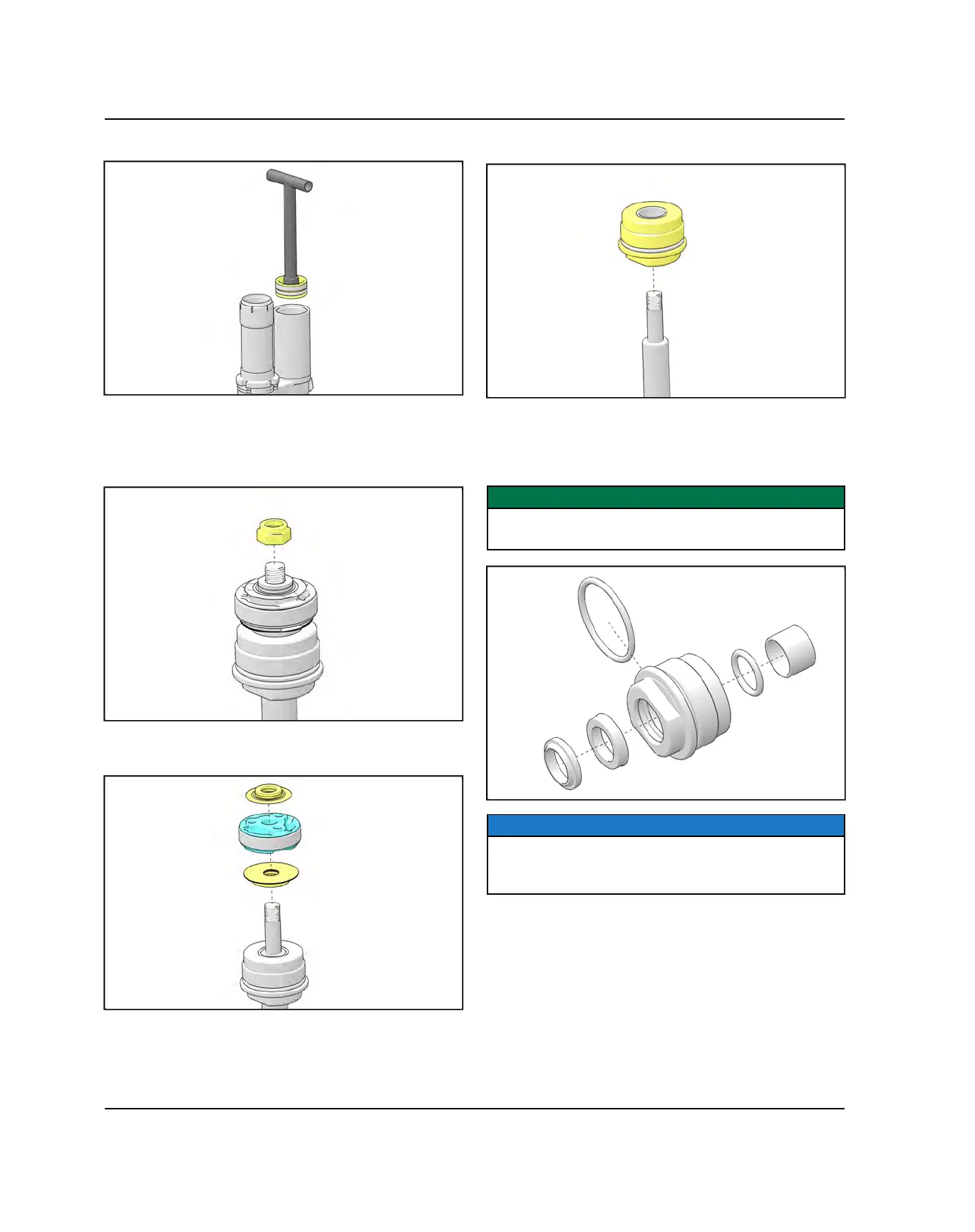

13.Use the T-handle tool to remove the IFP.
14.Remove the shock from the vise and pour residual
shock oil into an approved container.
15.Place the eyelet end of the shock rod into the vise.
Remove and discard the lock nut.
16.Remove the rebound valve stack, piston valve, and
compression valve stack from the shock rod.
17.Remove the bearing cap.
18.To service the bearing cap, remove and discard the
bearing cap O-ring. Use a pick to remove the wiper
seal, U-cup seal, inner O-ring, and shaft bushing if
required.
IMPORTANT
Do not to scratch or gouge the O-ring / seal grooves
when removing the bearing cap O-rings and seals.
NOTICE
The bearing cap shaft bushing is serviceable, but it is
recommended to replace bearing cap assembly if
bushing is worn or damaged.
