MAINTENANCE
Lights
Headlight Lamp Replacement
1. Open the hood.
CAUTION! Hot components can cause burns to skin. Allow lamps to
cool before servicing.
2. Unplug the headlamp from the wiring harness. Be sure to
pull on the connector, not on the wiring.
3. Turn the lamp counterclockwise to remove it.
4. Install the new lamp.
Tip: Make sure the tab on the lamp locates properly in the housing.
5. Reinstall the harness assembly into the headlight assem-
bly.

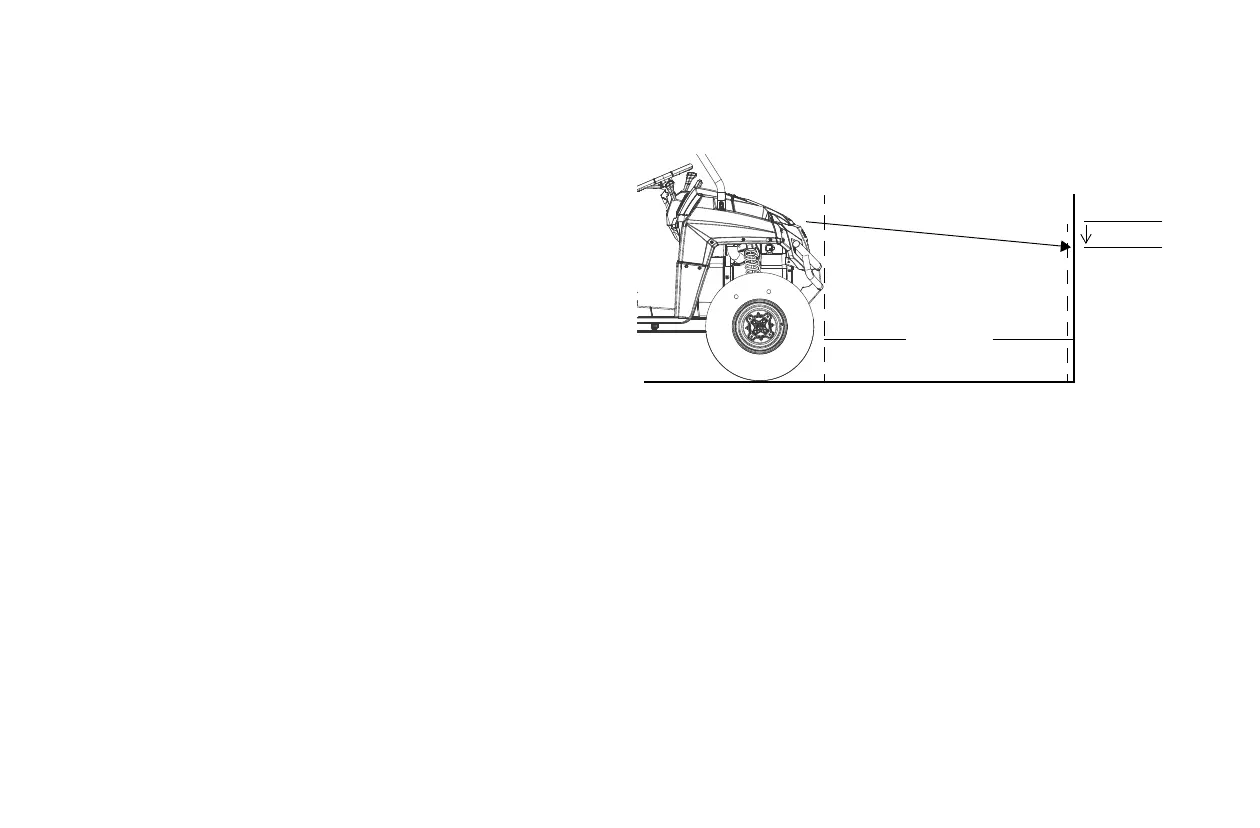

Headlight Beam Adjustment.
1. Place the vehicle on a level surface with the headlight
approximately 25 ft. (7.6 m) from a wall.
2. Place the transmission in gear. Engage the park brake.
3. Measure the distance from the floor to the center of the
headlight and make a mark on the wall at the same height.
4. Apply the brakes. Start the engine. Turn on the headlights.
5. Observe the headlight aim. The most intense part of the
headlight beam should be aimed 8" (20 cm) below the
mark placed on the wall. Include the weight of a rider on
the seat while performing this step.
6. If a headlight needs adjustment, locate the adjustment
screw at the back of the headlight.
7. Loosen the screw, adjust the headlight, and tighten the
screw.
8. Repeat steps 5-7 until the lamp is properly adjusted.
25 ft.
(7.6 m)
8" (20 cm)
XX
