INSTRUMENT PANEL HARNESS

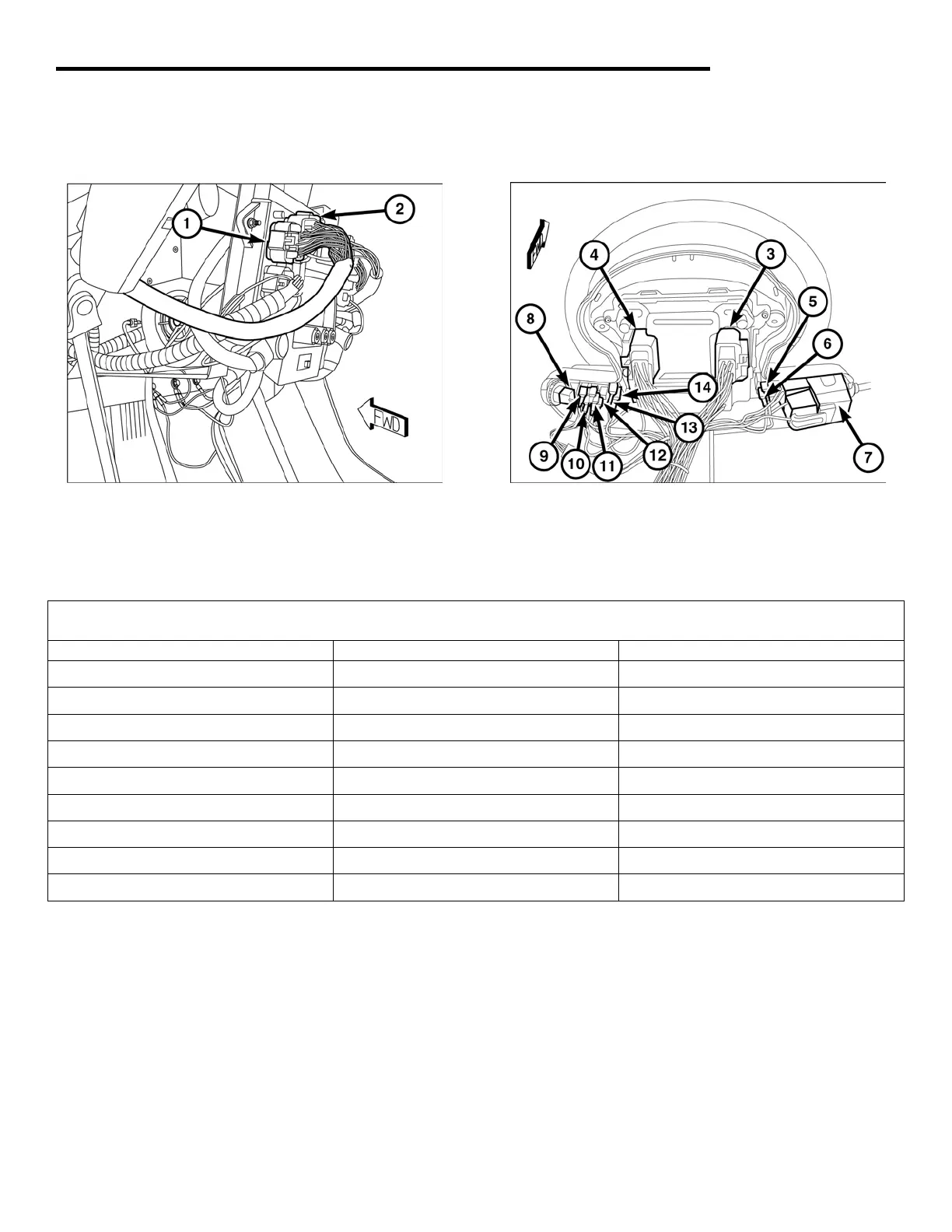

IP HARNESS CONNECTIONS
Connector Number Connects To Number of Pins in Connector
1 PSDM J2 12
2 PSDM J3 16
3 Display D2 12
4 Display D1 10
5,6 Switch-Light 1
7 Switch-Multifunction 10
8 Switch-Key 3
9,10, 11, 12 Switch-Drive Mode 1
13,14 Switch-Trip/Odometer 1
