Polaris GEM eLXD - Page 130

5 - 83 ELECTRICAL
GEM Service Manual November 2007

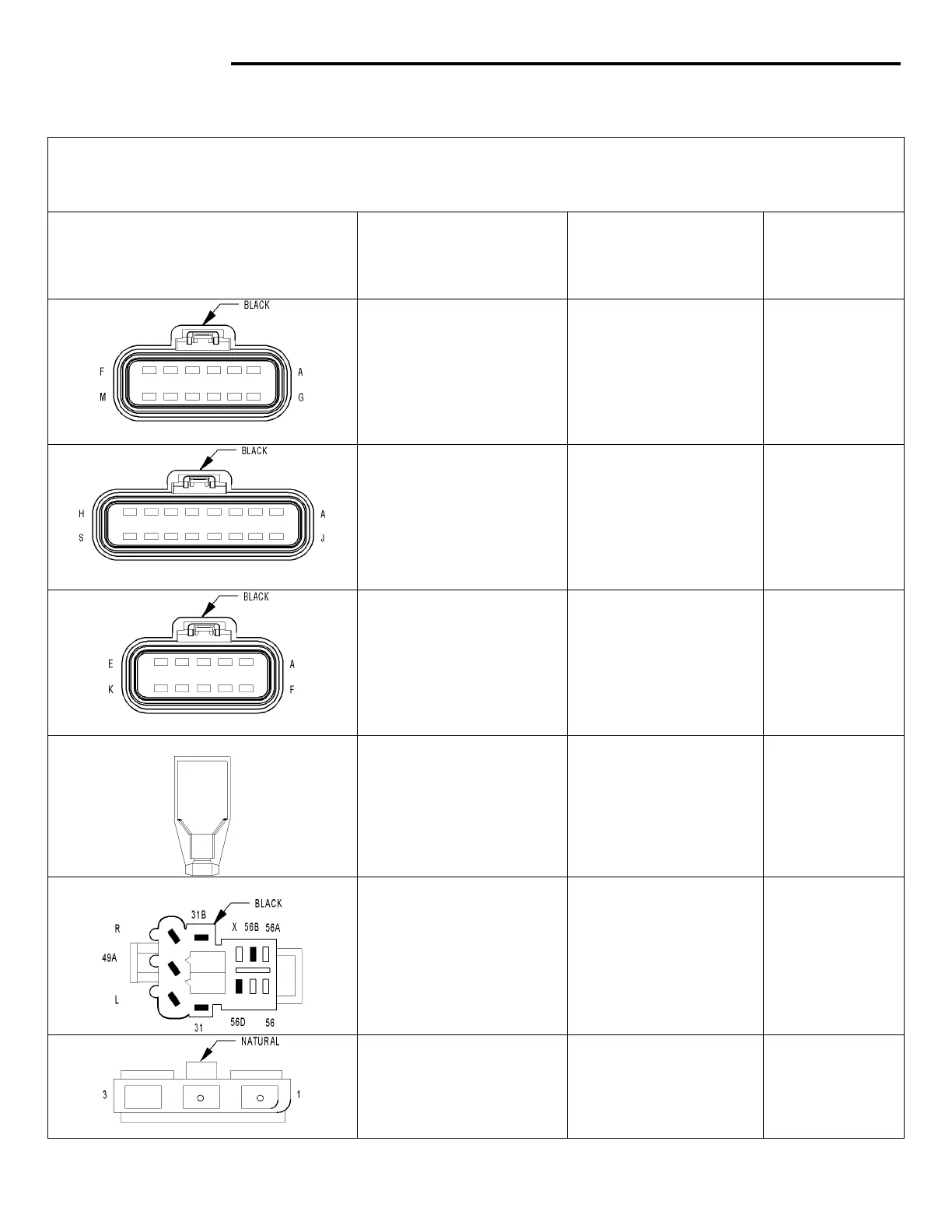

PIN LOCATIONS FOR IP HARNESS CONNECTORS
Connector Illustration Connector Number Connects To Number of
Pins in
Connector
1,3 Display D2,
PSDM J2
12
2 PSDM J3 16
4
Display D1
10
5,6,9,10,11,12,13,14
Switch-Drive Mode,
Switch-Trip Odometer,
Switch-Light
1
7
Switch-Multifunction
10
8 Switch-Key 3
