5.16
BODY / STEERING / SUSPENSION

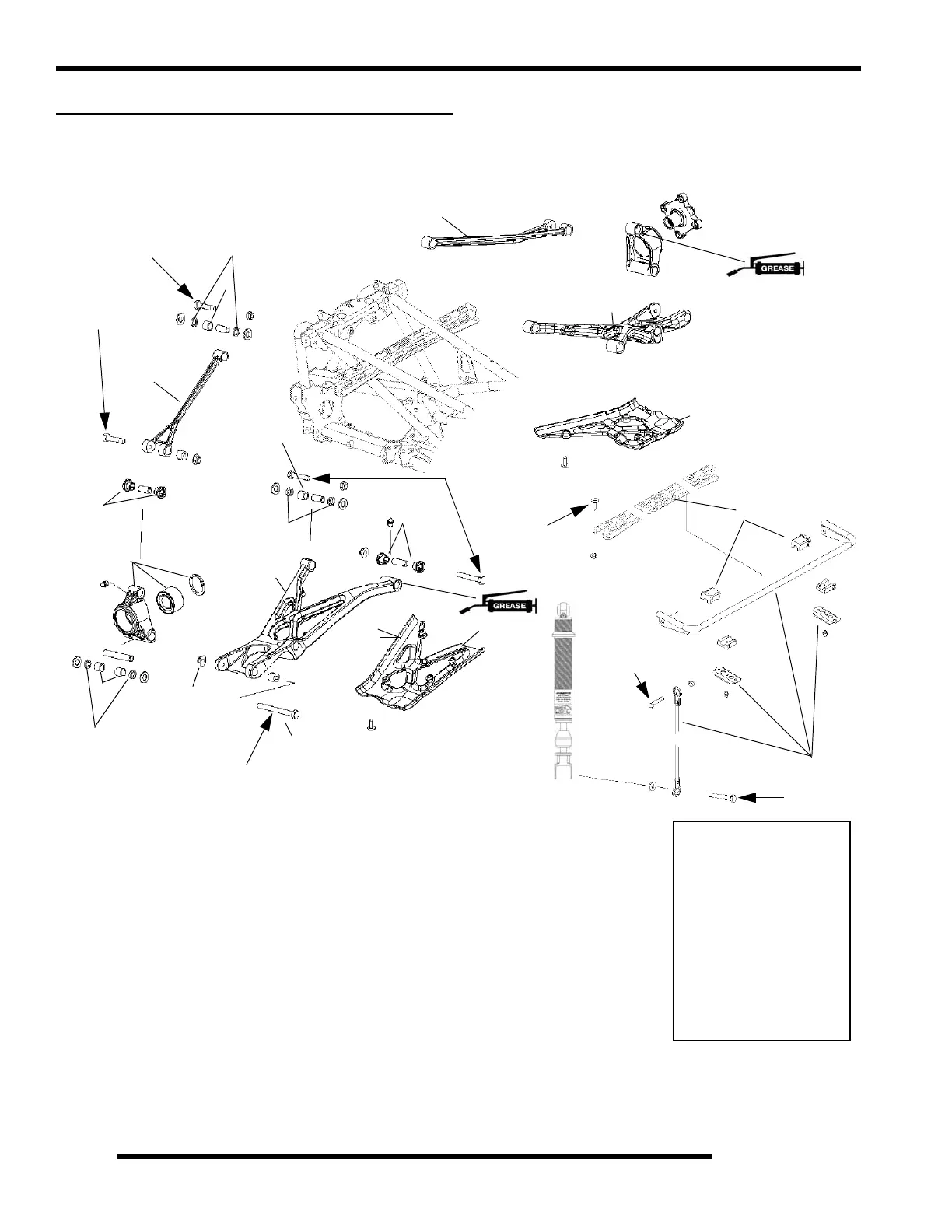

REAR SUSPENSION EXPLODED VIEW
B
C
D
E
G
H
J
K
A
B
A. Hub Carrier Assembly
B. Torsion Bar Assembly
C. Upper A-Arm
D. Lower A-Arm
E. Guard
F. Bushings
G. Bolt
H. Flange Nut
I. Needle Bearing
J. Bearing Seals
E
D
I
F
C
F
I
I
J
J
J
33 ft. lbs.
(45 Nm)
30 ft. lbs.
(41 Nm)
30 ft. lbs.
(41 Nm)
33 ft. lbs.
(45 Nm)
33 ft. lbs.
(45 Nm)
33 ft. lbs.
(45 Nm)
9 ft. lbs.
(12 Nm)
