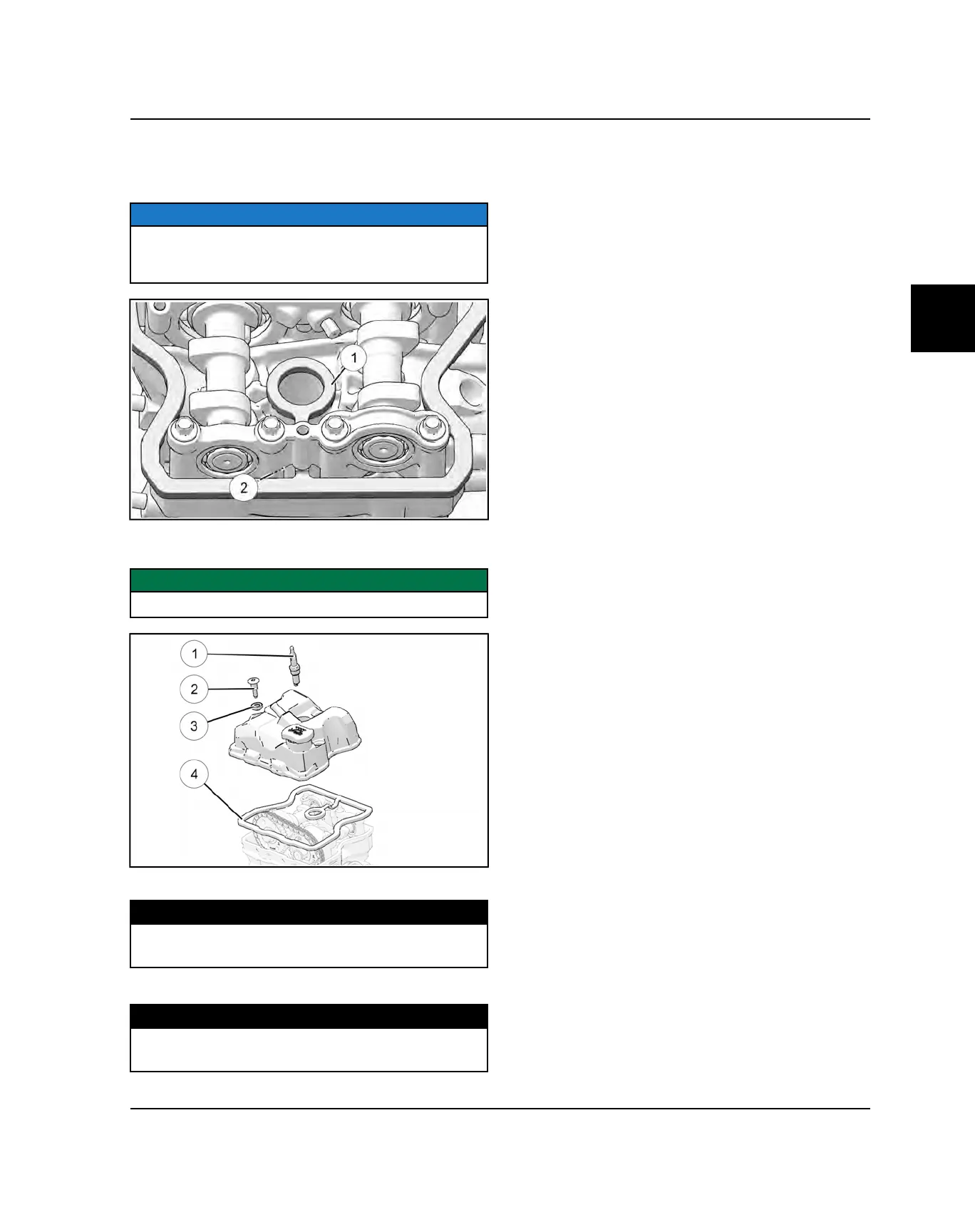

VALVE COVER INSTALLATION
1. Prepare valve cover sealing surfaces by cleaning
thoroughly to remove all residue.
NOTE
Carefully pass the spark plug hole section
q
of the
valve cover seal under the cam carrier bridge
w
to
remove or install the seal.
2. Install the three valve cover shoulder bolts
w
and
new isolators
e
using a T40 driver.
IMPORTANT
New isolators are required once removed.
3. Torque valve cover bolts to specification.
TORQUE
Valve Cover Bolts
7 ft-lbs (10 Nm)
4. Install the spark plug
q
and torque to specification.
TORQUE
Spark Plug:
9 ft-lbs (12 Nm)Do Not Apply Anti-seize
