9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.
EFI COMPONENT LOCATIONS

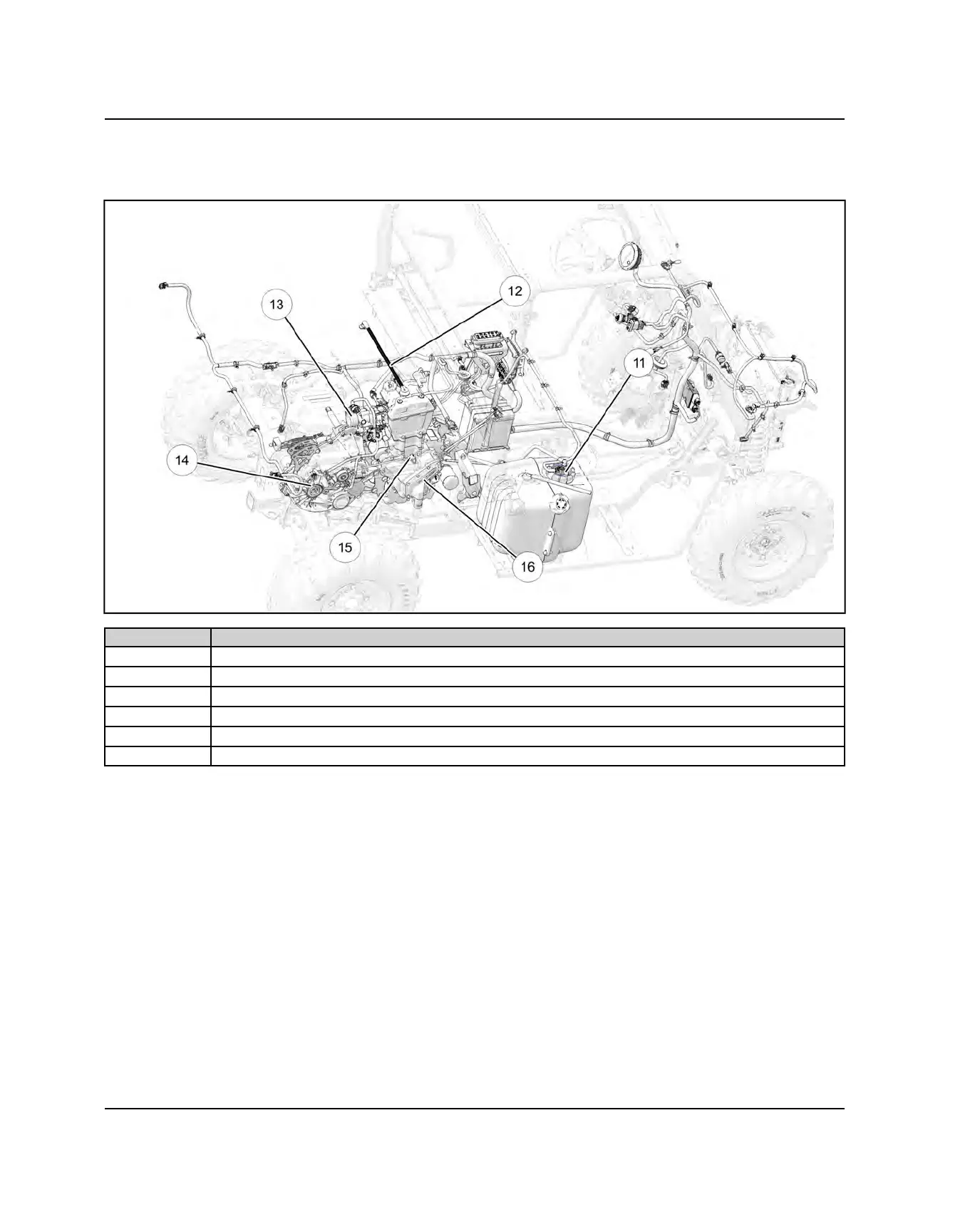

EFI COMPONENT LOCATIONS - RIGHT VIEW
REF.
COMPONENT
11
Fuel Pump / Sender
12
High Tension Wire / Spark Plug
13
Throttle Body (ETC)
14
Speed Sensor (Mounted to Transmission)
15
CPS
16
Stator (Magneto)
