7
9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.
7.7

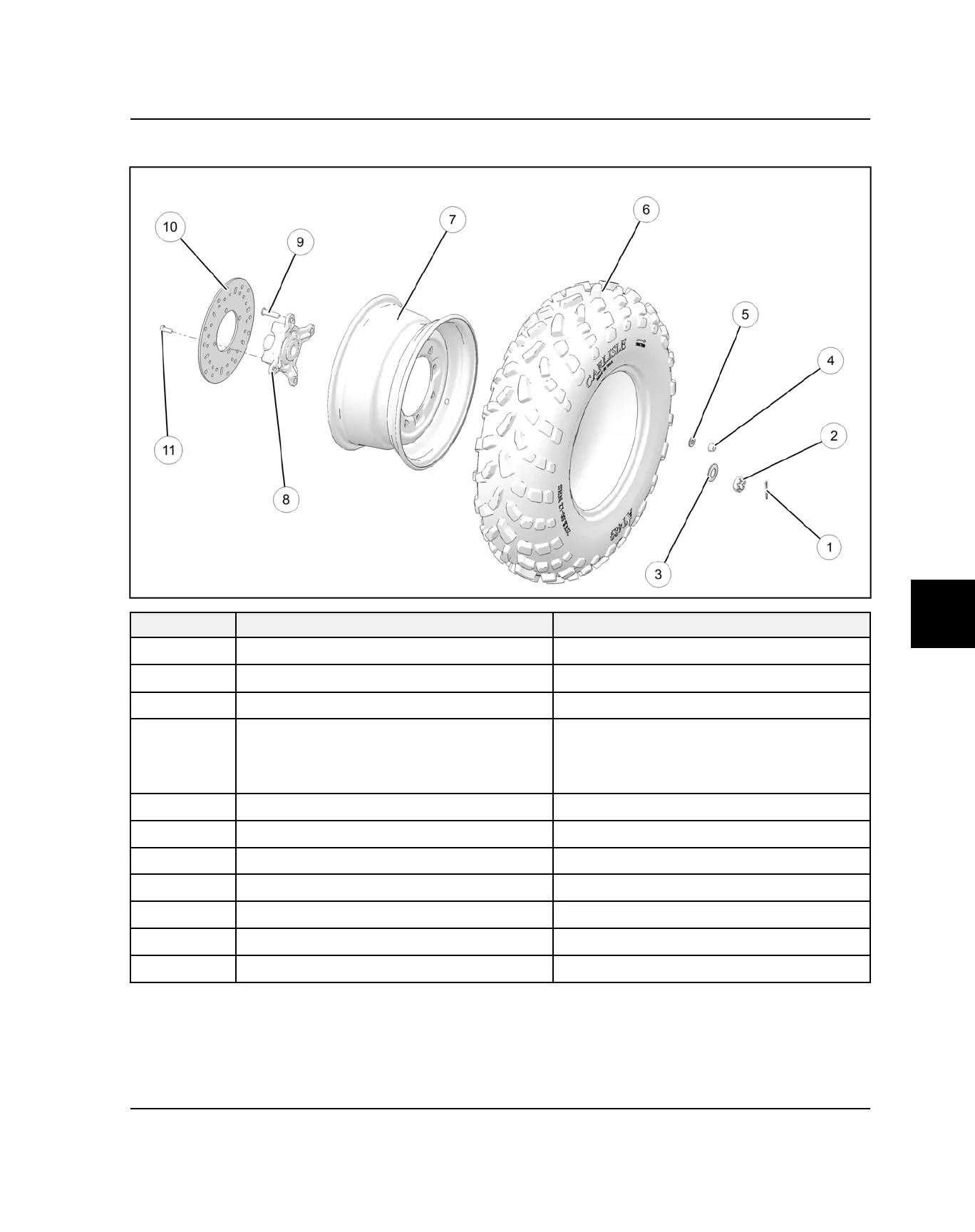

FRONT HUB/WHEEL EXPLODED VIEW
REF
DESCRIPTION NOTES
q
Cotter Pin
w
Castle Nut 90 ft-lbs (122 Nm)
e
Washer
r
Wheel Nut
Steel Wheel Nuts:
36 ft-lbs (49 Nm)
Aluminum Wheel Nuts:
30 ft-lbs + 90º (41 Nm + 90º)
t
Washer
y
Tire
u
Rim
i
Front Hub
o
Stud
a
Brake Disc
s
Bolt
FINAL DRIVE
