9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.
9.21
FRONT CALIPER - CREW

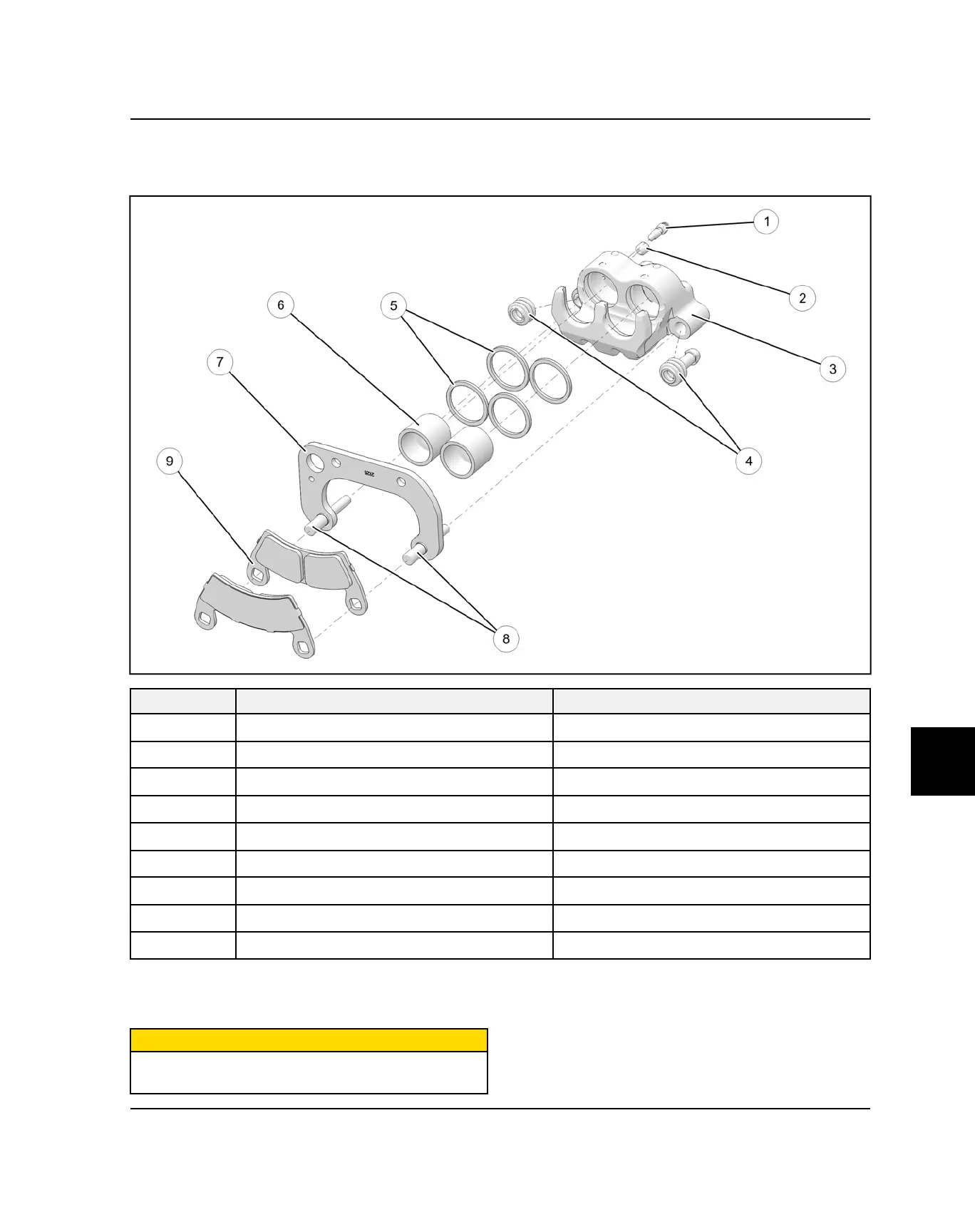

FRONT CALIPER ASSEMBLY VIEW
REF.
DESCRIPTION NOTES
q
Bleeder Screw 47 in-lbs (5.3 Nm)
w
Socket Set Screw
e
Caliper Assembly
r
Dust Boots
t
Square O-Rings Apply Polaris DOT 4 Brake Fluid
y
Piston
u
Caliper Mount
i
Caliper Pins Apply Disc Brake Caliper Lube
o
Brake Pads
FRONT CALIPER REMOVAL- CREW
1. Elevate and safely support the front of the vehicle.
CAUTION
Use care when supporting vehicle so that it does not tip
or fall. Severe injury may occur.
2. Remove the four wheel nuts and the front wheel.
3. Clean caliper area before removal.
