8.18
9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.

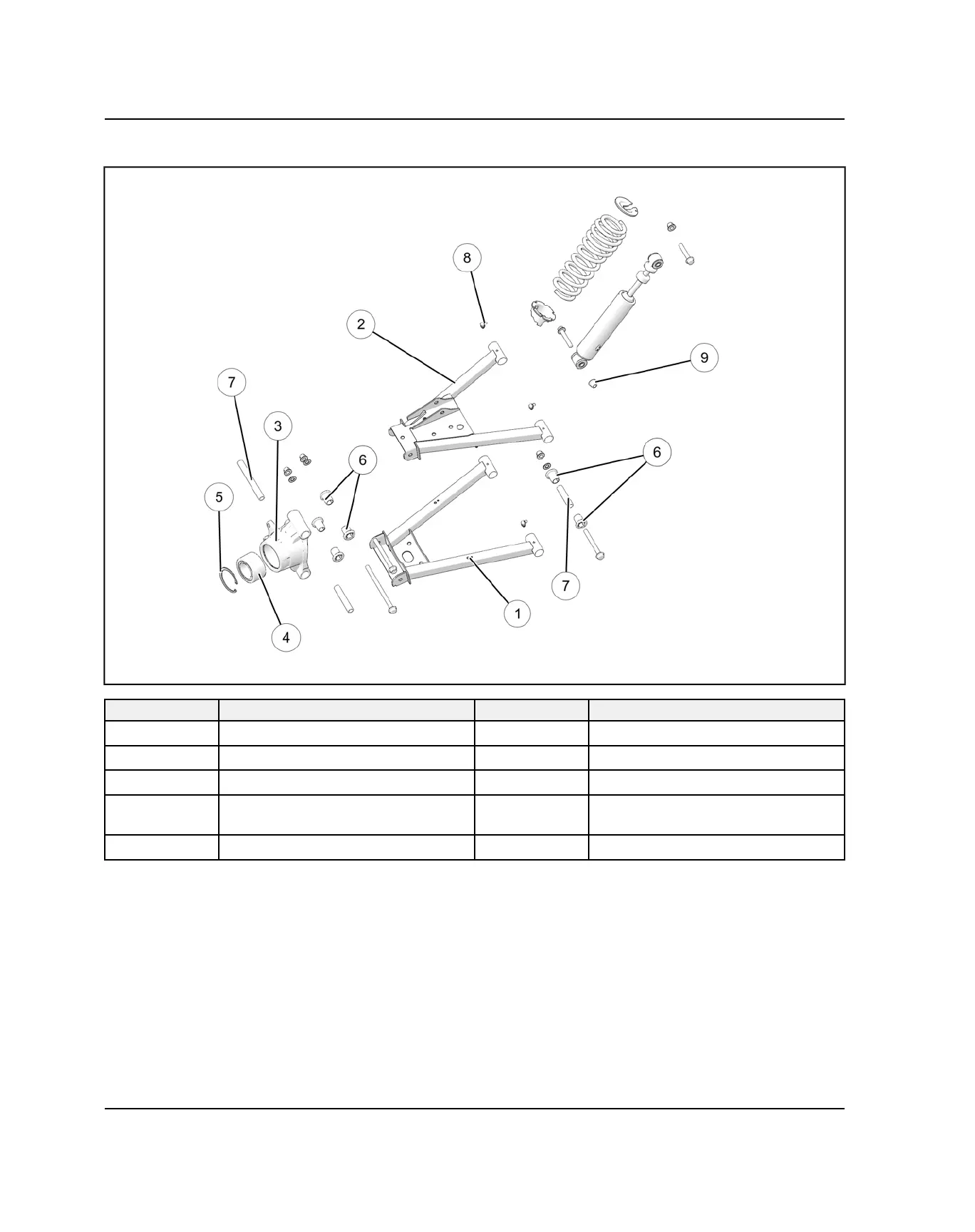

ASSEMBLY VIEW
REF DESCRIPTION REF DESCRIPTION
q
Lower A-Arm
y
Bushing
w
Upper A-Arm
u
Pin
e
Bearing Carrier
i
Grease Zerk
r
Wheel Bearing
o
Nuts
40 ft-lbs (54 Nm)
t
Snap Ring
STEERING / SUSPENSION
