FUEL INJECTION

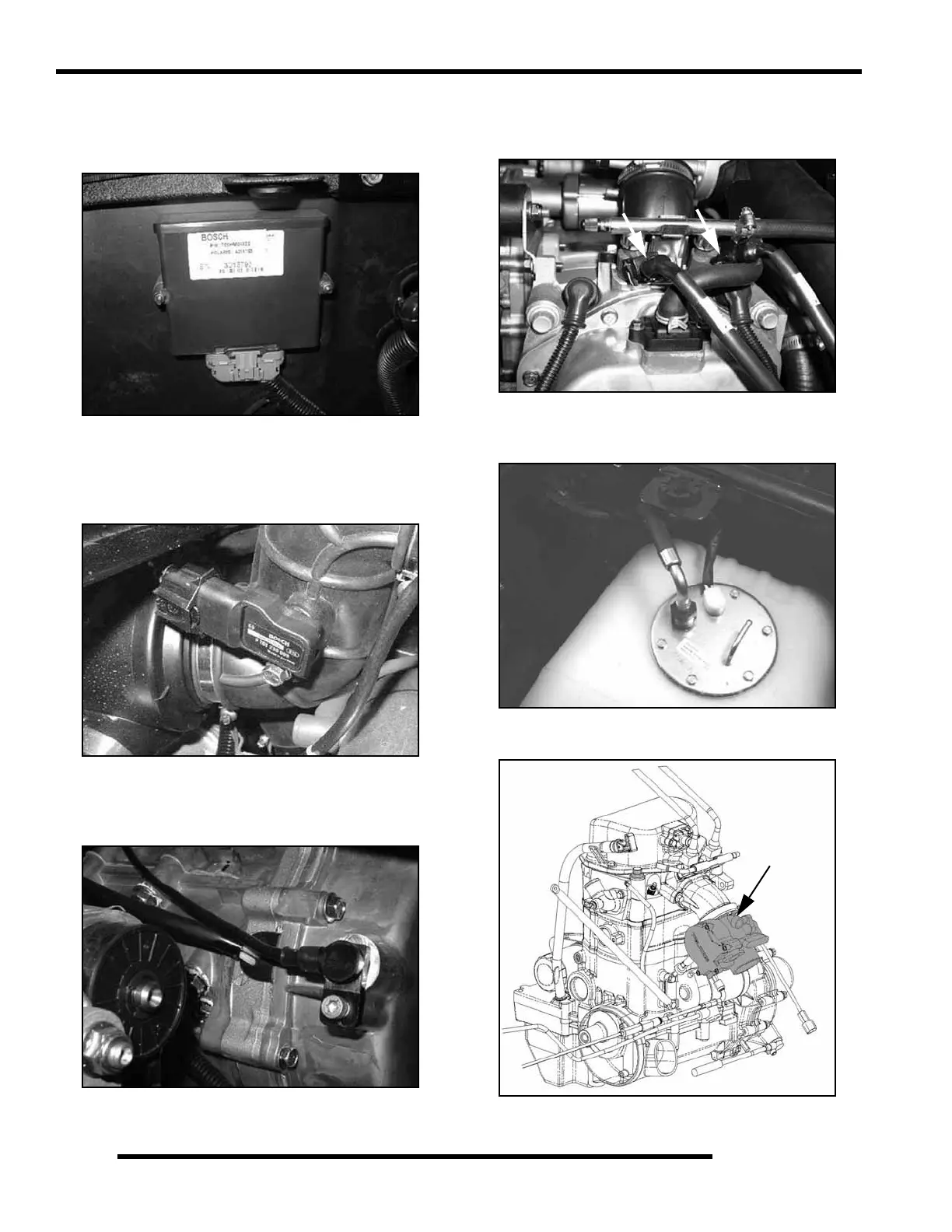

EFI System Component Locations
1. Electronic Control Unit (ECU)
Located under the seat on the driver’s side.
2. Intake Air Temperature and Barometric Air Pressure
Sensor (T-BAP)
Located in the rubber intake boot between the air box and
throttle body.
3. Crankshaft Position Sensor (CPS)
Located in the magneto cover on the right-hand side of the
engine.
4. Fuel Injectors / Fuel Rail
Attached to the fuel rail located in the intake track of the
cylinder head.
5. Fuel Pump / Regulator / Gauge Sender Assembly
Located in fuel tank as an assembly.
6. Throttle Body
Throttle
Body
