Polaris Ranger 700 EFI 4x4 2007 User Manual

7.52
FINAL DRIVE

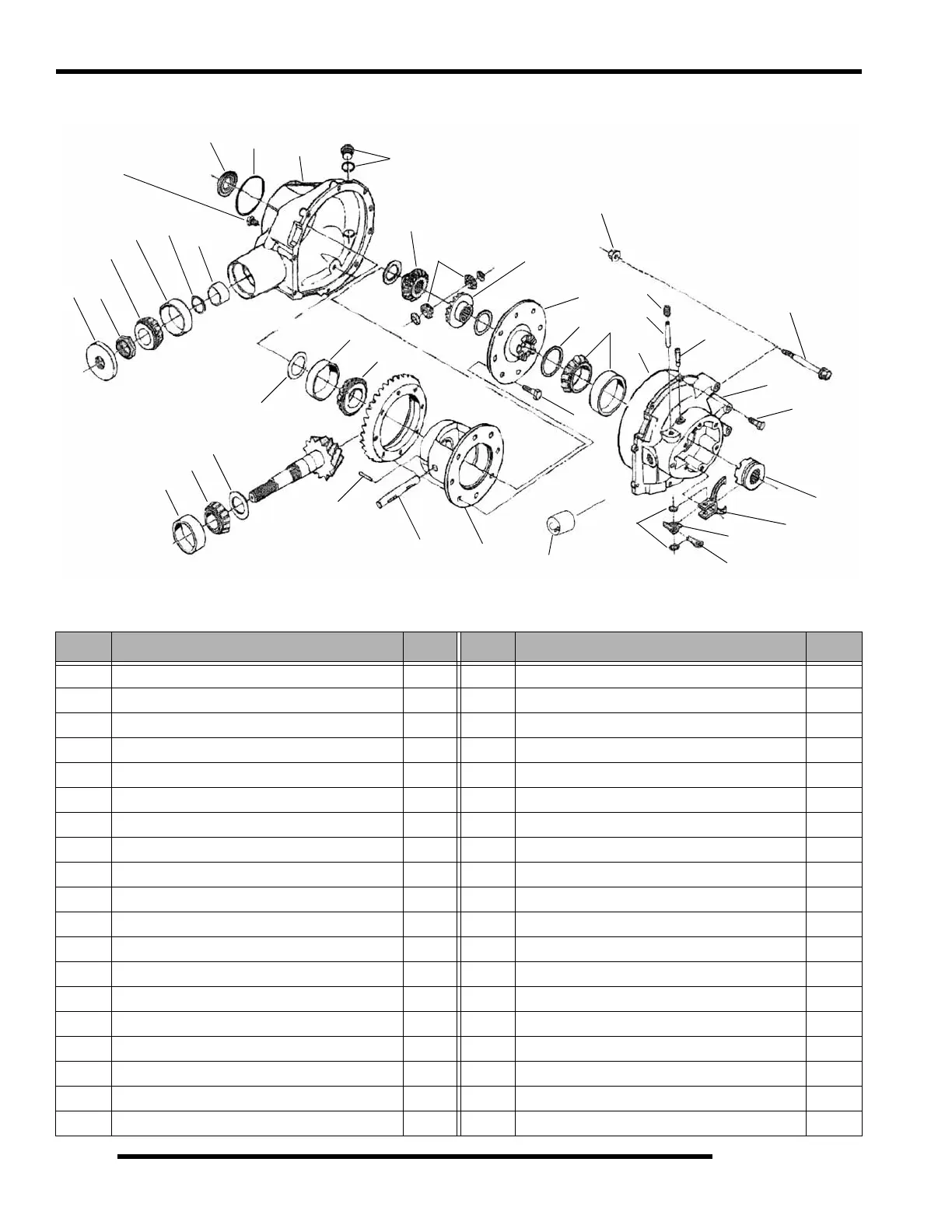

Differential Exploded View
REF# DESCRIPTION QTY REF# DESCRIPTION QTY
1 Pinion Oil Seal 1 20 Flanged Hex Nut 3
2 Pinion Nut 1 21 Flanged Hex Bolt 3
3 Pinion Bearing Cone 2 22 Vent Tube 1
4 Pinion Bearing Cup 2 23 Differential Case Half Cover 1
5 Pinion Spacer AR 24 Flanged Hex Bolt 6
6 Pinion Bearing Spacer 1 25 Clutch Gear 1
7 Drain Plug 1 26 Shift Yoke 1
8 Oil Seal Shaft 1 27 Shift Spring Lever 1
9 O-Ring 1 28 Shift Lever 1
10 Carrier Half Cover 1 29 Shift Return Spring 2
11 Fill / Check Plug 1 30 Diff. Lock Solenoid 1
12 Gear-Side, Differential 2 31 Hex Bolt 8
13 Gear-Pinion, Mate, Differential 2 32 Differential Case Half 1
14 Differential Case Half Cover 1 33 Differential Cross-Pin 1
15 Differential Bearing Spacer AR 34 Differential Roll-Pin 1
16 Tapered Roller Bearing 1 35 Pinion Spacer AR
17 O-Ring, Housing Halves 1 36 Differential Bearing Spacer AR
18 Shift Yoke Pivot Shaft 1 37 Differential Bearing Cup 1
19 Set Screw 1 38 Differential Bearing Cone 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
12
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
3
4
30-45 in. lbs.
(3-5 Nm)
40 ft. lbs.
(54 Nm)
25-35 ft. lbs.
(34-48 Nm)
25-35 ft. lbs.
(34-48 Nm)
30-40 ft. lbs.
(41-52 Nm)
