3.34
ENGINE

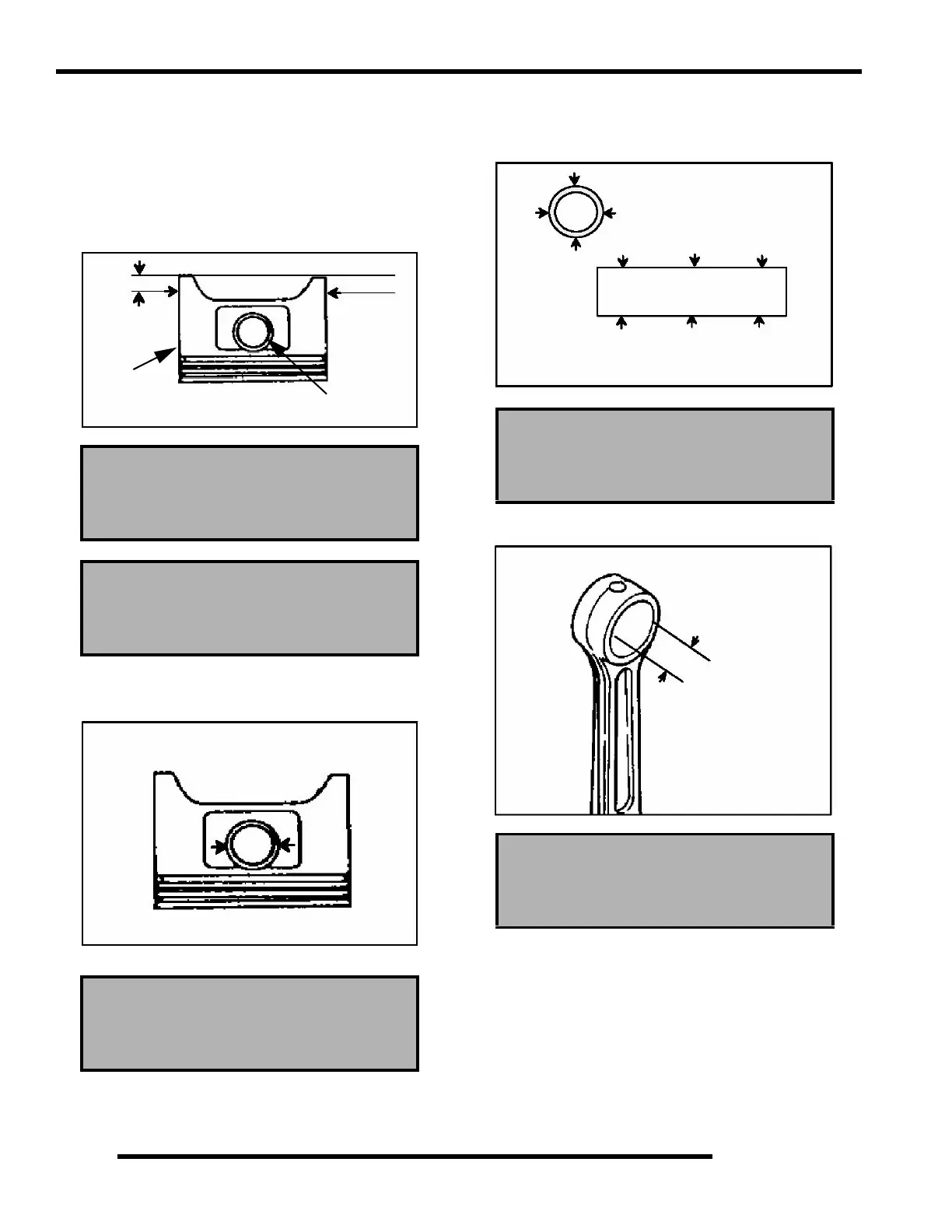

Piston-to-Cylinder Clearance
Measure piston outside diameter at a point 5 mm up from the
bottom of the piston at a right angle to the direction of the piston
pin.
Subtract this measurement from the maximum cylinder
measurement obtained in Step 5.
Piston / Rod Inspection
1. Measure piston pin bore.
2. Measure piston pin O.D. Replace piston and/or piston pin
if out of tolerance.
3. Measure connecting rod small end ID.
Piston to Cylinder Clearance:
See “700 EFI Engine Service
Specifications” on page 3.11
Piston O.D.:
See “700 EFI Engine Service
Specifications” on page 3.11
Piston Pin Bore:
See “700 EFI Engine Service
Specifications” on page 3.11
5 mm
Piston
Piston Pin
Piston Pin O.D.:
See “700 EFI Engine Service
Specifications” on page 3.11
Connecting Rod Small End I.D.:
See “700 EFI Engine Service
Specifications” on page 3.11
Piston Pin Measurement Locations
