7.36
FINAL DRIVE
REAR DRIVE (4X4)

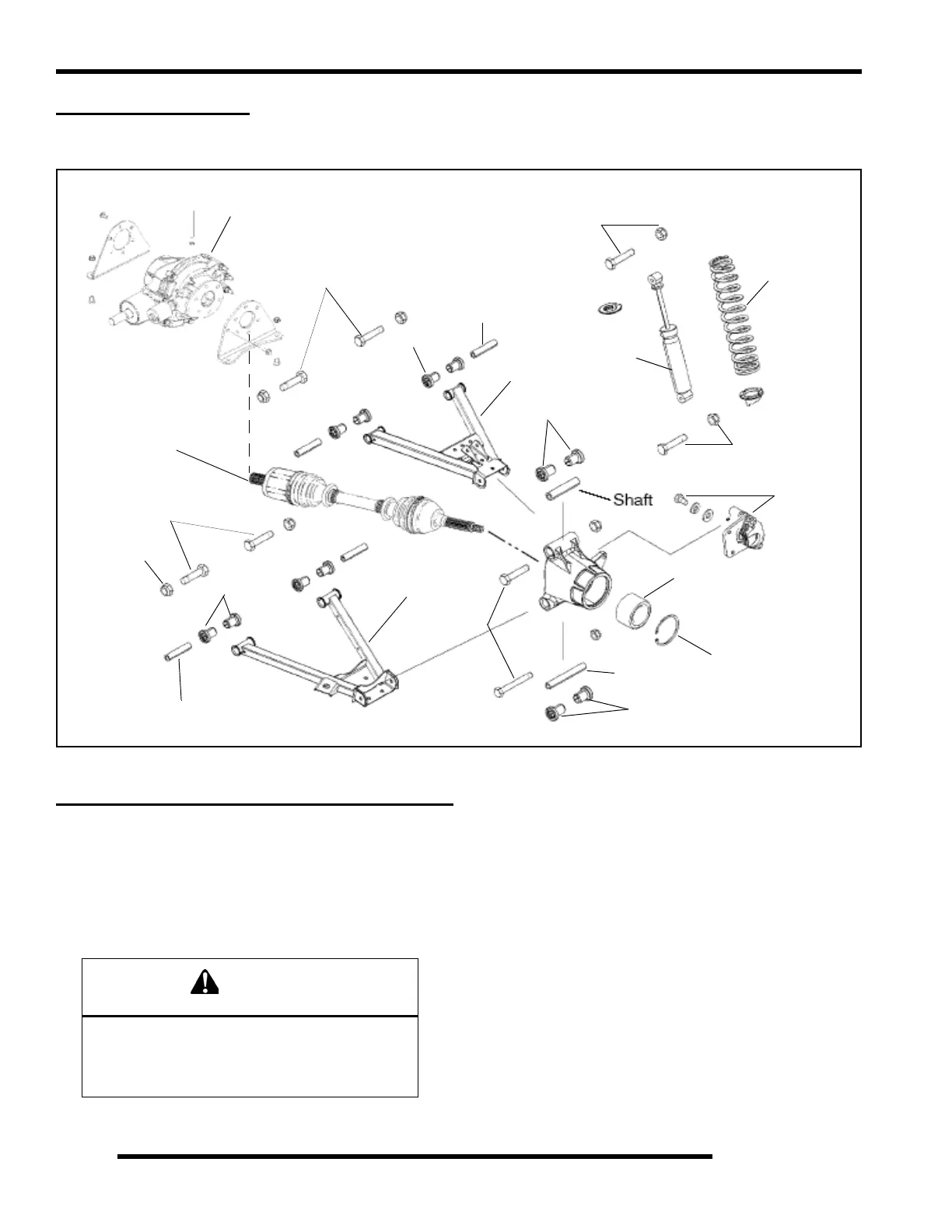

Exploded View
REAR HUB / BEARING CARRIER (4X4)
Hub Inspection
1. Support machine securely with rear wheels elevated.
2. Grasp wheel / hub and check for movement.
3. If movement is detected, inspect hub, hub nut torque and
bearing condition and correct as necessary.
Hub Removal
1. Elevate rear end and safely support machine under main
frame area.
2. Check bearings for side play by grasping the tire / wheel
firmly and checking for movement. Grasp the top and
bottom of the tire. The tire should rotate smoothly without
binding or rough spots.
3. Remove wheel nuts and wheel.
Rear Gearcase
A-arm bolts
Rear Drive Axle
A-arm bolts
Nuts
Bushings
Lower A-arm
Carrier Bolt
Shaft
Bushings
Snap Ring
Coil
30 ft. lbs.
(41 Nm)
Shock
Shaft
Bearing
Bushings
30 ft. lbs.
(41 Nm)
Bushings
Shaft
Upper A-arm
Caliper
18 ft. lbs.
(24 Nm)
30 ft. lbs.
(41 Nm)
CAUTION
Serious injury may result if machine tips or falls.
Be sure machine is secure before beginning this
service procedure. Wear eye protection when
removing bearings and seals.
