6.10
CLUTCHING
NOTE: On some models, minor adjustments can be
made by adding shims between the frame and front
lower left engine mount to increase the distance at
point “A”. If a shim is present, it can be removed to
decrease the distance at point “A”.

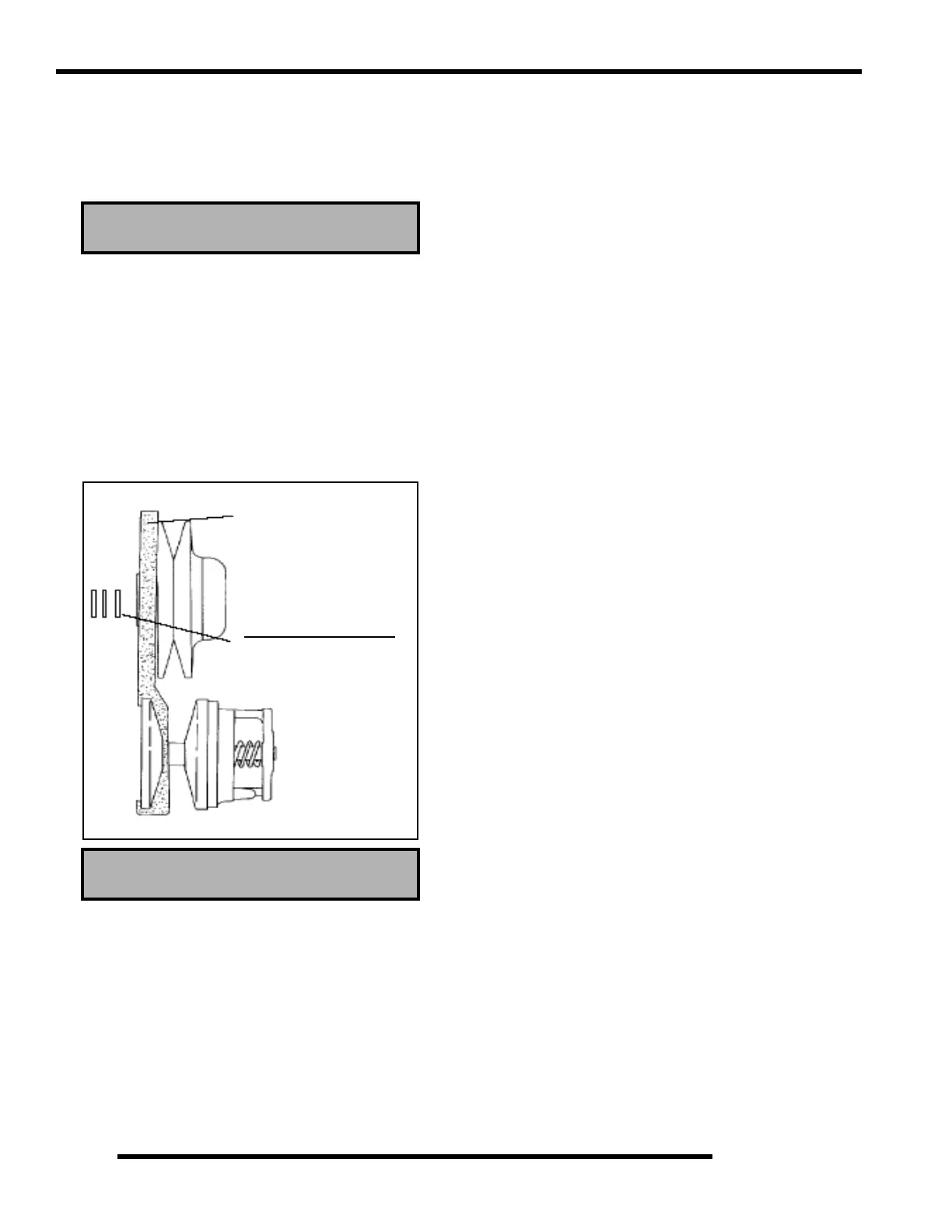

Clutch Offset
IMPORTANT: Inspect clutch alignment and center
distance before adjusting offset.
1. Install clutch alignment tool as shown.
Offset is correct when rear of tool contacts rear of inner sheave
with driven clutch pushed completely inward on shaft and bolt
torqued. Adjust offset by adding or removing spacer washers
between back of driven clutch and spacer as shown.
Shim Kit PN: 2200126
Spacer Washer PN: 7556401
Clutch Alignment Tool
should contact rear edge
of driven clutch sheave
To adjust, add or remove
washers from behind the
driven clutch
Driven Clutch Offset
