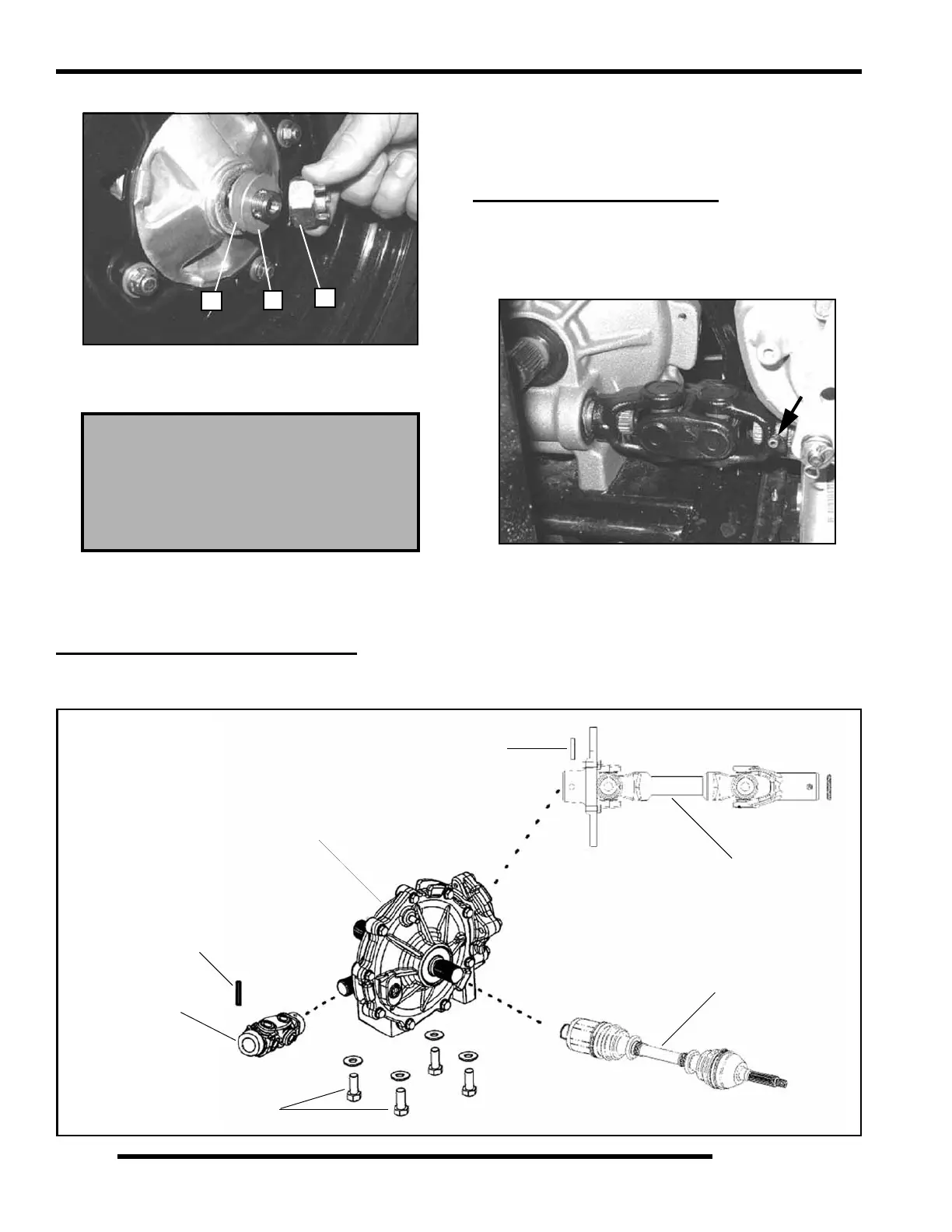

FINAL DRIVE
6. Install the castle nut (C), wheel, and wheel nuts.
7. Remove jackstand and torque mid hub nut to 110 ft. lbs.
(149 Nm) and wheel nuts to 35 ft. lbs. (47 Nm).
8. Install a new cotter pin. Tighten nut slightly to align holes
if required.
9. Install hub cap.
MID PROP SHAFT (6X6)
Removal
1. Use the Roll Pin Removal Tool (PN 2872608), to remove
the roll pin from prop shaft at rear of transmission.
2. The transmission or middle differential mounting will have
to be loosened to allow the propshaft to slide off of the
transmission output shaft.
MID DRIVE GEARCASE (6X6)
Gearcase Removal
Mid Hub Nut Torque:
110 ft. lbs. (149 Nm)
Mid Wheel Nut Torque
35 ft. lbs. (47 Nm)
A
B
C
MID DRIVE GEARCASE
MID DRIVE SHAFT
PIN
TRANSMISSION
REAR DRIVE SHAFT
MOUNTING BOLTS
PIN
COUPLER
& WASHERS
