ENGINE
ENGINE SPECIFICATIONS

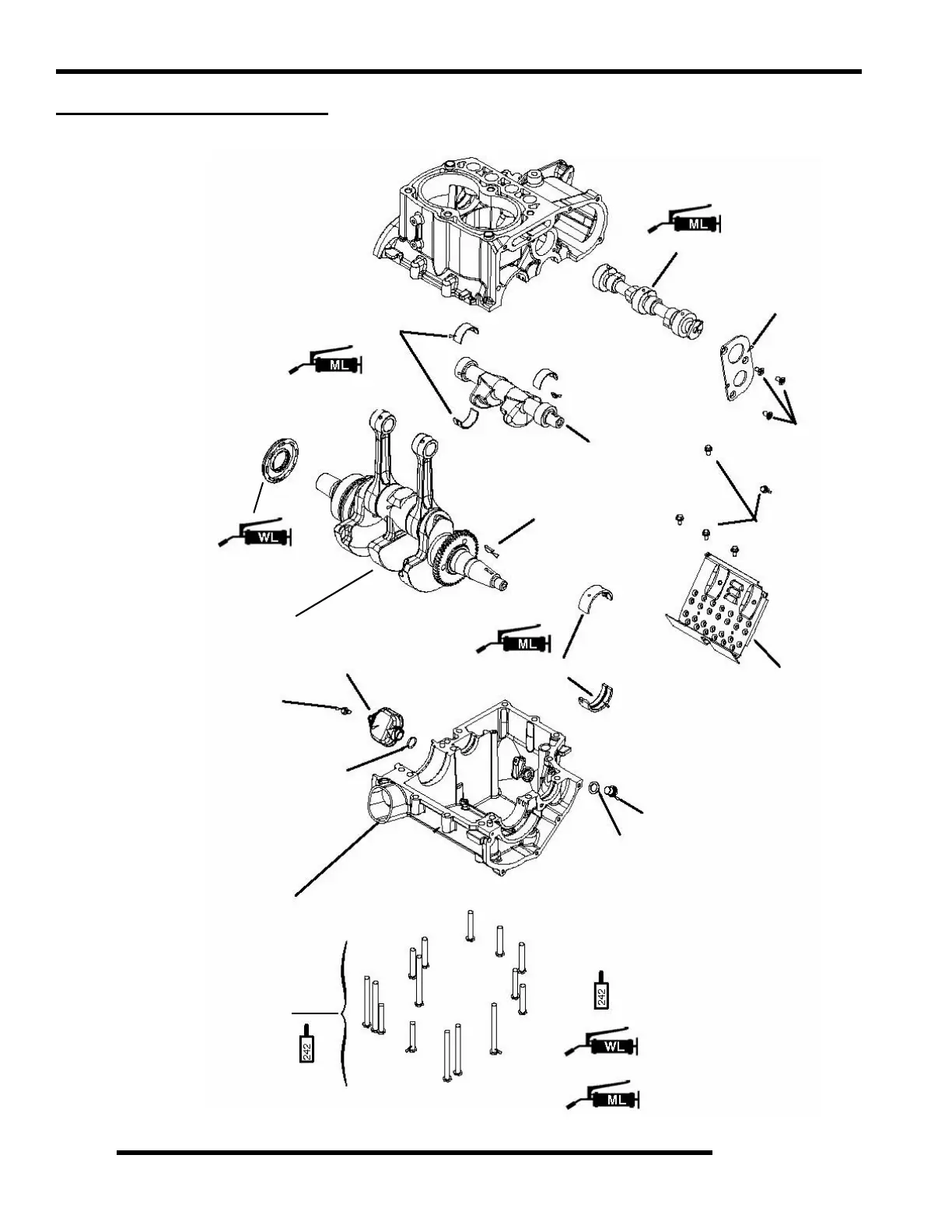

Crankcase Exploded Views
A
B
C
D
E
F
G
H
I
J
K
L
I
M
N
O
Apply Loctite 242 to
bolt threads.
Apply White Lithium
Grease
Apply Moly
Lube Grease.
60  6 in. lbs.
(6.8  .68 Nm)
192  24 in. lbs
(21.7  2.7 Nm
115  12 in. lbs.
(13  1.35 Nm)
60  6 in. lbs.
(6.8  .68 Nm)
NOTE: If needed, heat
the oil baffle bolts with a
heat gun to remove.
22  2 ft. lbs. (30  3 Nm)
A. Journa l Bearin gs
B. Camshaft
C . T h r u s t P l a t e
D. Balance Shaft
E. Woodruff Key
F. Flange Seal
G. Crankshaft
H. Oil Pickup
I. Journal Bearings
J. Baffle
K. Oil Plug
L. Washer
M. O-ring
N. Crankcase
O. Crankcase Bolts
