ELECTRICAL
10
ELECTRIC BOX LIFT ACTUATOR
DIAGNOSIS (if equipped)

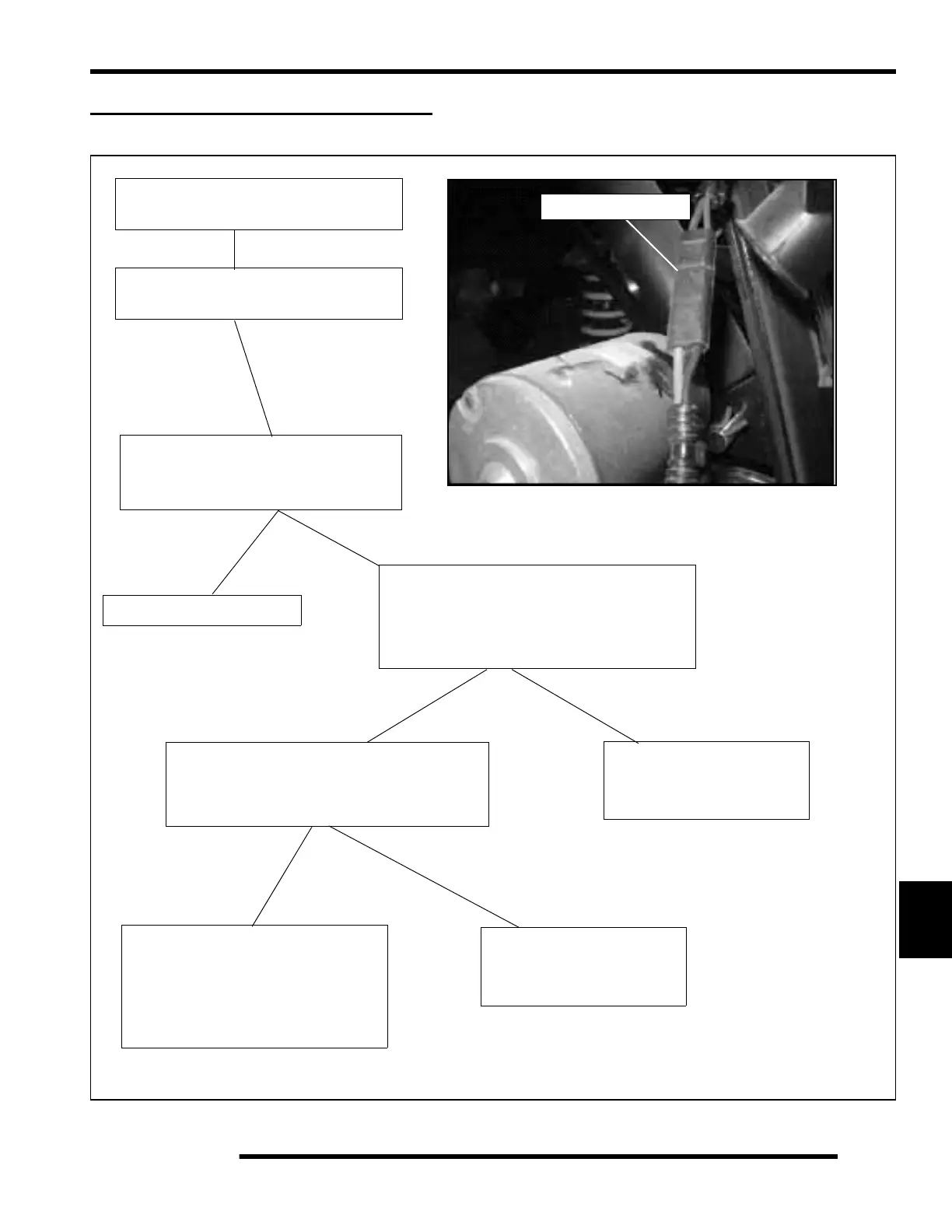

1. Disconnect the wiring harness to the
box lift actuator.
2. Connect a multimeter across the
box lift actuator harness connection.
3. Actuate the box lift switch in both
directions. Verify that there is 12 Volts
reaching the box lift actuator. Follow
the diagram below for diagnosis.
YES - (12 Volts at actuator)
(Not 12 Volts at actuator)
Lift the hood. Locate the box lift switch.
Check for 12 Volts between the RED/BLACK
wire terminal on the back of the switch and
the BROWN wire terminal.
On the main connector behind the dashboard,
measure for 12 Volts between RED/BLACK
wire terminal and ground.
(Not 12 Volts between wires)
Test wiring between the main
connector and the circuit
breaker.
(12 Volts between wires)
Test the accessory and wiring circuit
breaker located under the seat.
(Refer to Wiring Schematic)
Test the wiring between the main
connector and the circuit breaker.
(Not 12 Volts between wires)
Check the switch. Check the
wires between the switch
and the actuator motor.
(12 Volts between wires)
YES
NO
YES
NO
YES
NO
Disconnect Harness
