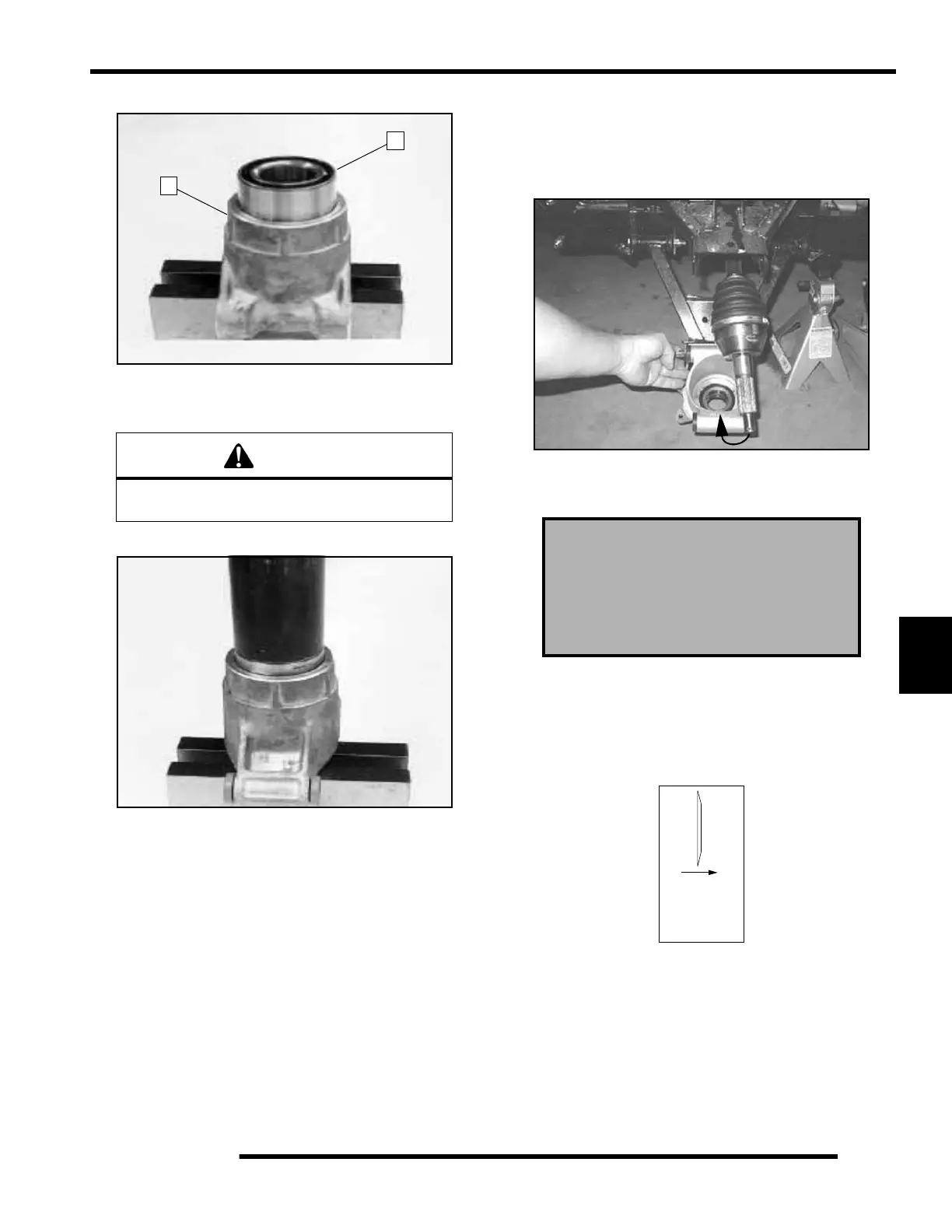

7.25
FINAL DRIVE
7
2. Start bearing (B) in housing (A).
3. Press bearing into place until outer race bottoms on
housing.
4. Install snap ring into groove.
Hub Installation
1. Install hub carrier to lower A-arm. Hand tighten lower A-
arm bolt.
2. Slide mid drive shaft through the hub carrier.
3. Install upper A-arm bolt and torque both upper and lower
bolts.
4. Pull drive shaft outward and install hub onto driveshaft
splines. Apply Anti-Seize compound to the axle splines.
5. Install the flat washer (A) and cone washer (B) with domed
side facing outward. (Refer to next photo)
CAUTION
Use an arbor and press only on the outer race,
as bearing damage may occur.
B
A
Lower Control Arm Bolt Torque:
35 ft. lbs. (47 Nm)
Upper Control Arm Bolt Torque:
35 ft. lbs. (47 Nm)
Out
Cone
Washer
