Polaris Ranger 700 EFI 4x4 2007 User Manual

9.15
BRAKES
9
FRONT CALIPER

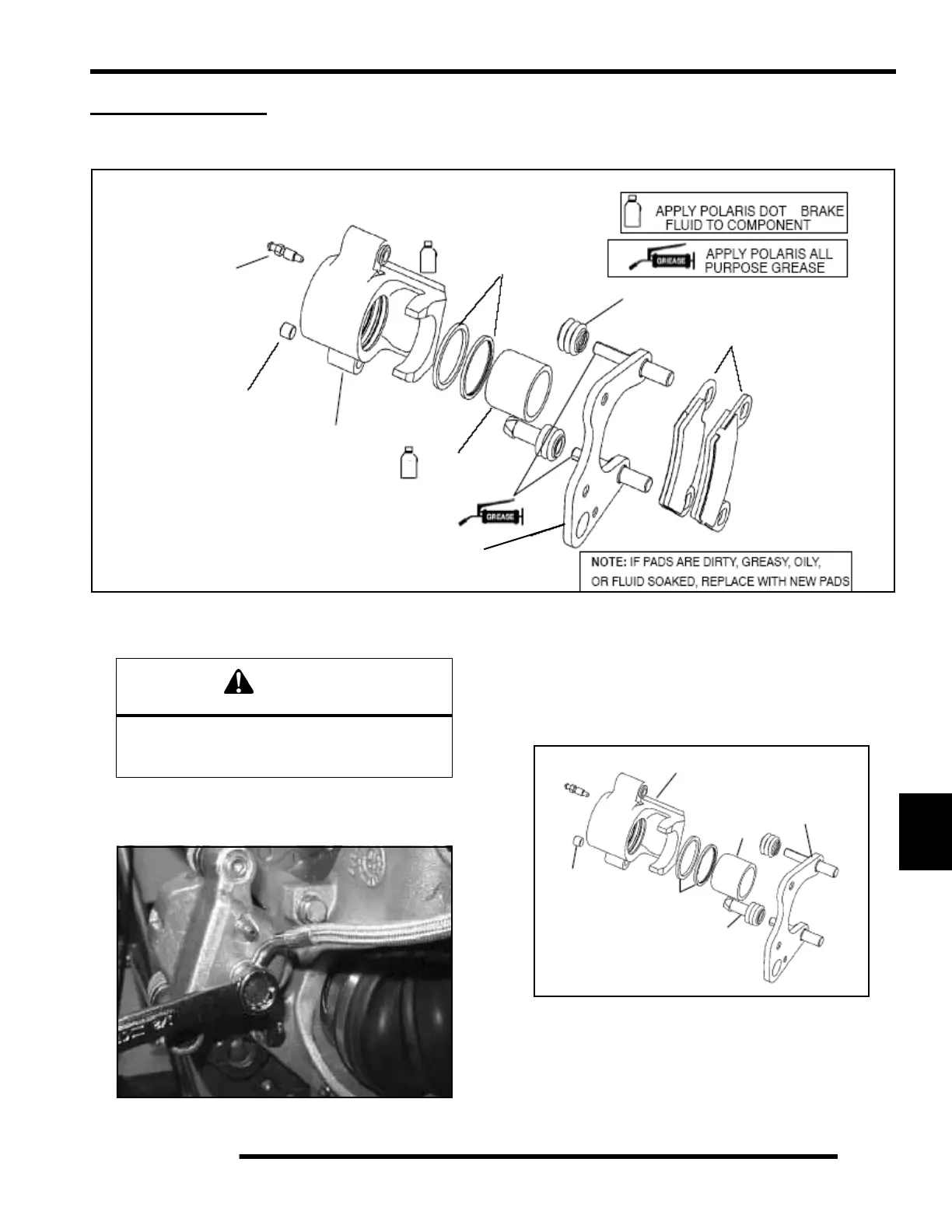

Front Caliper Exploded View
Caliper Removal
1. Elevate and support front of machine.
2. Remove the front wheel.
3. Remove brake line from the caliper. Place a container under
caliper to catch fluid draining from brake line.
4. Remove brake caliper mounting bolts and caliper.
Caliper Disassembly
1. Remove brake pad adjuster screw (A).
2. Push upper pad retainer pin inward and slip brake pads past
edge, if pads are still installed.
3. Remove mounting bracket (B) and dust boot (C)
Bleeder Screw
30-60 in. lbs.
(3.4-6.8 Nm)
Adjuster Screw
(Finger Tight)
Caliper Body
Piston
Caliper Mount
Pads
Dust Boots
Square O-rings
FRONT CALIPER EXPLODED VIEW
DURING ASSEMBLY
4
4
4
4
CAUTION
Use care when supporting vehicle so that it does
not tip or fall. Severe injury may occur
if machine tips or falls.
A
B
C
D
E
F
Figure 9.15
