FINAL DRIVE
7
5. Inspect the rollers for nics and scratches. The rollers must
slide up and down and in and out freely within the roll cage
sliding surfaces.

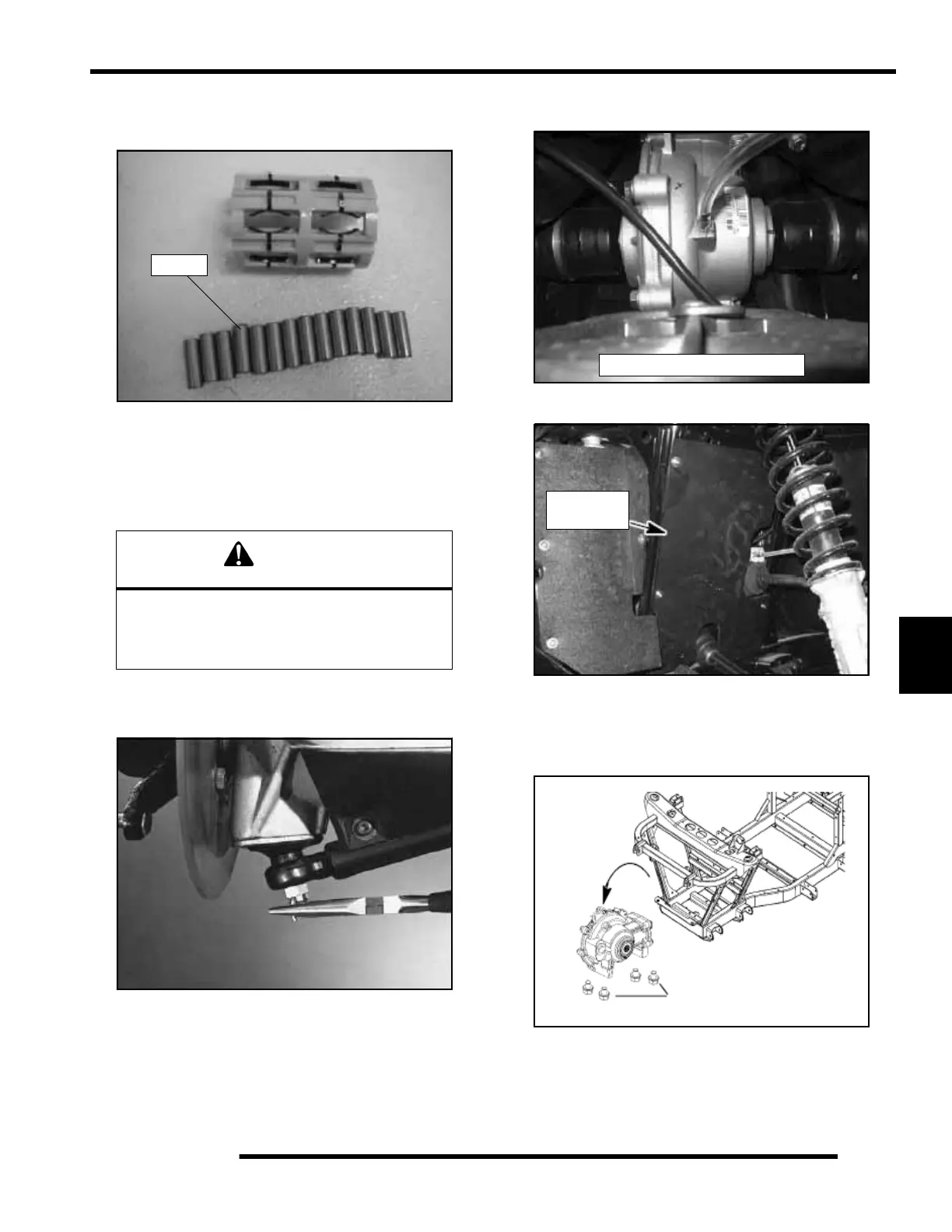

Gearcase Removal
1. Stop engine, place machine in gear and set parking brake.
2. Loosen right front wheel nuts slightly.
3. Elevate and support machine under footrest/frame area.
4. Remove right wheel nuts and wheel.
5. Remove cotter pin, lower ball joint nut, and A-arm from
ball joint.
6. Repeat Step 1 through Step 5 on the opposite side.
7. Pull each axle out from the front gearcase, refer to the
"FRONT DRIVE SHAFT REMOVAL" procedure earlier
in this chapter.
8. The front gearcase and drive shafts can be accessed from
both sides of the vehicle and limited access from the top.
9. Remove the access panel on the side of the vehicle. T-25
screws secure the panel to the frame.
10. Remove the roll pin from the front drive shaft.Remove the
front drive shaft from the front gearcase splines.
11. Remove bolts securing bottom of gearcase to frame.
Remove vent line. Remove gearcase from right side of
frame.
CAUTION
Serious injury may result if machine tips or falls.
Be sure machine is secure before beginning this
service procedure. Wear eye protection when
removing and installing bearings and seals.
Rollers
Top View - From under hood
Left
Side Panel
Remove 4 Bolts
To Next Page
