6.20
CLUTCHING
3. Separate the two clutch sheaves.
4. Inspect the helix and inner spring retainer on the moveable
sheave.
5. Remove the inner spring retainer from the inner sheave.
Inspect for wear and replace as needed.
6. Check the rollers in the stationary sheave for wear. If the
rollers are worn, a new driven clutch assembly may be
needed.
7. Inspect the bearings inside the moveable sheave.
8. Inspect the Teflon™ coating on the moveable sheave
bearings.
9. Inspect driven clutch sheave faces for wear or damage.
10. Clean and inspect splines on helix and transmission input
shaft.
11. Lube splines with a light film of grease. Do not lubricate
the bearings!

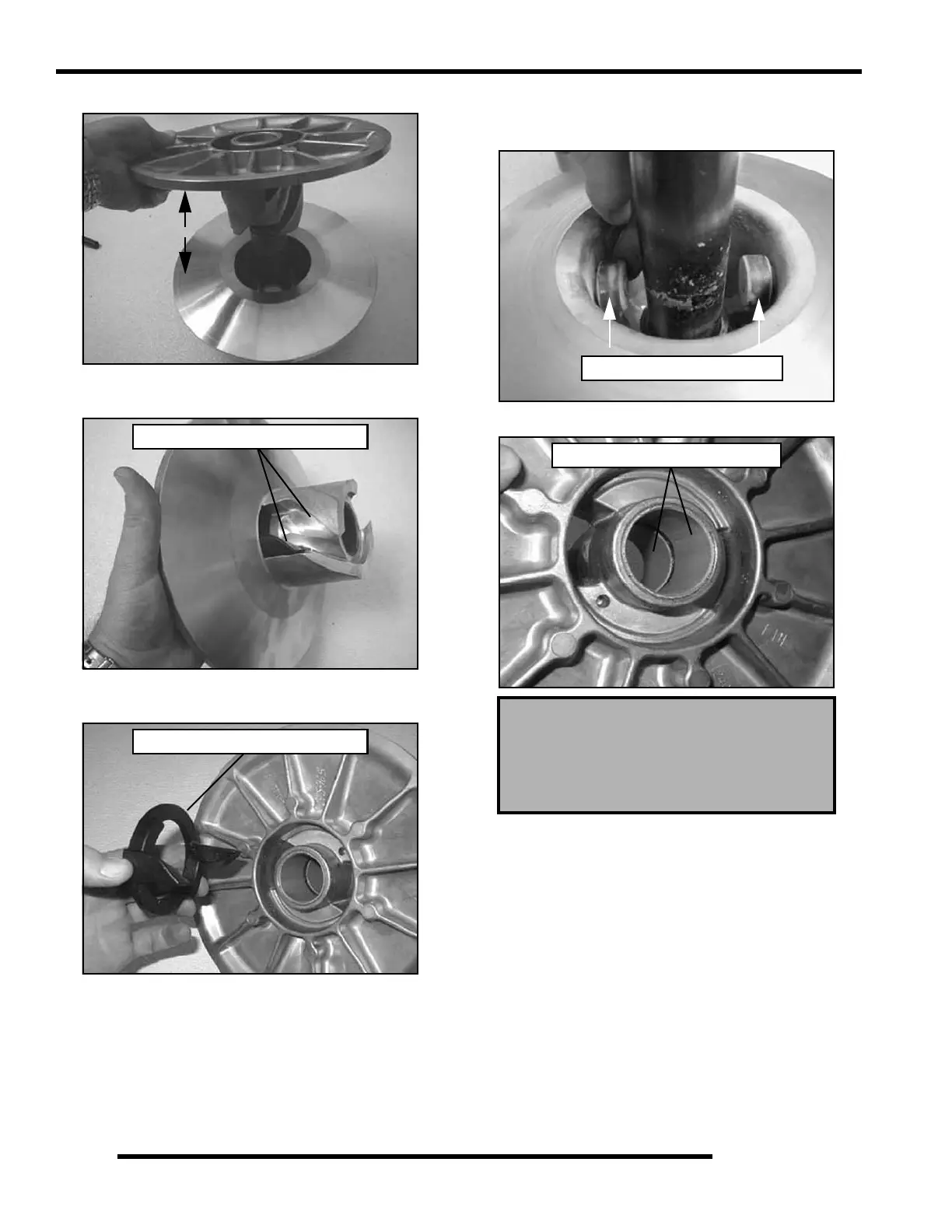

Inspect For Abnormal Wear
Inspect For Abnormal Wear
Moveable Sheave Bearing Inspection:
Replace the bearing if more brass than
Teflon™ is visible on the bearing.
Check Rollers for Wear
Inspect Bearings For Wear
