3.4
ENGINE

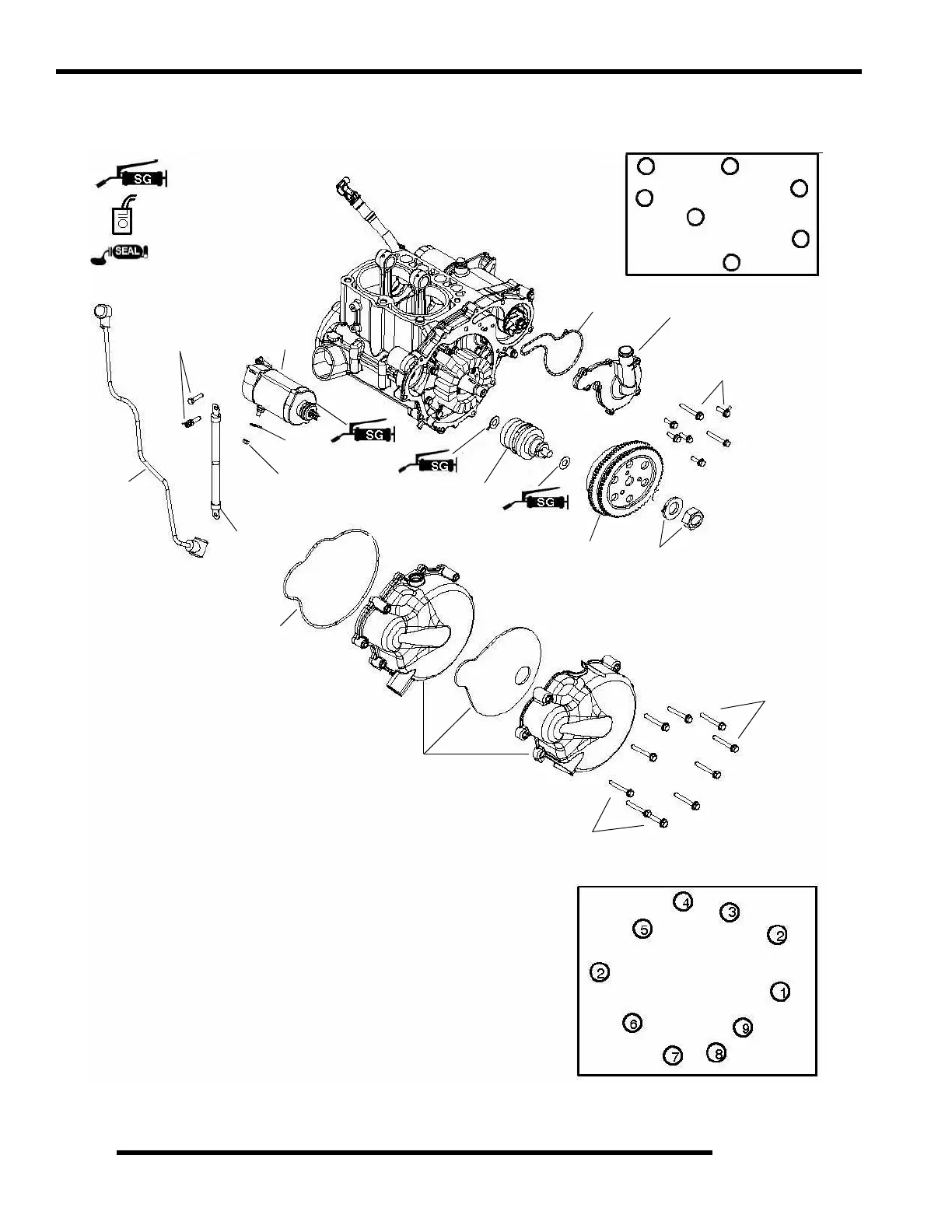

Stator Cover / Starter / Water Pump Exploded View
A. Bolts
B. Starter
C. Washer
D. Nut
E. Positive Cable
F. Negative Cable
G. Gasket
H. Clamp
I. Bolts
J. Gasket
K. W ater P u m p C o v e r
L. Bolts
M. C rank Nu t / Washer
N. Flywheel
Apply Polaris
Starter Grease
Apply Polaris 0W-40
oil to seal
Loctite Pipe Sealant
(PN 2871956)
A
1st
2nd
Tighten Top Bolt First
84  8 ft.lbs. (9.5 0.9 Nm)
No Grease or Oil
B
C
D
E
F
G
H
I
J
K
L
M
N
O
108  12 ft.lbs.
(12  1.35 Nm)
96  12 in. lbs. (10.85  1.35 Nm)
65  7 ft. lbs.
(88  9.5 Nm)
96  12 in. lbs.
(10.85  1.35 Nm)
Water Pump Cover
Bolt Tighten Sequence
Stator Cover Bolt
Tighten Sequence
2
1
3
4
5
6
7
