5 Operating the PDV
5.8 Battery Level Indicator
The battery level indicator is shown on the right of the PDV display next to the
overrange indicator (refer to
FIGURE 5.5).

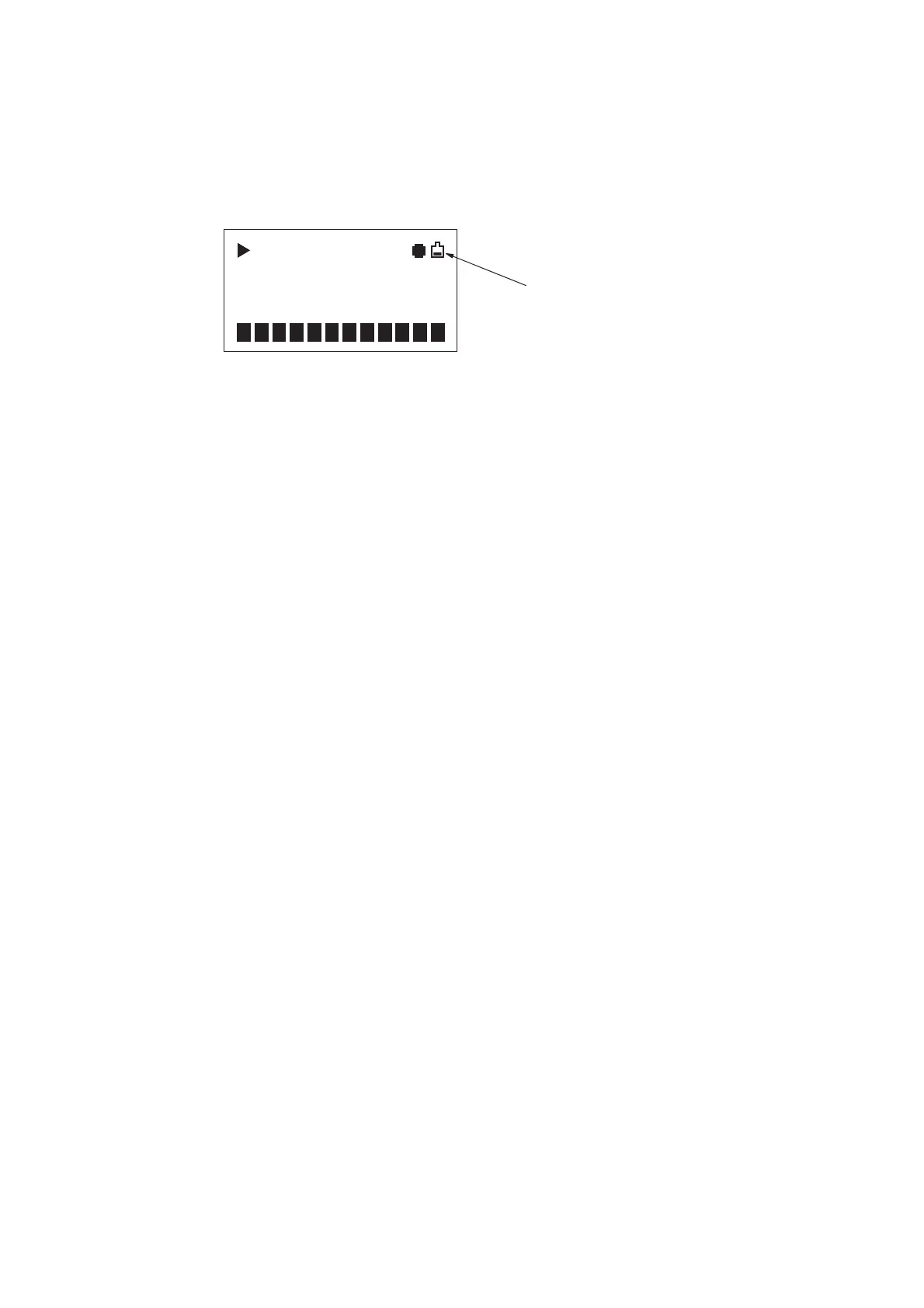

Figure 5.5: Display with battery level indicator
If the battery level indicator is lit up continuously, it means that the battery is
very low. From now you have got approximately another 15 minutes operating
time available. You will find information on lithium ion battery safety in
SECTION 1.4. You will find further information on the battery and on charging
the battery in
APPENDIX A.
5.9 Measurement Signal Output
Analog The measurement signal is available at the BNC jack ANALOG OUT on the
back of the PDV as an analog voltage signal.
Digital The measurement signal is available at the Triax jack DIGITAL OUT on the
back of the PDV as a digital signal in S/P-DIF format.
