3 First Steps
View from the
bottom

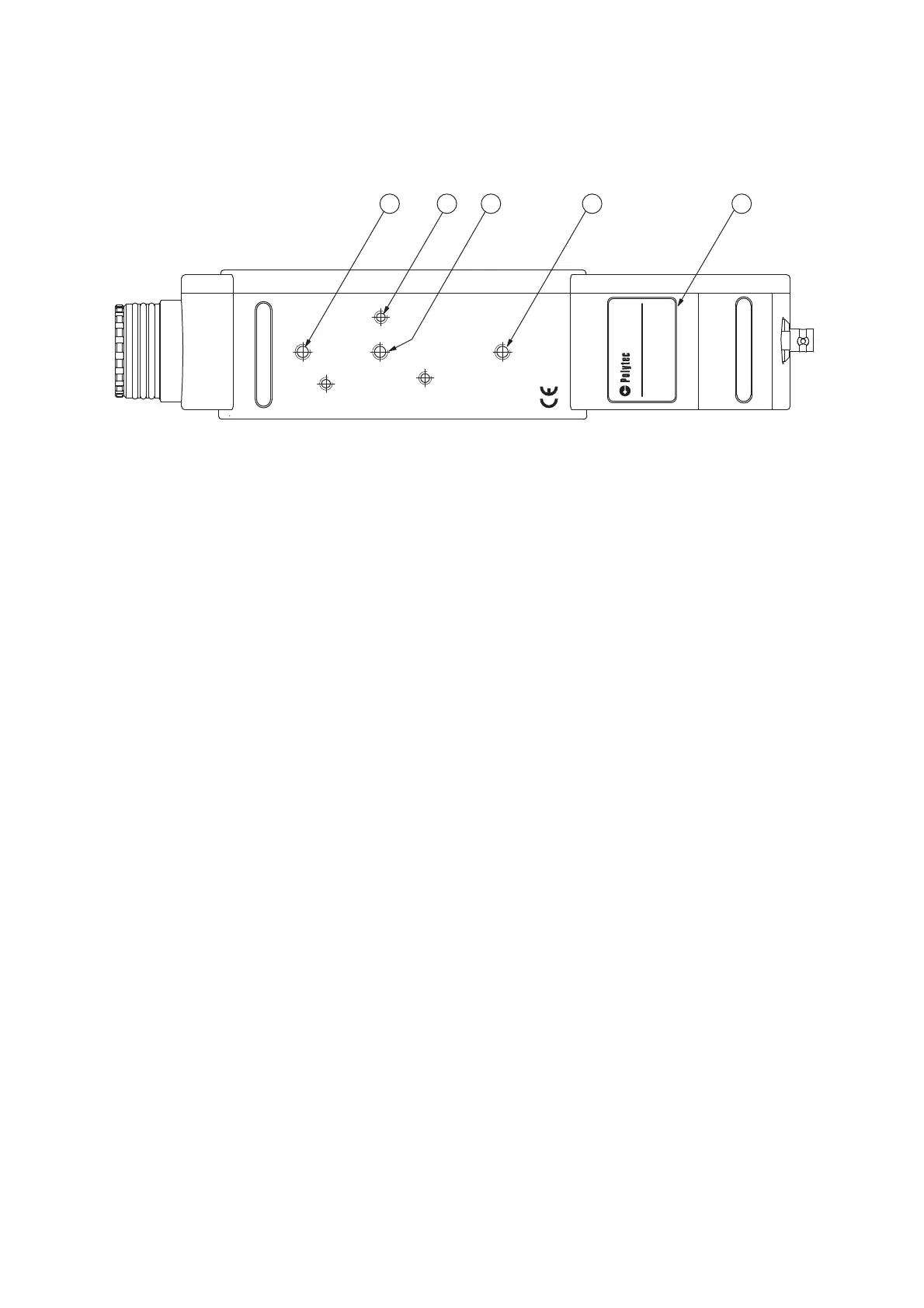

The view from the bottom of the PDV with its control elements is shown in
FIGURE
3.3.
Figure 3.3: View from the bottom of the PDV
1
Mounting holes
M6
Using these two mounting holes, the PDV can be mounted on cooling metal
surfaces.
2
Three mounting holes
M5
for optional tripod VIB-A-T02
Here the quick release plate of the optional tripod will be fixed (refer to
SECTION
3.4.1).
3
Mounting hole
1/ 4’’-20UNC
By using this mounting hole, the PDV can be mounted on camera tripods with an
inch thread, e.g. the optional tripod with 3-axes head VIB-A-T01.
4 Identification label
On the identification label you will find, among other things, the serial number of
the instrument.
3.4 Installation
3.4.1 Assembly
The PDV has serval threaded holes on the underside to mount the laser
vibrometer:
•
Two mounting holes M6 for assembly on cooling surfaces (if necessary)
•
One mounting hole 1/4" for assembly on a camera tripod, e.g. the
optional tripod with 3-axes head VIB-A-T01
•
Three mounting holes M5 for assembly onto the optional tripod with fluid
stage VIB-A-T02
Before you attempting to mount the PDV, check that all locking mechanisms
of the tripod, particularly the screws are tight. Loose screws may cause the
tripod to be unstable and possibly collapse.
M 6
1 / 4 " - 2 0 U N C
M 6
M a n u f a c t u r e d b y :
D - 7 6 3 3 7 W a l d b r o n n , G e r m a n y
G m b H
M o d e l N o . : P D V 1 0 0 x x x x
S e r i a l N o . : 5 0 0 x
M f g . - D a t e : 0 3 . 2 0 0 1
1 2 3 1 4
