8. To reinstall the lamp assembly, align the tapered
pin on the bottom of the lamp with the plastic
socket on the fender bracket. Push down until the
pin snaps into the socket.
9. Reinstall the two screws that were removed in
Step 2.
Taillamps, Stoplamps and Back-up
Lamps
1. Open the liftgate and the tailgate.

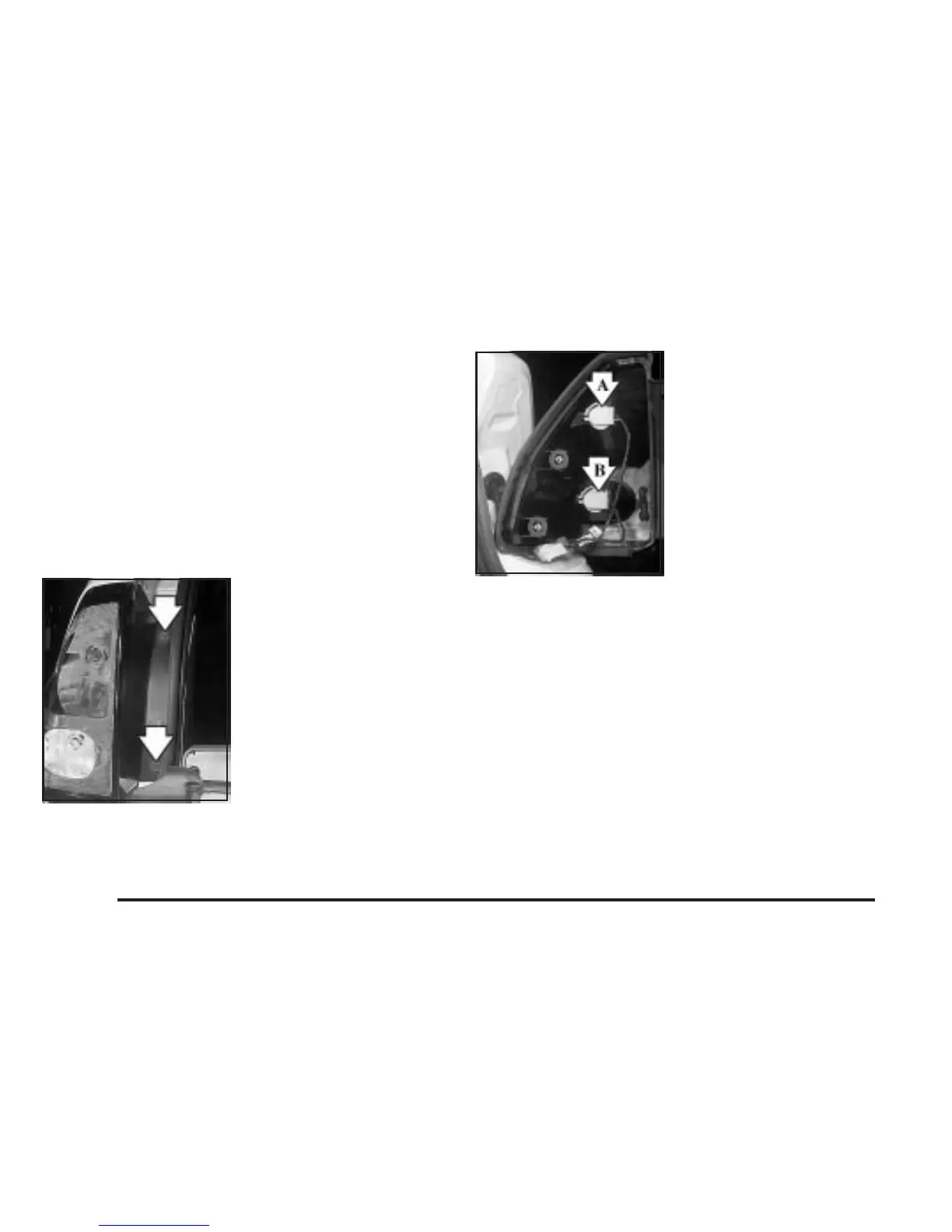

2. Remove the two
screws from the
taillamp housing.
3. Turn the lamp outboard, then pull the assembly
firmly rearward.
A. Stop/Taillamps
B. Back-up Lamps
4. Unscrew the bulb socket from the lamp assembly
by pressing the tab while turning the bulb socket
counterclockwise.
5. Replace the bulb by pulling the old one out and
gently pushing the new one into the bulb socket.
6. Line up the tabs on the bulb socket with the gaps in
the socket holes and screw the bulb socket back
into the lamp housing. You will hear a click.
7. To reinstall, align the pins on the back of the lamp
with the sockets on the outboard side of the lamp
opening.
8. Push forward until the pins snap into the socket.
9. Reinstall the screws removed in Step 2.
5-48
