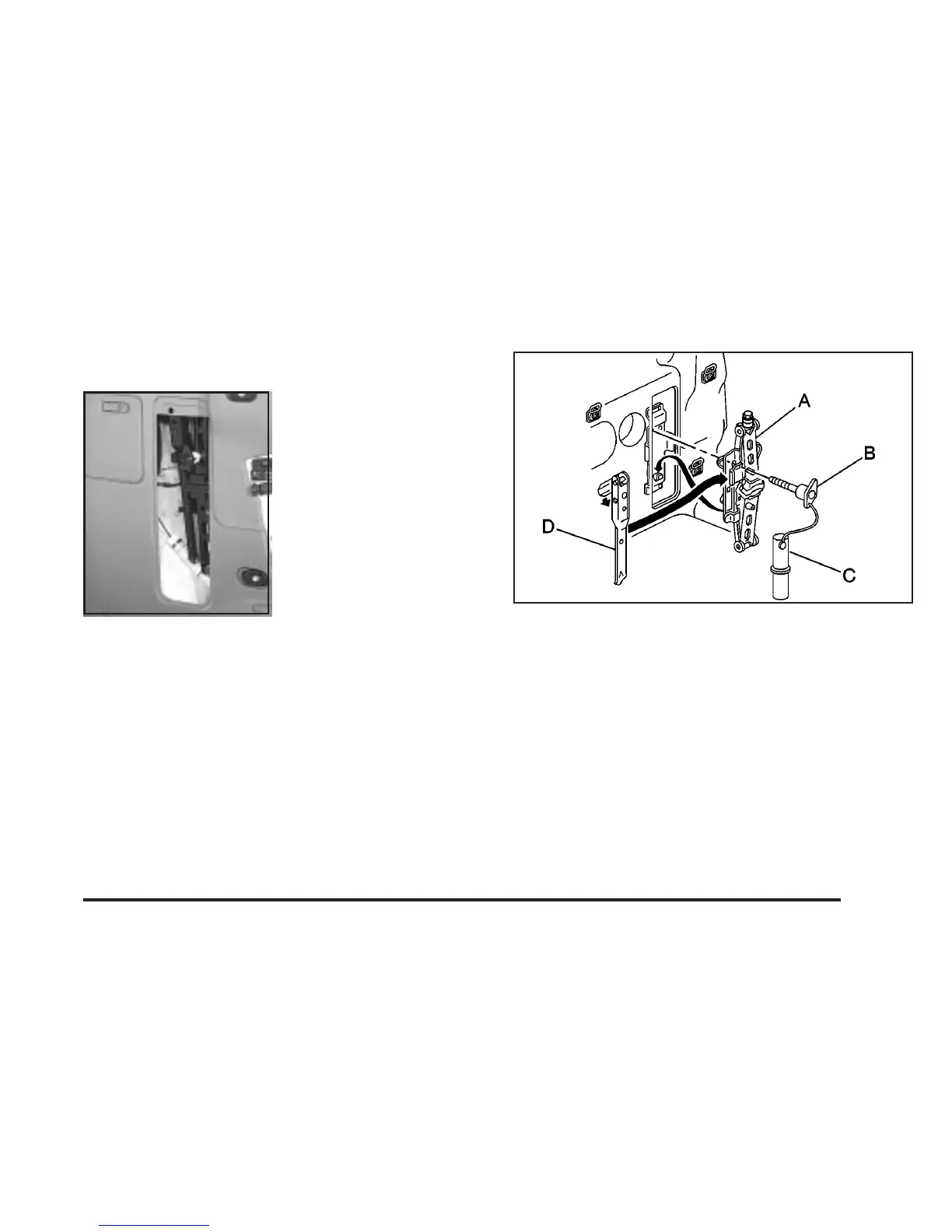

Removing the Spare Tire and Tools
The equipment you’ll need
is located in the storage
compartment at the rear of
the vehicle, on the
passenger’s side.
1. Remove the side convenience net.
2. Open the jack storage compartment by lifting up the
tab and pulling the cover off.
A. Jack
B. Wing Bolt
C. Jacking Instructions
D. Folding Wrench
3. Remove the jack and jacking tools by turning the
wing bolt counterclockwise. Slightly lift up the jack
from the bracket tab and then take it out of the
storage compartment.
4. Separate the jack and remove the folding wrench
from the jack.
5-63
