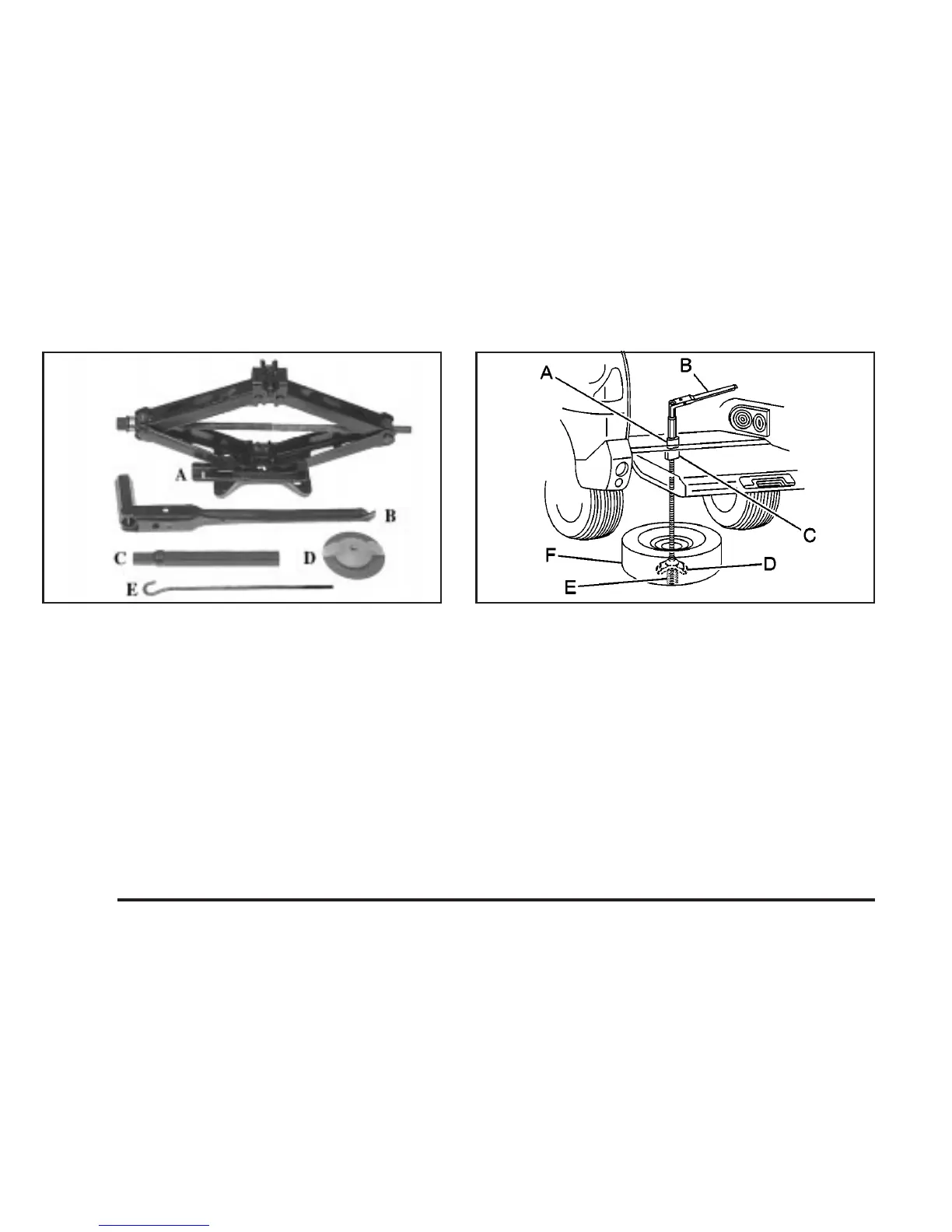

The tools you’ll be using include the jack (A), folding
wrench (B), extension tube (C), wing nut (D), and
J-Hook (E).
Removing the Spare Tire (Vehicles without
the Sliding Rear Convenience Tray)
The compact spare tire is located under the vehicle,
ahead of the rear bumper. Use the spare tire hoist
to raise, lower and store the compact spare. See
Compact Spare Tire on page 5-82
for more information
about the compact spare.
A. Hoist Shaft
B. Folding Wrench
C. Hoist Assembly
D. Retainer
E. Spring
F. Compact
Spare Tire
1. Flip the rear cargo area carpet cut out, to expose
the hoist shaft.
2. Attach the folding wrench into the hoist shaft.
3. Turn the folding wrench counterclockwise to lower
the compact spare tire to the ground. Continue
turning the wrench until the spare tire can be pulled
out from under the vehicle.
5-64
