Fuse Usage
32 Not Used
34 Power Sunroof
35 Power Windows
36
Map Lamps, Courtesy Lamps and
Instrument Panel Lights
37 Radio
38 UQ3 Radio Amplifier
39 Head-Up Display
40 Hazard Flashers
41
Instrument Panel Cluster, HVAC
Control, Security LED and Remote
Keyless Entry Module
42 PASS-Key
®
III
43 Accessory Diode
44 Body Control Module (BCM)
Relay Usage
20 Rear Defogger Relay
23 IGN3 Relay
27 Accessory Relay
33 Retained Accessory Power Relay
45 Back-Up Lamps

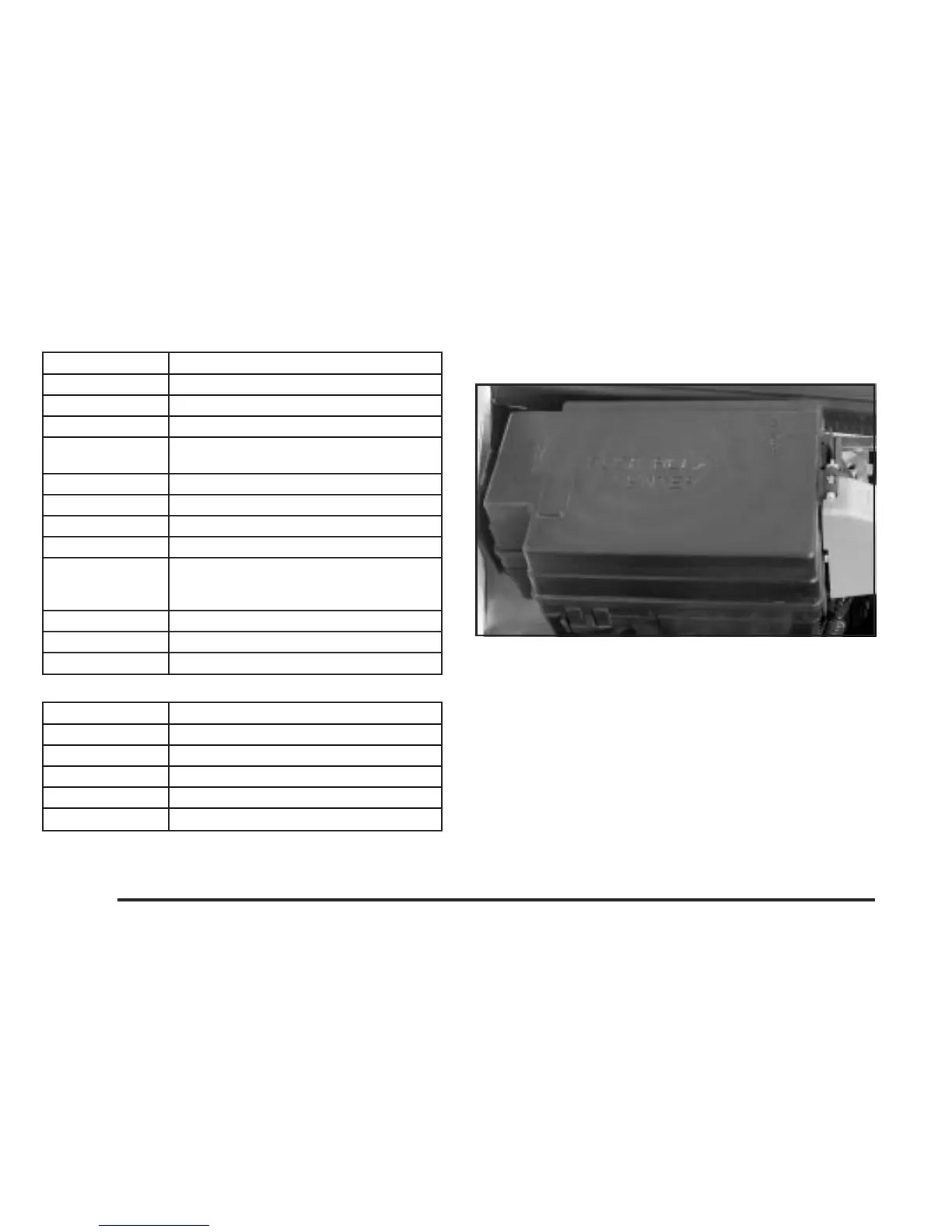

Underhood Fuse Block
This fuse block is located in the engine compartment,
on top of the windshield washer fluid reservoir.
See
Engine Compartment Overview on page 5-10
for
more information on location.
The fuses marked spare are available if a replacement
fuse is needed.
To remove the cover, press the two tabs in and lift up
the cover.
5-94
