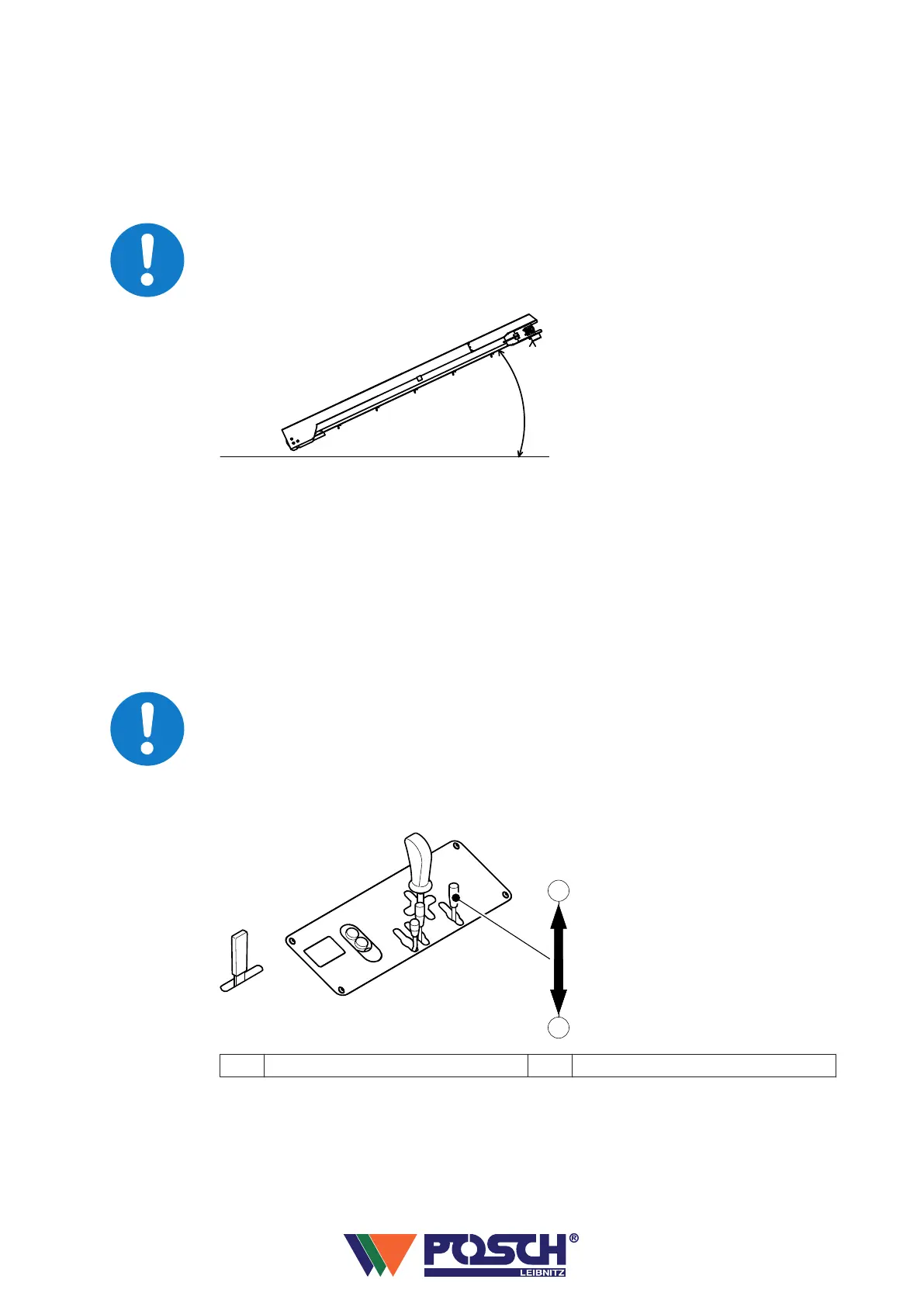

Setting the conveyor belt angle:
▪ Crank the conveyor belt to the desired height using the rope winch.
▪ Mount the chain on both sides in this position.
– The smallest angle is achieved with the whole chain length.
– A steeper angle can be achieved by attaching the chain shorter on the fixing hook.
Ensure that the chain is correctly attached to the fixing hook.
Never hook the chain onto the point of the hook.
▪ Release the rope again so that it is slack.
The angle of the conveyor belt may not exceed 35° or it will be destroyed during splitting.
Transport position:
▪ Proceed as above but in the reverse order.
Connection - conveyor belt
▪ Connect the hydraulic hoses of the conveyor belt to the machine.
– Connect the hydraulic hoses to the hydraulic sleeves. Ensure that colours match;
blue dust caps (flow) and yellow dust caps (return) go with one another.
If the conveyor belt is not connected, the dust caps must be put on the connectors and
sleeves to protect them from dust and dirt.
Operation - conveyor belt
1 Conveyor belt - forwards 2 Conveyor belt - return
▪ Switch on the conveyor belt using the control lever (conveyor belt on).
11.1.3
11.1.4
Special equipment
43
