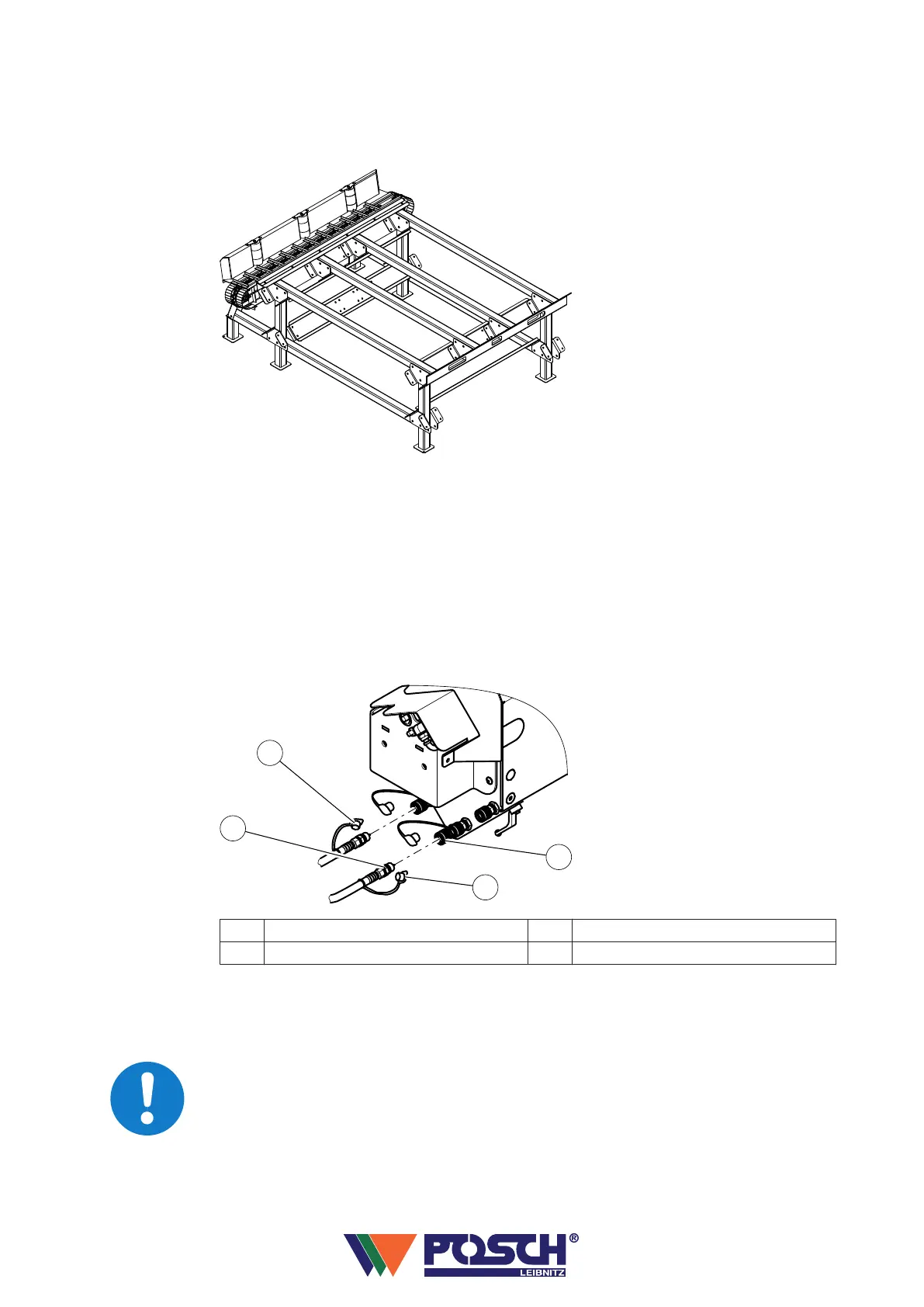

Transverse feeder
The logs are laid on the cross conveyor and fed hydraulically to the longitudinal or roller
conveyor.
Setting up the cross conveyor
▪ Position the cross conveyor so it is aligned with the longitudinal or roller conveyor.
Connection - transverse feeder
1 Hydraulic connector 3 Dust cap - blue
2 Hydraulic sleeve 4 Dust cap - yellow
▪ Connect the hydraulic hoses of the transverse feeder to the machine.
– Connect the hydraulic connectors to the hydraulic sleeves. Ensure that colours
match; blue dust caps (flow) and yellow dust caps (return) go with one another.
If the transverse feeder is not connected, the dust caps must be put on the connectors and
sleeves to protect the latter from dust and dirt.
Ensure that the chain is always adequately tensioned.
12.6
12.6.1
12.6.2
Additional equipment
61
