Special equipment
Conveyor belt
Conveyor belt types
Conveyor belt type Conveyor belt length Conveyor height Belt width
F15 150 cm 100 cm 30 cm
KF4 400 cm 250 cm 30 cm
KF5 500 cm 300 cm 30 cm
Set up conveyor belt

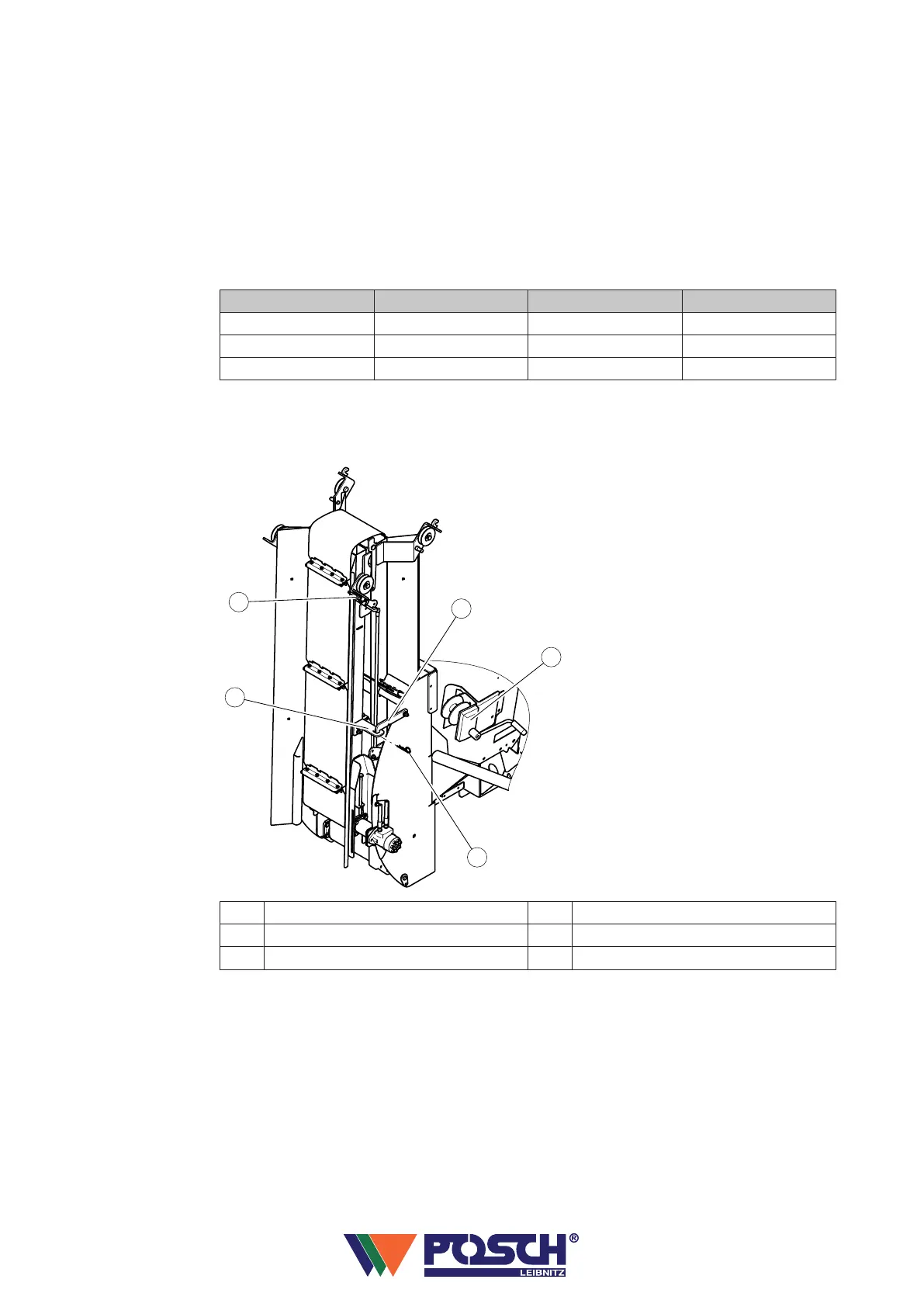

1 Spring cotter 4 Tab
2 Rope winch 5 Eccentric lock
3 Securing hook
Working position:
▪ Pull out the spring pin.
▪ Gently tension the rope winch, so that the securing hook can be pulled out of the tab.
▪ Fold out the conveyor belt completely using the rope winch, until the rope becomes slack
and the conveyor belt is stretched out.
▪ Use the cam-type closure to secure the upper and lower parts of the conveyor belt.
