7.3.1 Hinged window with rotary hinges
Opening: Turn the catch lever (Fig. 10,3) a quarter turn towards the centre of the
window.
Open the hinged window until the required position has been reached and
secure in position using the knurled knob (Fig. 11,1).
The hinged window remains locked in the required position.
Closing:
Turn the knurled knob (Fig. 11,1) until the latch is released.
Close the hinged window.
Turn the catch lever (Fig. 10,3) a quarter turn towards the window frame.
The locking catch (Fig. 10,2) is located on the inside of the window catch
(Fig. 10,1).
Z When leaving the vehicle, always close the windows.
Z In case of strong temperature differences or in extreme weather conditions,
light condensation can form on the double-glazed acrylic glass. The glass
is designed in such a way that condensation can evaporate when the
external temperature increases. There is no danger of the double-glazed
acrylic glass being damaged by condensation.
Z Set all the catch levers mounted on the hinged window to the same position
in order to avoid tensions in the window.
Z When opening the hinged windows, ensure that there are no torsional
forces. Open and close the hinged windows evenly.

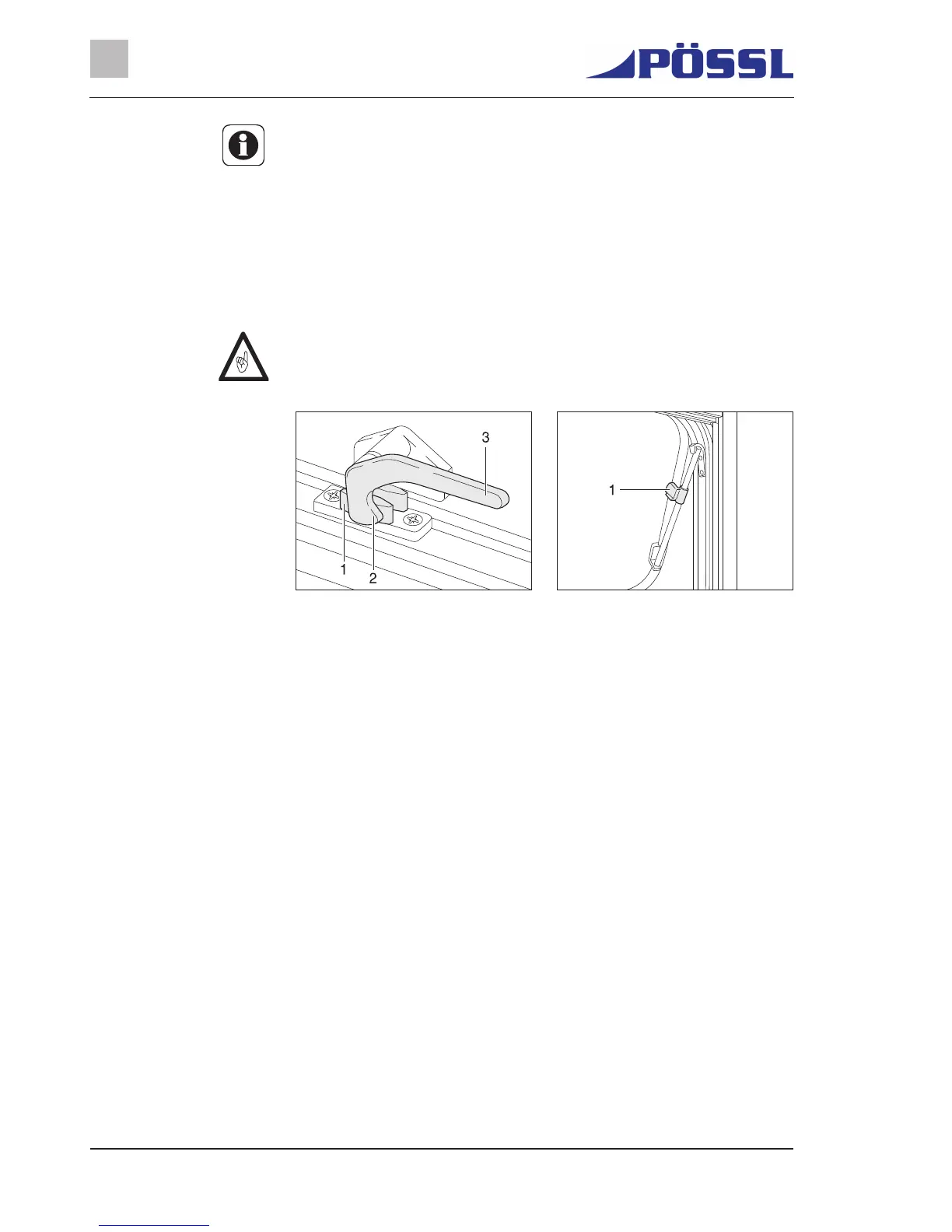

Fig. 10 Catch lever in "closed" position Fig. 11 Hinged window with rotary
hinges, open
