Connecting beds: Lay the middle board between the two beds.
Lay the board (Fig. 51,1) onto the braces above the stairs (Fig. 51,2).
Insert the additional cushions (Fig. 50,1, 2 and 3).
7.9.2 Bed in the pop-up roof
Opening: Loosen the safeguards (Fig. 52,2).
Press the locking mechanisms at the handles (Fig. 52,1) of the pop-up roof.
Use both hands to push the pop-up roof upwards.
Closing:
Open the doors of the vehicle.
Close the elastic bands in the pop-up roof so that the cloth bellows
(Fig. 53,2) are not clamped in.
Use the pulling devices (Fig. 53,1) to pull the pop-up roof downwards.
Pull the pop-up roof closed at the handles (Fig. 52,1) until the locking
mechanism latches in audibly.
X The maximum load for the bed in the pop-up roof amounts to 200 kg.
X Fold in the pop-up roof before commencing the journey.
X Only use the bed in the pop-up roof if the safety guards are in position.
X Never leave small children without supervision.
X Ensure in particular with regard to small children less than 6 years of
age, that they cannot fall out of the bed.
X Switch off the reading lamps in the pop-up roof when it is folded in. Fire
hazard!
Z Mount the safety guard when the persons are already in the pop-up roof.

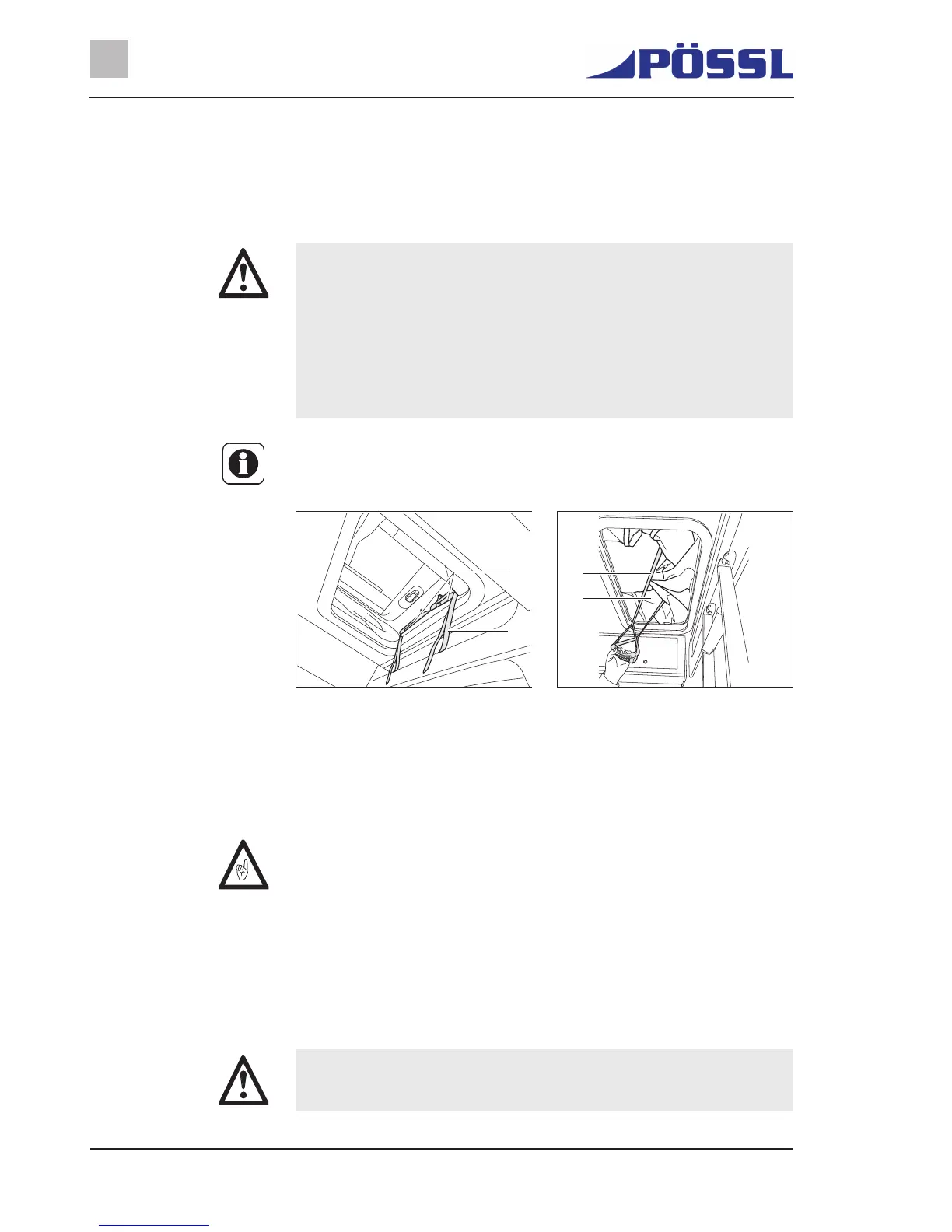

Fig. 52 Opening the pop-up roof Fig. 53 Closing the pop-up roof
1
2
1
2
Z Before closing the pop-up roof open the doors of the vehicle. Material
damage may otherwise occur through excess pressure.
X The locking mechanism of the pop-up roof must latch audibly into place.
