9.6.3 230 V fuse
The 230 V connection is protected by a two-pole automatic circuit breaker
(Fig. 79,1).
Location The automatic circuit breaker is in the wardrobe or under a cover in the rear
area (under the slatted frame), depending on the model.
Function Value/colour
Fuses at the
transformer/rectifier
EBL 99
Internal charger module 20 A yellow
Compressor refrigerator/AES refrigerator 20 A yellow
Heater 10 A red
Basic light/entrance step electrical 25 A white
Reserve 4 –
Reserve 3 –
Reserve 2 –
Reserve 1 15 A blue
Solar 15 A blue
Reserve 5 –
Reserve 6 –
Auxiliary charging unit 20 A yellow
Circuit 1 10 A red
Circuit 2 10 A red
TV 10 A red
Water pump 5 A beige
Z The 230 V automatic circuit breaker is always mounted near the 230 V con-
nection.

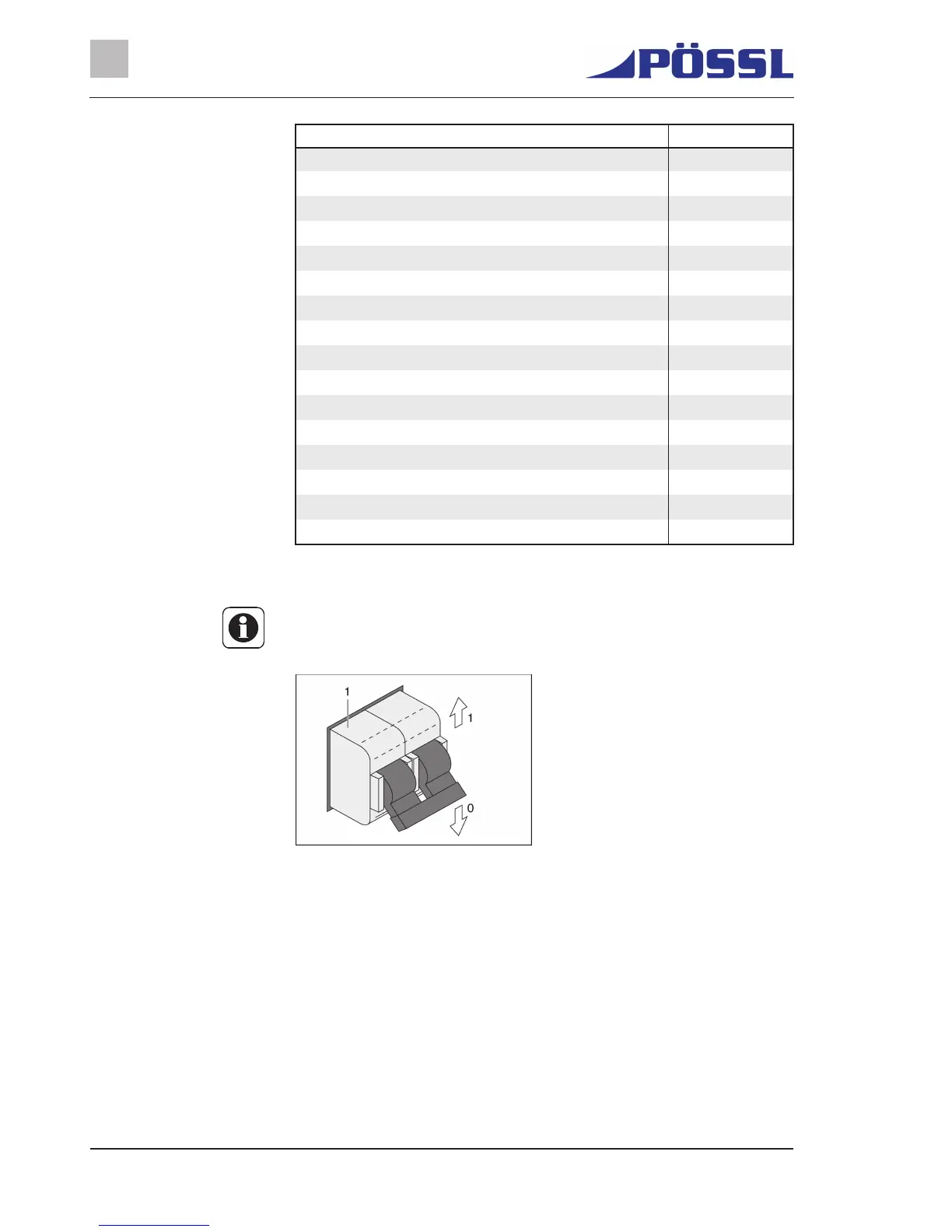

Fig. 79 230 V automatic circuit breaker
