7.4.1 Skylight with snap latch
The skylight can be pushed upwards either from one side or from both sides.
Opening:
 Pull down the insect screen (Fig. 21,2) with the handle (Fig. 21,1). The
insect screen folds down.
 Push the skylight upwards using both handles (Fig. 21,3).
 Fold the insect screen upward and latch it in at the frame (Fig. 21,4).
Closing:  Pull down the insect screen (Fig. 21,2) with the handle (Fig. 21,1). The
insect screen folds down.
 Pull the skylight downwards with force using both handles (Fig. 21,3).
 Fold the insect screen upward and latch it in at the frame (Fig. 21,4).
7.4.2 Hinged skylight
The hinged skylight is opened on one side only.
Opening:
 Press the safety knob (Fig. 22,2) and pull the bar (Fig. 22,1) down with both
hands.
 Pull the bar (Fig. 23,1) in the guides (Fig. 23,2) to the rearmost position
(Fig. 23,3).

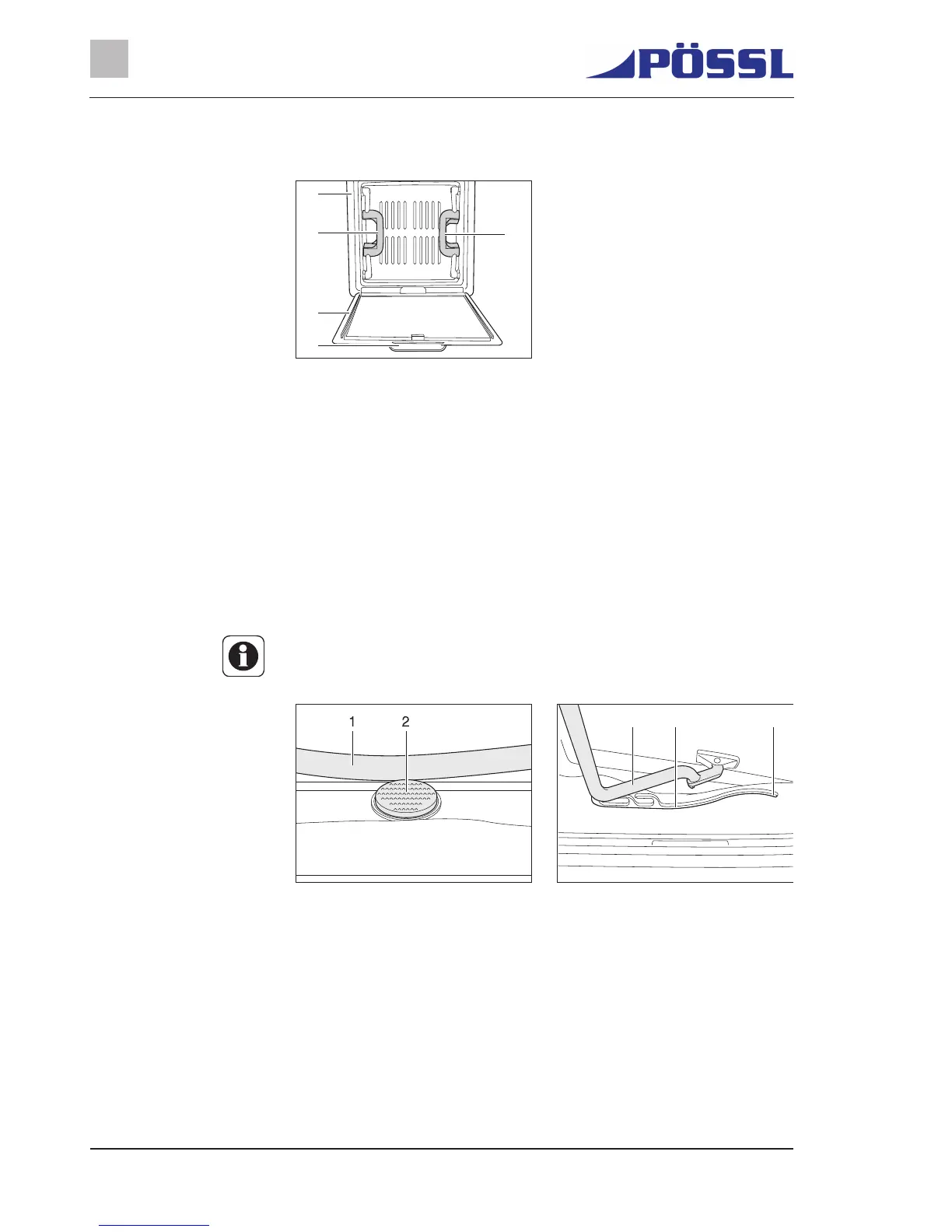

Fig. 21 Skylight with snap latch
1
4
3
2
3
Z If it rains, the ventilation skylight position could lead to water entering the
living area. Therefore close hinged skylight completely.
Fig. 22 Securing knob at the hinged
skylight
Fig. 23 Hinged skylight, guide
1 2 3
