7.10.4 Front seating group with extension
Variant 1 (extra bed):  Extend the table (Fig. 62,3) and convert it into a bed foundation (see Sec-
tion 7.7).
 Place the bed extension (Fig. 63,5) for the extra bed onto the table-top
extension (Fig. 63,4).
 Place the additional cushion (Fig. 65,6) on the table and the bed extension.
Variant 2 (spare bed):
 Turn the driver's seat (Fig. 64,7) and push it all the way forward.
 Extend the table (Fig. 64,3) and convert it into a bed foundation (see
Section 7.7).
 Reposition the back cushion (Fig. 64,1).
 Place the seat cushion (Fig. 66,2) between the back cushion (Fig. 66,1)
and the driver's seat (Fig. 66,7).

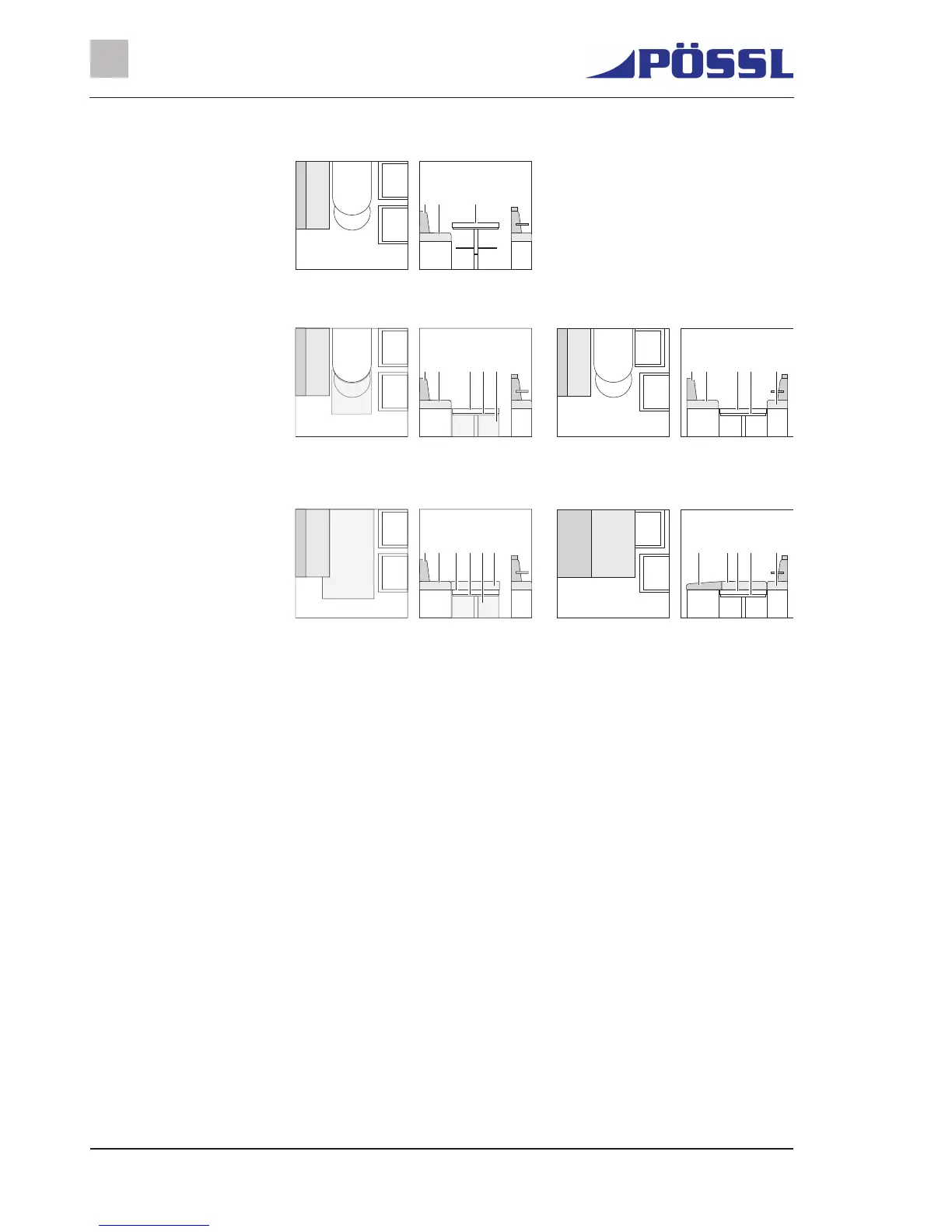

Fig. 62 Prior to conversion
1 Back cushion
2 Seat cushion
3 Table
4 Table-top extension
5 Bed extension
6 Additional cushion
7 Driver's seat
Fig. 63 During conversion (extra bed) Fig. 64 During conversion
(spare bed)
Fig. 65 After conversion (extra bed) Fig. 66 After conversion (spare bed)
