7.4.4 Multifunction skylight
The multifunction skylight can be opened in various positions.
Opening: Grip one handle (Fig. 27,3) with one hand respectively and bring the multi-
function skylight into the desired position.
When the multifunction skylight is opened upwards, press the locks
(Fig. 27,2) and slide the multifunction skylight at the handles to the rear.
Blind To close and open the blind:
Closing: Press the red release knobs at the handle (Fig. 27,1) together and pull the
blind to the desired position using the handle.
Release the handle. The blind will stay in that position.
Opening: Press the red release knobs at the handle (Fig. 27,1) together. The latch is
released.
Use handle to return the blind slowly to its initial position.
Z Do not stand on the acrylic glass of the multifunction skylight.
Z Before commencing the journey, check that the multifunction skylight is
closed and locked.
Z The multifunction skylight is not to be opened or closed during the journey.
Z The multifunction skylight may only be handled with both hands on the
grips.

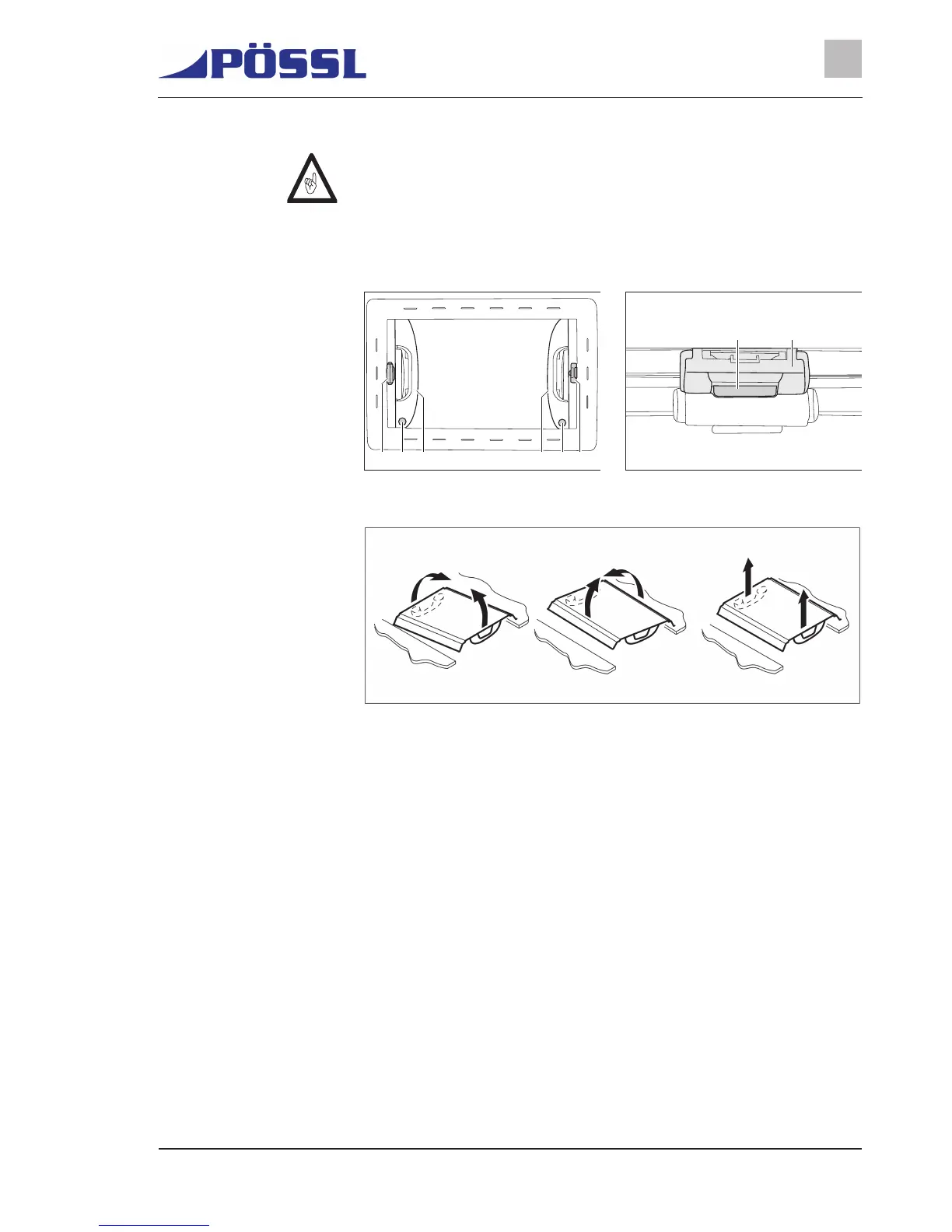

Fig. 27 Multifunction skylight Fig. 28 Multifunction skylight blind
locking mechanism
Fig. 29 Positions of the multifunction skylight
