7.10 Converting seating groups for sleeping
7.10.1 Seating group rear
 Dismantle the table (Fig. 54,3) (see Section 7.7).
 Pull out the slatted frames (Fig. 54,4).
 Fold out the extension (Fig. 55,5) at the slatted frame.
 Pull the seat cushions (Fig. 55,2) to the middle of the slatted frame.
 Insert the back cushions (Fig. 55,1) between the seat cushions and the
exterior wall.
Z When the pop-up roof is being folded in: Ensure that the safety guards and
the cloth bellows are not clamped in.

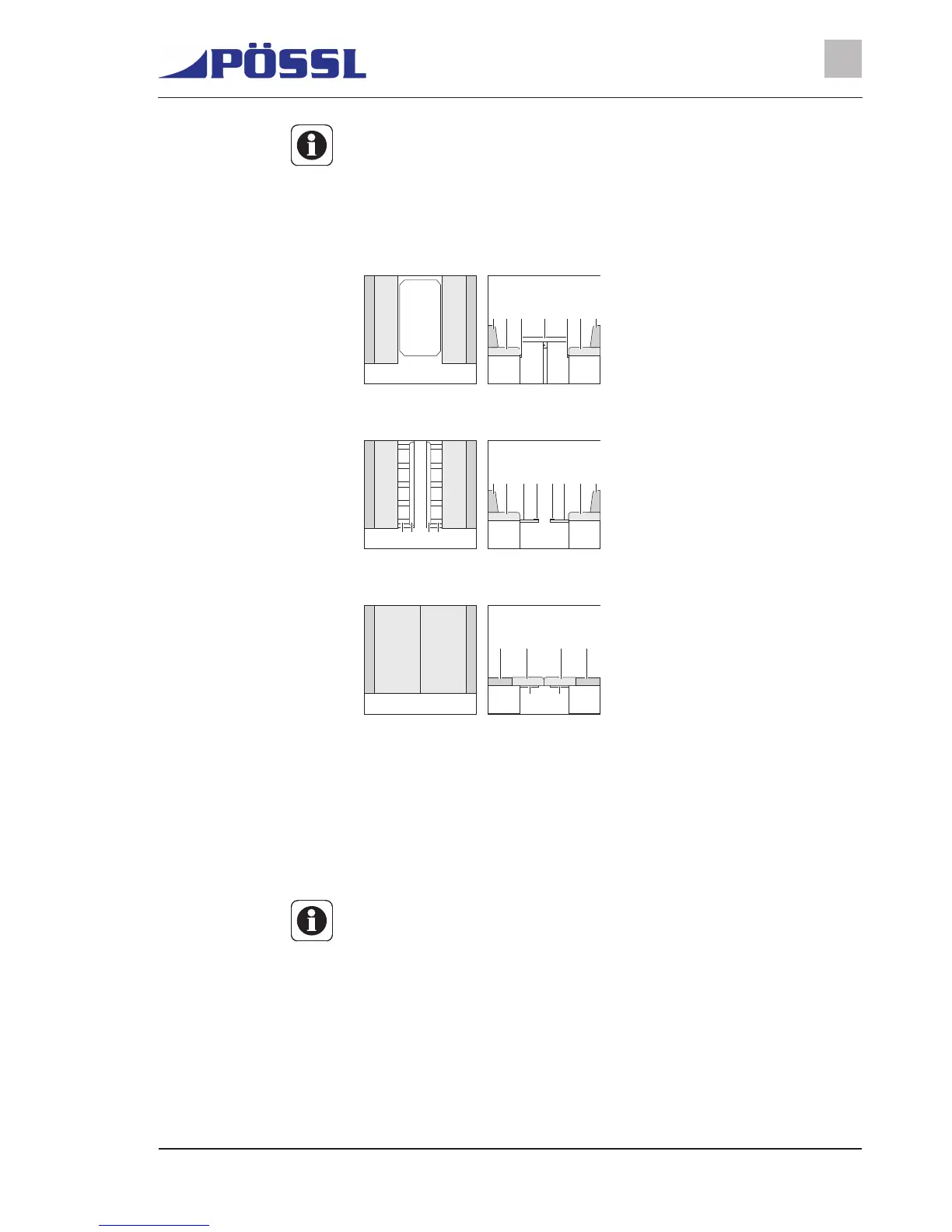

Fig. 54 Prior to conversion
Fig. 55 During conversion
Fig. 56 After conversion
1 Back cushion
2 Seat cushion
3 Table
4 Slatted frame
5 Extension at the slatted frame
1
1 2 13 2
2 4 43 2 1
1
1 2 12
2 4 5 5 4 2 1
4 5 5 4
1 2 12
21 12
4 4
Z The formed cushion parts in the side panels can be removed to extend the
sleeping area.
